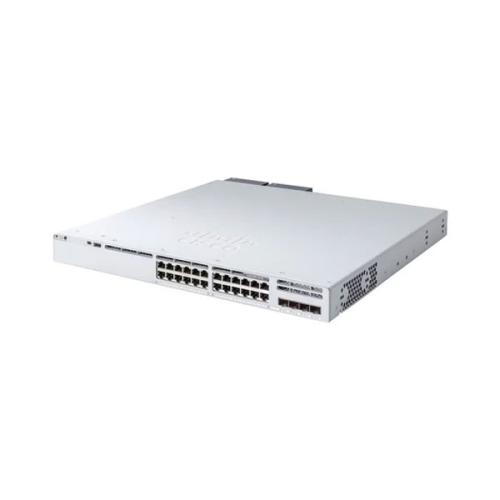

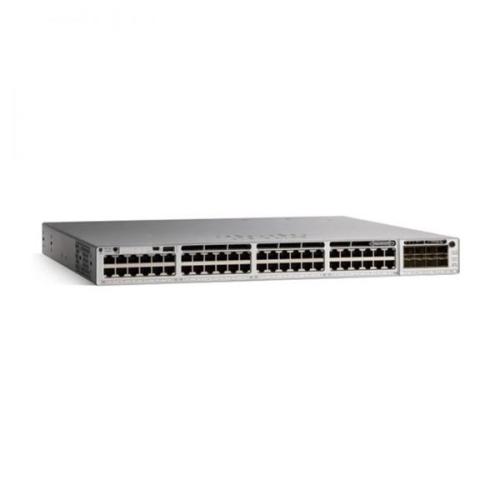

CISCO CATALYST 9300 SERIES SWITCHES
Fast access, fast aggregation
The Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform, and it was recently recognized as CRN's 2017 Overall Network Product of the Year. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco's Software-Defined Access, our leading enterprise architecture.
Features and benefits
Designed for IoT
Get industry-leading scale for converged IoT networking 384 ports of 60W POE, trustworthy security, audio-visual bridging, service discovery, and IoT classification.
Cloud ready
Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
Optimized for mobility
Catalyst 9300 Series access switches give you smart, simple, and highly secure unified access.
Services for proactive network management
Solve problems faster, improve operational efficiency, and reduce the risk of downtime proactively.
CISCO CATALYST 9200 SERIES SWITCHES
Simplicity without compromise
Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, the Catalyst 9200 Series delivers the best-of-breed features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time
Features and benefits
Secure
Our best-in-class security portfolio is anchored by Talos, Trustworthy Solutions, MACsec encryption, and segmentation. Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch.??

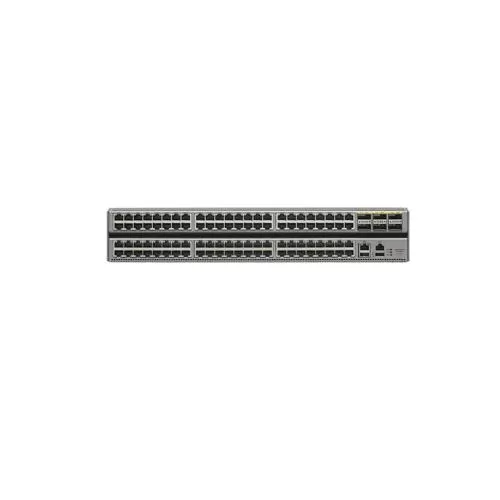

CISCO NEXUS 9000 SERIES SWITCHES
Build a next-generation automated data center
Prepare your data center for growing number of users and complicated applications. Our Nexus 9000 Series data center switches deliver proven high performance and density up to 400G, as well as low latency and exceptional power efficiency in a range of form factors. The switches are highly programmable and offer industry-leading software-defined networking for data center automation.

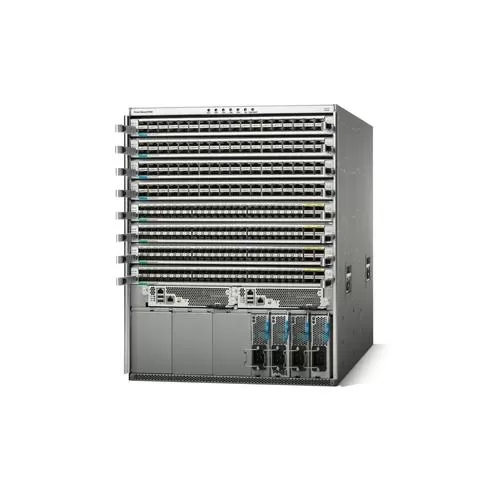

CISCO NEXUS 9500 R SERIES LINE CARDS AND FABRIC MODULES
Product overview
The Cisco Nexus® 9500 R-Series switching platform (Figure 1) offers two modular chassis:
- Cisco Nexus 9500 4-slot switch
- Cisco Nexus 9500 8-slot switch
These chassis support the Cisco Nexus 9500 R-Series line cards and fabric modules. These line cards offer 100-, 40-, 25-, 10-, and 1-Gigabit Ethernet ports with deep buffers and large tables, delivering up to 9.6 Terabits per second (Tbps) per slot, for a total of 76.8-Tbps in the 8-slot chassis.
Cisco Nexus 9500 Platform R-Series line cards
The Cisco Nexus 9500 platform is designed as a Clos fabric that interconnects each line card directly with each rear-mounted fabric module. All traffic between the line cards is load balanced across all fabric modules providing optimal bandwidth distribution within the chassis. This load-balancing capability provides enhanced system reliability and redundancy. The switch continues to operate even in the event of a loss of a fabric module, albeit at a lower capacity, as the remaining fabric modules continue to provide switching capacity to the line cards. Some of these line cards can connect to 1 or 2 additional fabric modules to provide N+1 or N+2 redundancy.
Warranty
The Cisco Nexus 9500 R-Series line cards have a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a Return Materials Authorization (RMA).

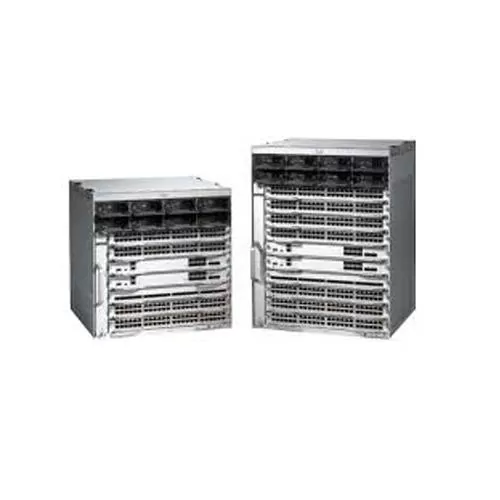

CISCO CATALYST 9400 SERIES SWITCHES
Converge wired and wireless??
The Catalyst 9400 Series is the next generation of the industry's most widely deployed enterprise switching platform, and it was recently recognized as CRN's 2017 Overall Network Product of the Year. These modular access switches are built for security, Internet of Things (IoT), and the cloud. They deliver state-of-the-art high availability, support up to 9 Tbps, and form one of the building blocks for SD-Access, Cisco's leading enterprise architecture.
Defense across the attack continuum
Advanced capabilities of ?Catalyst 9400 switches help protect your organization before, during, and after an attack. Reduce your attack surface with Cisco trustworthy systems and MACsec 256 encryption. Enhance malware detection and rapid threat containment.
Foundational technology
These access switches support high-availability patching, graceful insertion and removal (GIR), and NSF/SSO, as well as redundant, platinum-rated power supplies and fans. They also support advanced routing and infrastructure services.
CISCO CATALYST 9500 SERIES SWITCHES
High-density advanced services in a compact form factor
The Cisco Catalyst 9500 Series is the first 100/40-Gbps switch purpose built for the enterprise campus. It was recently recognized as CRN's 2017 Overall Network Product of the Year. Designed for security, the Internet of Things (IoT), and the cloud, Catalyst 9500 fixed-core switches are high-density building blocks for a next-generation, intent-based network.
Features and benefits
Defense across the attack continuum
The advanced capabilities of Catalyst 9500 switches help protect your organization before, during, and after an attack. Reduce your attack surface with Cisco trustworthy systems and MACsec ?256-bit encryption. Enhance malware detection and rapid threat containment.
Business architecture optimization services
Make the most of your network investment using performance, benchmarking, deployment, and incident trending analytics to intelligently run your network.
CISCO MERAKI MS350 48LP CLOUD MANAGED SWITCH
Built-In Multi-Site Cloud Management
The Cisco Meraki MS is the industry's first cloud managed switch, combining the benefits of cloud based centralized management with a powerful, reliable access platform. Cloud management has a number of benefits that make it easier to build networks large and small:
- Single pane of glass management of distributed switch deployments, wireless APs, and firewalls across multiple sites through the browser.
- Virtual stacking: manage up to tens of thousands of ports from a single pane of glass.
- Layer 7 OS, client, and hostname fingerprinting.
- Powerful Live Tools such as cable test to isolate physical layer issues.
- E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered on demand from the Meraki cloud.
- No staging deployments
- With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT,
- deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.
Converged Voice, Video and Data Environments
The Cisco Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Cisco Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.
CISCO CATALYST 2960 L SERIES SWITCHES
Get a next-generation switch at a great value
Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. The Cisco Catalyst 2960-L fixed managed and 2960-L Smart Managed switches are available in 8-port to 48-port configurations and support Power over Ethernet (PoE). With the Catalyst 2960-L switches, make your network ready for the mobile devices and applications it needs to support--all at a great value.
Increase reliability
The Cisco Catalyst 2960-L is a high-value switch that helps you increase reliability in branches and other deployments while increasing cost effectiveness.
Power your solutions
Select models support PoE to provide up to 30W of power per port. Remove the need for additional electrical cabling and circuits to power your access points and IP phones.
Improve efficiency
The 2960-L can be configured with IEEE 802.1x Multidomain Authentication to use the same switch port for appropriate voice and data VLANs.
Simplicity
Your new network deployment is now just a few clicks away! Get a small office network up and running in minutes by automating the day-0 provisioning via Cisco Configuration Professional for Catalyst (CCPC).
CISCO MERAKI MS350 24X SWITCHES
overview:
The Cisco Meraki MS350-24X is a 24-port cloud-managed stackable L3 enterprise-class access switch with 8 multigigabit ports, four SFP+ uplinks and support for redundant power supplies for mission critical environments. The MS350 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS350 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
CISCO MERAKI CLOUD MANAGED MS355 48X2 SWITCH
Cloud Managed Switching for the Performance Driven Network:
The Cisco Meraki MS355-48X2 switch provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments. The MS355-48X2 features a high mGig port density for 802.11ax wireless access points, servers, and workstations. With 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans. All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs
Product Highlights:
• 24 x gigabit ethernet PoE/PoE+/uPoE interfaces
• 24 x 10G ethernet PoE/PoE+/uPoE interfaces
• Multi-gigabit (mGig) ports support 100M/1/2.5/5/10G of bandwidth over copper cabling
• 740 watt PoE budget with PoE+ and uPoE support, dynamic power allocation for powering APs, phones, cameras, and other PoE enabled devices
• 40G and 10G uplink interfaces
• Dual stacking interfaces with 400 Gbps of bandwidth
• Support for field replaceable, redundant power supplies

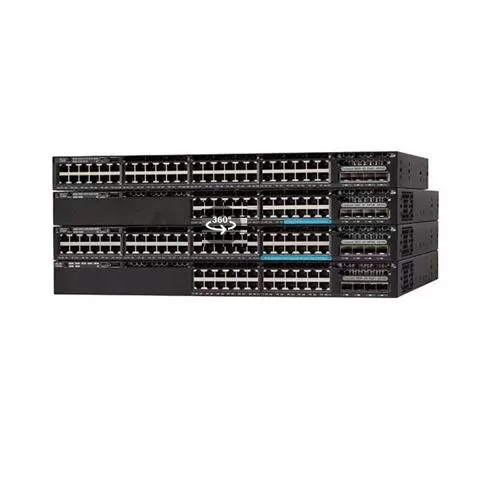

CISCO CATALYST 3650 SERIES SWITCHES
Get a Unified Access Switch
Converge your wired and wireless network. Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. From the 3650 mini series to the 3650 multigigabit and Universal Power over Ethernet (UPOE) switches, your network is ready for the mobile devices and applications it needs to support.Cisco DNA software fuels the intent-based network
Simple, flexible software subscription suites help you achieve the latest DNA innovations in policy-based automation, secure connectivity, and critical analytics and assurance across your network. Not what you need? Maybe Cisco ONE for Access perpetual software for secure converged management is right for you.
Bring wired and wireless together
The 3650 switch gives you smart, simple, and highly secure unified access with an integrated wireless controller. Support up to 50 access points and 1000 wireless clients on each switching entity (switch or stack).
CISCO MDS 9718 MULTILAYER DIRECTOR
Grow and Consolidate
Gain superior performance, scalability, multiprotocol convergence, and enterprise-grade availability in your data center SAN. Our newest director offers the industry’s highest port density with 768 line-rate 32Gbps Fibre Channel ports and NVMe over Fibre Channel support. The MDS 9718 meets the stringent requirements of large virtualized storage environments.
High Performance and Scalability
- The MDS 9718 is designed to meet the performance and scalability needs of the most demanding SANs while also lowering the TCO. It offers:
- Up to 48-Tbps front-panel Fibre Channel (FC) switching capacity
- 1.5-Tbps front-panel FC performance per slot
- Up to 768 32-Gbps autosensing line-rate FC ports; 10-Gbps FCoE ports per chassis; or 24 ports of 40-Gbps FCoE
- Up to 128 10-Gbps FCIP ports
Integrated analytics on 32G module
- Lower TCO and Outstanding Investment Protection
- The MDS 9718 is optimized for the data center and delivers a lower TCO. It features:
- Very high-density 32-Gbps FC and 10/40-Gbps FCoE connectivity
- Investment protection for more than a decade
- True front-to-back air flow for hot-cold aisle deployments
CISCO CATALYST DIGITAL BUILDING SERIES SWITCHES
Make buildings smarter
Save on energy costs and enhance flexibility, safety, and productivity. Our Catalyst Digital Building plenum-rated UPOE fan-less switches are designed for smart buildings and optimized for low-voltage PoE. Combine lighting, air conditioning, security systems, and more on one IP network with seamless security and easy installation and management.
Intelligence and automation
Catalyst Digital Building Series Switches give you smart, simple, and highly secure access in a very compact and rugged standalone form factor. The smart and easy mobile installation app helps you install the switch in a snap.
Power lights and more
Innovation in LED lighting increases energy efficiency, cost-savings, and new smart lighting applications. Cisco Universal Power over Ethernet (UPOE) with 60 watts per port, a fan-less design, and energy-efficient operation make our switches the right choice to take control of your digital building.
Modern experiences and analytics
Organizations are seeking innovative ways to optimize and control space usage. Network-enabled connected sensors, HVAC, lighting, access, and more can provide robust connectivity to help you increase building analytics.
CISCO CATALYST 2960 X SERIES SWITCHES
Cost-effective access switches that scale
Get the enterprise-class features you want at a great price. Our 2960-X Series are stackable Gigabit Ethernet Layer 2 and Layer 3 access switches. They’re easy to deploy, manage, and troubleshoot. They offer automated software installation and port configuration. And they help you cut costs with energy-efficient features.
2960 X Series models
The 2960-X and XR Series Switches include configurations to fit in any enterprise network. All models have Enhanced Limited Lifetime Warranty (E-LLW). Choose the best switch for your needs from more than 20 models.
Simple
Automate software installation for zero-touch deployment. Configure ports automatically based on device type. Proactively diagnose and remediate hardware and software issues with Cisco Smart Call Home.
Smart
Consume less power with switch hibernation mode. Reduce traffic disruption due to control plane redundancy across FlexStack-Plus switches. Get application visibility and control with NetFlow Lite to prioritize applications.
Highly secure
The 2960-X uses 802.1X for port-based network access control. Enable scalable and dynamic role-based access control with Cisco TrustSec Technology. Protect against IPv6 address theft and malicious attacks with IPv6 First Hop Security.
CISCO NEXUS 2000 SERIES FABRIC EXTENDERS
Agility, flexibility, and simplicity at scale
Agility, flexibility, and simplicity at scale Simplify your data center operations with Cisco Nexus 2000 Series Fabric Extenders. As part of the Cisco Data Center Networking portfolio, they integrate into existing network infrastructures as well as Cisco Application Centric Infrastructure (Cisco ACI). These fabric extenders offer a flexible solution to add access port connectivity to your data center network.
Benefit from third-generation technology
Benefit from third-generation technology Cisco Nexus 2000 Series Fabric Extenders provide connectivity for rack and blade servers and for converged fabric deployments. As the third generation in the Cisco fabric extender portfolio, the Cisco Nexus 2300 Series provides a wide range of benefits.
Deliver innovation to the data center
Simplify migration to 10 Gbps at the server access layer. Support cost-effective migration to 40 Gigabit Ethernet with Cisco BiDi optics. Deploy larger buffers and additional TCAM.
CISCO MERAKI MS410 32 SWITCHES
Overview:
The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.
Expanding Cloud Management to the Campus
Cisco Meraki aggregation switches extend Cisco Meraki's cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there's no need for complicated configuration files — or pre-staging.
CISCO MERAKI MS425 32 SWITCHES
Overview:
The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.
Expanding Cloud Management to the Campus
Cisco Meraki aggregation switches extend Cisco Meraki's cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there's no need for complicated configuration files — or pre-staging.
Built-In Multi-Site Cloud Management
The Cisco Meraki MS is the industry's first cloud managed switch, combining the benefits of cloud based centralized management with a powerful, reliable access platform. Cloud management has a number of benefits that make it easier to build networks large and small:
- Centralized management that allows you to manage your entire Meraki network stack from campus aggregation to your access layer (wireless APs, switches, firewalls).
- Virtual stacking: manage up to tens of thousands of ports from a single pane of glass.
- Layer 7 OS, client, and hostname fingerprinting.
- Powerful Live Tools such as cable test to isolate physical layer issues.
- E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered on demand from the Meraki cloud.
- No staging deployments
CISCO MERAKI MS250 48 SWITCHES
overview:
The Cisco Meraki MS250-24 is a 24-port cloud-managed stackable enterprise-class access switch with four SFP+ uplinks, support for redundant power supplies for mission critical environments, and IP routing. The MS250 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS250 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
CISCO CATALYST 2960 CX SERIES SWITCHES
Be free to connect devices anywhere
When space is tight, start compact with a 2960-CX switch. And expand your network as your company grows. Gain the enterprise features of a larger Cisco switch without using a lot of physical space. Our Catalyst switches bring wired and wireless together through unified access, so you gain scale, security, and mobility.
Compact design
Created for organizations where space is tight, the 2960-CX is a compact, powerful, 8-port, fanless Gigabit switch. You can place it outside the wiring closet to shorten the cabling. And it has flexible mounting options.
Works with Internet-of-Things devices
Whether in a hospital, retail store, office, classroom, or branch location, the 2960-CX supports IP connections for devices with PoE+. You don’t need to install electrical circuits to power access points, IP phones, cameras, and other devices.
CISCO MDS 9710 MULTILAYER SWITCHES
Transform Large Storage Networks
The Cisco MDS 9710 Multilayer Director brings superior performance, scalability, multiprotocol convergence, integrated analytics, and enterprise-grade availability to data center SANs. With it, you can deploy Fibre Channel, IBM Fibre Connectivity (FICON), Fibre Channel over IP (FCIP), Fibre Channel over Ethernet (FCoE), and NVMe over Fibre Channel on a single fabric. This director meets the stringent requirements of large virtualized storage environments.
Features and Capabilities
High Performance and Scalability
The Cisco MDS 9710 is designed to meet the performance and scalability needs of the most demanding SANs while also lowering the TCO. It offers:
- Up to 24-Tbps front-panel Fibre Channel switching capacity
- 1.5-Tbps front-panel Fibre Channel performance per slot
- Up to 64 10-Gbps FCIP ports and 16 40-Gbps FCIP ports on MDS 9710
- Integrated hardware-based analytics support with 32G module
Converged Networks to Simplify SAN Connectivity
Using the Cisco MDS 9710 Multilayer Director, you can easily connect a Cisco MDS-based SAN infrastructure to large converged networks with multihop FCoE. In addition, the operating system and management interface are the same as that of all other Cisco data center switches.
CISCO MDS 9706 MULTILAYER SWITCHES
Scalability and Convergence in a Compact Form
The Cisco MDS 9706 Multilayer Director brings superior performance, scalability, multiprotocol convergence, integrated analytics, and enterprise-grade availability to data center SANs in a compact form factor. It is an ideal candidate for deployment in small to medium-sized data center storage environments as well as pod-based converged solutions for the cloud.
Get High Performance and Scalability
The Cisco MDS 9706 switch is designed to meet the performance and scalability needs of the most demanding SANs today and well into the future, while also lowering TCO. It offers:
- Up to 12-Tbps front-panel Fibre Channel switching capacity
- 1.5-Tbps front-panel Fibre Channel performance per slot
- Industry-leading port densities of up to 192 32/16/10/8/4/2-Gbps autosensing line-rate Fibre Channel, or 384 10-Gbps FcoE, or 192 40-Gbps FcoE ports per chassis
- Up to 32 10-Gbps FCIP ports and 8 40-Gbps FCIP ports on MDS 9706
- Integrated analytics on 32G module
CISCO CATALYST 3850 SERIES SWITCHES
Get faster access, faster aggregation
Get an access switch that gets you ready for 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit and 10-Gbps network switches give you wired and wireless together so you can scale up and protect your investments.
Converged wired and wireless
The Catalyst 3850 switch gives you smart, simple, and highly secure converged access with an integrated wireless controller. Support up to 100 access points and 2000 wireless clients on each switching entity (switch or stack).
Cisco Catalyst Multigigabit Technology
Support 802.11ac Wave 2 with Catalyst Multigigabit Technology and get speeds beyond 1 Gigabit on existing Category 5e/6 cables. The 3850 switch has multigigabit ports to support 1, 2.5, 5, and 10-Gbps speeds on select models.
CISCO CATALYST 4500 SERIES SWITCHES
Deploy seamless wired and wireless access
Accelerate business growth and improve efficiency. The Catalyst 4500E Series is Cisco SD-Access-ready, and it’s the industry's most widely deployed modular platform for campus access and distribution deployments. Now with Supervisor 9-E, 8-E, and 8L-E, these switches offer 928 Gbps of wired and wireless converged access per system.
Industry-leading modular access switching
Catalyst 4500E switches with Supervisor 9-E, 8-E, or 8L-E offer exceptional scalability and features to meet current and future network demands. Get up to 928-Gbps bandwidth, nonblocking 48 Gbps per slot, and 9000W of power through PoE ports.
CISCO MERAKI MS225 48 CLOUD MANAGED SWITCHES
Cloud Managed Stackable Access Switches
The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
Industry Leading Cloud Management
Cloud management has a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual stacking: manage up to thousands of ports from a single pane of glass.
- Application layer visibility with automatic operating system, client, and hostname fingerprinting.
- Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
- Alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered on demand from the Meraki cloud.
CISCO CATALYST 6880 X SWITCH
Advanced Services in a Compact Form Factor
Introduce 10 Gigabit advanced services with Cisco Catalyst 6880-X Switches. Catalyst 6880-X meets the unique needs of a midsize campus, with the ideal combination of:
Advanced services
- Optimal port capacity
- 10 Gigabit Ethernet density
- Compelling economics
CISCO CATALYST 6800 SERIES SWITCHES
Enterprise backbone of the digital organization
Get the scale, security, and simplicity you need to meet your business challenges. Catalyst 6800 Series switches are powerful campus backbone switches optimized for Multigigabit Ethernet services to help you protect your network investment.
Cisco DNA software fuels the intent-based network
Simple, flexible software subscription suites help you achieve the latest DNA innovations in policy-based automation, secure connectivity, and critical analytics and assurance across your network. Not what you need? Maybe Cisco ONE for Access perpetual software for secure converged management is right for you.
CISCO MDS 9300 SERIES MULTILAYER FABRIC SWITCHES
High density fabric switch with integrated telemetry
Get enterprise-class features along with state of the art analytics and telemetry capabilities. The Cisco MDS 9300 Series 32G Multilayer Fabric Switch is the next generation of the highly reliable, flexible, and high performance Cisco MDS 9000 Family of fabric switches with integrated Telemetry for AFA and FC-NVMe. This powerful, compact, 2 RU switch scales from 48 to 96 line-rate Fibre Channel ports.
Rapid provisioning
Eliminate cycles spent on bringing up new devices through auto-zoning. Detect new host and storage devices that log into a SAN and automatically zone them without having to do manual zone configuration.
Visibility and application awareness
Get proactive troubleshooting and reduced opex through integrated telemetry. Proactively monitor workloads to identify issues that could affect performance.
Affordable enterprise-class features
Get cost-optimized enterprise-class features in a fixed form factor. This series possesses all the functionalities that come with the high-end MDS modular directors.
Application performance
Provides consistent line-rate low-latency performance across all traffic conditions for every Fibre Channel port on the switch.
CISCO MDS 9100 SERIES MULTILAYER FABRIC SWITCHES
SAN solution for small and midsize business
To meet your organization’s strategic business and application needs, you need innovative, affordable SAN solutions. They should be flexible, agile, highly available, highly secure, and easy to use while providing visibility to every flow. Cisco MDS 9100 Series Multilayer Fabric Switches meet these requirements, providing an economical and capable solution for commercial organizations.
Affordability
Get cost-effective 32G support for enterprise-level capabilities such as virtual machine awareness, analytics and security with reduced total cost of ownership.
Consolidation and scale
Hyper-virtualized environments can scale on 32G with 8 to 48 ports.
Application performance
The MDS 9100 Series offers high reliability, availability, and low latency.
CISCO CATALYST 6500 SERIES SWITCHES
Deploy a comprehensive enterprise backbone
Get resiliency, security, and more. Catalyst 6500 Series Switches are widely deployed campus backbone switches. They are optimized for Multigigabit Ethernet services to help you protect your network investment.
Cisco DNA software fuels the intent-based network
Simple, flexible software subscription suites help you achieve the latest DNA innovations in policy-based automation, secure connectivity, and critical analytics and assurance across your network. Not what you need? Maybe Cisco ONE for Access perpetual software for secure converged management is right for you.
CISCO CATALYST 4500 X SERIES SWITCHES
Small size, high scale
Looking for a cost-effective, small, fixed aggregation switch? The Cisco Catalyst 4500-X Series offers the size, scalability, and enhanced security you need. And its high-availability features reduce downtime.
Security
Enhance security with support for Cisco TrustSec and Flexible NetFlow technologies.
Simplified operations
The 4500-X offers support for Smart Install Director. Customers gain a single point of management for zero-touch deployment of new switches and stacks in campus and branch networks.
CISCO MERAKI MS210 48 CLOUD MANAGED SWITCH
Overview:
- The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Cisco Meraki MS is the industry's cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.
- Cisco Meraki MS Switches feature virtual stacking - an industry first - that allows management of thousands of switch ports as one, without requiring a physical connection between switches. Quickly find and configure switch ports across your entire network, even those in geographically-distributed locations. Easily configure ports for access devices, assign voice VLANs, control PoE, and more, with a few simple clicks and without complex CLI instructions.
CISCO MERAKI MS120 48 CLOUD MANAGED SWITCH
Overview:
- Cisco Meraki MS120-48 switches provide Layer 2 access switching ideal for branch and campus deployments.
- Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
- Cloud management has a number of benefits that make it easier to build networks large and small: True zero-touch device provisioning; Virtual Stacking: manage up to thousands of ports from a single pane of glass; Application-layer visibility with automatic operating system, client, and hostname fingerprinting; Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues; Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configurations changes; Role-based administration and automatic, scheduled firmware upgrades over the cloud; Regular feature updates and enhancements delivered on demand from the Meraki cloud.
CISCO MERAKI MS120 8 CLOUD MANAGED SWITCH
Overview:
- Cisco Meraki MS120-8FP compact switches provide Layer 2 access switching with PoE+ Support. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.
- Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
- Cloud management has a number of benefits that make it easier to build networks large and small: True zero-touch device provisioning; Virtual Stacking: manage up to thousands of ports from a single pane of glass; Application-layer visibility with automatic operating system, client, and hostname fingerprinting; Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues; Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configurations changes; Role-based administration and automatic, scheduled firmware upgrades over the cloud; Regular feature updates and enhancements delivered on demand from the Meraki cloud.
CISCO MDS 9148S 16G MULTILAYER FABRIC SWITCH
High Performance at a Compelling Value
The Cisco MDS 9148S 16G Multilayer Fabric Switch is the next generation of the highly reliable Cisco MDS 9100 Series Switches. It includes up to 48 auto-sensing line-rate 16-Gbps Fibre Channel ports in a compact easy to deploy and manage 1-rack-unit (1RU) form factor. In all, the Cisco MDS 9148S is a powerful and flexible switch that delivers high performance and comprehensive Enterprise-class features at an affordable price.
Benefits
- Flexibility for growth and virtualization
- Easy deployment and management
- Optimized bandwidth utilization and reduced downtime
- Enterprise-class features and reliability at low cost
Features
- PowerOn Auto Provisioning and intelligent diagnostics
- In-Service Software Upgrade and dual redundant hot-swappable power supplies for high availability
- Role-based authentication, authorization, and accounting services to support regulatory requirements
- High-performance interswitch links with multipath load balancing
- Smart zoning and virtual output queuing
- Hardware-based slow port detection and recovery
CISCO MDS 9250I MULTISERVICE FABRIC SWITCH
Superior Flexibility with Multi-protocol Innovations:
The Cisco MDS 9250i Multiservice Fabric Switch provides superior flexibility in SAN connectivity by delivering state-of-the-art multiprotocol convergence and distributed fabric services, along with many advanced capabilities. With 50 fixed ports in a compact form factor, the Cisco 9250i brings high performance and scalable storage connectivity for converged LAN and SAN fabrics
Benefits:
- SAN consolidation and convergence with integrated multiprotocol support for Fibre Channel (FC), FC over Ethernet (FCoE), FCIP, iSCSI, and FICON
- Optimized for performance,power, and space, with 40 line-rate 16-Gbps FC ports and 10 10-Gbps Ethernet ports
- Remote SAN extension with high-performance FC over IP (FCIP) for remote replication and other disaster-recovery services
- Intelligent fabric services, such as I/O Accelerator (IOA) and Data Mobility Manager (DMM)
- Flexibility for future growth and capacity expansion
Features:
- Hardware-based virtual fabric isolation with virtual SANs (VSANs) and FC routing with Inter-VSAN Routing (IVR)
- Enterprise-class availability features for departmental SANs
- Intelligent network services and advanced traffic management capabilities
- Industry-leading SAN security to support compliance and regulatory requirements
CISCO NEXUS 9516 SWITCH
Features and capabilities:
The Cisco Nexus 9516 Switch offers a comprehensive feature set, high resiliency,
and a broad range of 1/10/40 Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.
Cisco ACI support
Designed to support the Cisco next-generation data center based on Cisco ACI
Programmability
Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
Automated configuration through Linux shell scripts
Support for customer applications through a Linux container environment
High availability
Software patching for continued operations
Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability
Energy efficiency
Design without a midplane to optimize front-to-back airflow and reduce power consumption
Optimized design with fewer ASICs, resulting in lower energy use
Efficient power supplies that are rated at 80 Plus Platinum
Investment protection
40 Gb for reuse of existing 10 Gigabit Ethernet multimode cabling plant for 40 Gigabit Ethernet
Support for Cisco NX-OS and Cisco ACI modes of operation
Support for Cisco Nexus 2000 Series Fabric Extenders
Form factor : 21 RU
Line card slots : 16
Supervisor slots : 2
Fabric module slots : 6
ACI support :Yes
Bandwidth per slot (Tbps) : 3.84
Bandwidth per system (Tbps) : 60
Maximum number of 1/10G BASE-T ports : 768
Maximum number of 10 GE ports : 2304
Maximum number of 40 GE ports : 576
Maximum number of 100GE ports : 576
Airflow : Front to back
Power supplies (3-kW AC/DC) : Up to 10
Fan trays : 3
CISCO NEXUS 9508 SWITCH
Features and Capabilities
The Cisco Nexus 9508 Switch offers a comprehensive feature set, high resiliency, and a broad range of 1/10/40 Gigabit Ethernet line cards to meet the most
demanding requirements of enterprise, service provider, and cloud data centers.
ACI Support
Designed to support the Cisco next-generation data center based on Cisco ACI
Programmability
Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
Automated configuration through Linux shell scripts
Support for customer applications through a Linux container environment
High Availability
Full Cisco In-Service Software Upgrade (ISSU) and patching support
Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability
Energy Efficiency
Design without a midplane to optimize front-to-back airflow and reduce power consumption
Optimized design with fewer ASICs, resulting in lower energy use
Efficient power supplies that are rated at 80 Plus Platinum
Specifications at a Glance
30 Tbps of nonblocking performance
Up to 1152 10 Gigabit Ethernet nonblocking ports
Up to 288 40 Gigabit Ethernet nonblocking ports
Up to 384 1/10GBASE-T nonblocking ports
13-rack-unit chassis
8 line card slots
Front-to-back airflow
CISCO NEXUS 9504 SWITCH
Features and Capabilities
The Cisco Nexus 9504 Switch offers a comprehensive feature set, high resiliency, and a broad range of high performance Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.
Deployment Flexibility
Support for the next-generation data center based on Cisco ACI
Nexus Fabric Manager support to automate fabric configuration and management
Traditional data centers in standalone NX-OS mode
Programmability
Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
Automated configuration through Linux shell scripts
Support for customer applications through a Linux container environment
Programmable APIs for integration with DevOps automation tools
High Availability
In-Service Software Upgrade (ISSU) and patching without operation interruption Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability
Energy Efficiency
Designed without a midplane to optimize front-to-back airflow and reduce power consumption
Optimized design with fewer ASICs, resulting in lower energy use
Efficient power supplies that are rated at 80 Plus Platinum
Nonblocking performance 15 Tbps
10 Gigabit Ethernet nonblocking ports Up to 512
25 Gigabit Ethernet Ports Up to 512
50 Gigabit Ethernet Ports Up to 256
40/100 Gigabit Ethernet nonblocking ports Up to 144
1/10GBASE-T nonblocking ports Up to 192
Form factor 7-rack-unit chassis
Line card slots 4
Airflow Front to back
CISCO NEXUS 9316D GX SWITCH
- Ports : 16 x 400/100/40-Gbps QSFP-DD ports
- System memory : 16 GB NX-OS, 24 GB ACI
- Solid-State Disk (SSD) : 128 GB
- USB 1 port
- RS-232 serial console ports 1
- Management ports 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
- Broadwell-DE CPU 4 cores
- Dimensions (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
- N9K-C9316D-GX is the Cisco Nexus 9316D Spine switch with 16p 400/100G QSFP-DD. Based on Cisco® Cloud Scale technology, the Cisco
- Nexus® 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform introduces a fully backwardcompatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently migrate existing data center
- fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for customers, delivering highly flexible
- layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
CISCO NEXUS 93600CD SWITCH
- Ports : 28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports
- System memory : 16 GB NX-OS, 24 GB ACI
- Solid-State Disk : (SSD) 128 GB
- USB : 1 port
- RS-232 serial console ports : 1
- Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
- Broadwell-DE CPU : 4 cores
- Dimensions (H x W x D) 1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm)
- N9K-C93600CD-GX is the Cisco Nexus 9316D Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD. Based on Cisco
- Cloud Scale technology, the Cisco Nexus 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform
- introduces a fully backward-compatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently
- migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for
- customers, delivering highly flexible layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and
- automated cloud environments.
CISCO NEXUS 93180YC EX SWITCH
- Ports : 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
- Downlink supported speeds : 1/10/25-Gbps speeds
- CPU: 4 cores
- System memory: 24 GB
- SSD drive : 64 GB
- System buffer: 40 MB
- Management ports 2 ports: 1 RJ-45 and 1 SFP
- USB ports : 1
- RS-232 serial ports : 1
- Power supplies (up to 2) : 650W AC, 930W DC, or 1200W HVAC/HVDC
- Typical power (AC/DC) : 210W
- Maximum power (AC/DC) : 470W
- Physical dimensions c
- (H x W x D)
- 1.72 x 17.3 x 22.5 in.
- (4.4 x 43.9 x 57.1 cm)
- Weight (without power supplies or fans) 17.2 lb (7.8 kg)
- N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus
- 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services
- with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet
- the evolving needs of highly scalable data centers and growing enterprises.
CISCO NEXUS 93180LC EX SWITCH
- Device Type : Switch - 24 ports - L3
- Enclosure Type : Rack-mountable 1U
- Subtype : 50 Gigabit Ethernet
- Ports : 24 x 40/50 Gigabit QSFP+ + 6 x 40/100 Gigabit QSFP+
- Performance : Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4
- Capacity : Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦
- Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 1000 ¦ VLANs supported: 4096 ¦ ACL entries (egress): 2000 ¦ ACL entries (ingress): 4000 ¦ IGMP snooping groups: 8000 ¦ Multicast routes: 8000
- MAC Address Table Size : 512K entries
- Routing Protocol :OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
- Features : Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
- RAM : 24 GB
- Built-in Devices : 64 GB SSD
- The Cisco Nexus 93180LC-EX Switch is the industry's first 50-Gbps capable 1RU switch that supports 3.6 Tbps of bandwidth and over 2.6
- bpps across 24 fixed 40/50-Gbps QSFP+ ports. Ports numbered 25, 27, 29, 30, 31, and 32 are the 6 uplinks ports, which can be configured
- as 40- and 100-Gbps ports, offering flexible migration options. This switch is capable of supporting flexible port configurations.
CISCO NEXUS 93180YC FX SWITCH
- Device Type : Switch - 48 ports - L3 - Managed
- Enclosure Type :Rack-mountable 1U
- Subtype :25 Gigabit Ethernet / 32Gb Fibre Channel
- Ports :48 x 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+ + 6 x 40/100 Gigabit QSFP28 / FCoE
- Performance :Bandwidth: 3.6 Tbps
- Active SPAN sessions: 4
- Capacity: Multiple Spanning Tree Protocol instances: 64
- HSRP groups: 490
- Per VLAN Rapid Spanning Tree instances: 4000
- Maximum number of links in a port channel: 32
- Maximum number of port channels: 512
- ECMP paths: 64
- Virtual Routing and Forwarding (VRF) instances: 16000
- VLANs supported: 4096
- ACL entries (egress): 2000
- IGMP snooping groups: 32000
- Multicast routes: 32000
- Latency: < 1 µs
- MAC Address Table Size : 512K entries
- Routing Protocol : OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
- Features: Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Virtual PortChannel (vPC) technology, MACsec support, 4 fans, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer, Power On Auto Provisioning (POAP)
- Compliant Standards : IEEE 802.1ae
- RAM : 64 GB
- Built-in Devices : 128 GB SSD
- Interfaces 48 x 1/10/25Gbit LAN / 8/16/32Gb Fibre Channel SFP+ downlink
- 6 x 100Gbit/40Gbit LAN QSFP28 uplink
- 1 x management RJ-45
- 1 x USB
- 1 x serial (RS-232)
CISCO NEXUS 93120TX SWITCH
- Ports : 96 fixed 1/10GBASE-T and 6 QSFP+ ports
- Supported speeds :100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
- 40 Gigabit Ethernet uplink
- ports : 6 fixed QSFP+ ports
- Physical (H x W x D) 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)
- Weight 26 lb (11.8 kg) (without power supplies, fans, or uplink module)
- Predictable high performance :
- Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
- from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
- Increased integrated buffer space :
- Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
- uplink ports.
- Designed for availability :
- Hot-swappable, redundant power supplies and fan trays increase availability.
- Flexible airflow configuration :
- Port-side intake and port-side exhaust airflow configurations are both supported.
- CPU, SSD, and memory :
- Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
- Power efficiency :
- All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
- Advanced optics :
- Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
- data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
- with no cable infrastructure upgrade cost.
CISCO NEXUS 93108TC EX SWITCH
- N9K-C93108TC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus
- 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services
- with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet
- the evolving needs of highly scalable data centers and growing enterprises.
- Ports : 48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports
- Downlink supported speeds : 100-Mbps and 1/10-Gbps speeds
- CPU : 4 cores
- System memory : 24 GB
- SSD drive : 64 GB
- System buffer : 40 MB
- Management ports 2 ports: 1 RJ-45 and 1 SFP
- USB ports : 1
- RS-232 serial ports : 1
- Power supplies (up to 2) : 650W AC, 930W DC, or 1200W HVAC/HVDC
- Typical power (AC/DC) : 290W
- Maximum power (AC/DC) : 499W
- Physical dimensions
- (H x W x D)
- 1.72 x 17.3 x 22.5 in.
- (4.4 x 43.9 x 57.1 cm)
- Weight (without power supplies or fans) 17.7 lb (8.0 kg)
CISCO NEXUS 93108TC FX SWITCH
- Product Type : Ethernet Switch
- Interfaces/Ports
- Total Number of Network Ports : 48
- Uplink Port : Yes
- Modular : Yes
- Stack Port : No
- Port/Expansion Slot Details : 48 x 10 Gigabit Ethernet Network
- Port/Expansion Slot Details :6 x 100 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported Optical Fiber
- Media Type Supported Twisted Pair
- Ethernet Technology 100 Gigabit Ethernet
- Ethernet Technology 10 Gigabit Ethernet
- Network Technology 100GBase-X
- Network Technology 10GBase-T
- I/O Expansions
- Number of Total Expansion Slots : 6
- Expansion Slot Type :QSFP28
- Shared SFP Slot :No
- Network & Communication :
- Layer Supported : 3
- Management & Protocols
- Manageable : Yes
- Power Description :
- Power Source Power Supply
- Redundant Power Supply Supported : Yes
CISCO NEXUS 9336PQ ACI SPINE SWITCH
- Device Type : Switch - 36 ports - L3 - managed
- Enclosure Type : Desktop, rack-mountable 2U
- Subtype : 40 Gigabit Ethernet
- Ports : 36 x 40 Gigabit QSFP+
- Performance : Bandwidth: 1.44 Tbps
- Capacity : Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ MAC addresses: 160000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000
- Jumbo Frame Support : Yes
- Routing Protocol : IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, static IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3
- Remote Management Protocol :SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
- Authentication Method :
- RADIUS, PAP, CHAP, TACACS+, MS-CHAP, MS-CHAP v.2
- Features :
- Flow control, modular design, load balancing, VLAN support, IGMP snooping, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), DiffServ Code Point (DSCP) support
- Compliant Standards :
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
CISCO NEXUS 9332C SWITCH
- Ports :32 QSFP+ ports
- Supported speeds :40 Gigabit Ethernet speeds
- Physical: (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
- Weight 22 lb (10.0 kg) (without power supplies or fans)
- Predictable highperformance :
- Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
- from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
- Increased integrated buffer space :
- Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
- uplink ports.
- Designed for availability :
- Hot-swappable, redundant power supplies and fan trays increase availability.
- Flexible airflow configuration:
- Port-side intake and port-side exhaust airflow configurations are both supported.
- CPU, SSD,and memory :
- Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
- Power efficiency :
- All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
- Advanced optics :
- Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
- data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
- with no cable infrastructure upgrade cost
CISCO NEXUS 9332C SWITCH
Physical :64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
Hot-swappable, dual fan trays with redundant fans
System memory: 32GB
SSD: 256GB
USB: 1 port
RS-232 serial console ports: 1
(1) 1-/10-Gigabit SFP+ ports (2)
(2) 40-/100-Gigabit QSFP28 ports (ports 1 to 48 in 4 rows of 12 ports)
(3) Green colored 40-/100-Gigabit QSFP28 ports supporting MACsec (when software support is available) (ports 49 to 64 in 4 rows of 4 ports)
(4) Fan modules (3) with slots numbered from 1 (left) to 3 (right)
(5) USB port (1)
(6)Management port (1—SFP optical port)
(7) Management port (1—RJ-45 copper port)
(8) Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (top) and 2 (bottom)
(9) Console port (1)
Management ports:
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
Broadwell-DE CPU: 4 cores
Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans
1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
Hot-swappable, dual fan trays with redundant fans
System memory: 32GB
SSD: 256GB
USB: 1 port
RS-232 serial console ports: 1
(1) 1-/10-Gigabit SFP+ ports (2)
(2) 40-/100-Gigabit QSFP28 ports (ports 1 to 48 in 4 rows of 12 ports)
(3) Green colored 40-/100-Gigabit QSFP28 ports supporting MACsec (when software support is available) (ports 49 to 64 in 4 rows of 4 ports)
(4) Fan modules (3) with slots numbered from 1 (left) to 3 (right)
(5) USB port (1)
(6)Management port (1—SFP optical port)
(7) Management port (1—RJ-45 copper port)
(8) Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (top) and 2 (bottom)
(9) Console port (1)
Management ports:
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
Broadwell-DE CPU: 4 cores
Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans
CISCO NEXUS 9364C SWITCH
Physical : 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
Hot-swappable, dual fan trays with redundant fans
System memory: 32GB
SSD: 256GB
USB: 1 port
RS-232 serial console ports: 1
(1) 1-/10-Gigabit SFP+ ports (2)
(2) 40-/100-Gigabit QSFP28 ports (ports 1 to 48 in 4 rows of 12 ports)
(3) Green colored 40-/100-Gigabit QSFP28 ports supporting MACsec (when software support is available) (ports 49 to 64 in 4 rows of 4 ports)
(4) Fan modules (3) with slots numbered from 1 (left) to 3 (right)
(5) USB port (1)
(6) Management port (1—SFP optical port)
(7) Management port (1—RJ-45 copper port)
(8) Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (top) and 2 (bottom)
(9) Console port (1)
Management ports:
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
Broadwell-DE CPU: 4 cores
Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans
CISCO NEXUS 9348GC FXP SWITCH
- The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the switch can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 1/10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports.
- Cisco Nexus 9348GC-FXP Switch is designed to meet the changing needs of data centers, big data applications, and automated cloud environments.
- Highlights points:
- Powered by Cisco Cloud Scale ASIC technology
- Support for Cisco NX OS Software and Cisco ACI (Application Centric Infrastructure) architecture
- High-performance, Layer 2 and 3 non-blocking architecture
- Easily deployed into either a hot-aisle or cold-aisle configuration
- Cisco Tetration Analytics Platform support with built-in hardware sensors for rich traffic flow telemetry and line-rate data collection
- Cisco Nexus Data Broker support for network traffic monitoring and analysis
- Robust hardware system specifications feature 4-core CPU, 24 GB of system memory, and respectively 128-GB SSD drive
- The 40-MB buffer supporting highly scalable data centers and big data applications 696 Gbps of bandwidth and over 250 mpps
- Fixed downlinks with 48 x FE/GE
- Fixed uplinks with 4 x 25GE SFP28, 2 x 100GE QSFP28
CISCO NEXUS 93240YC FX2 SWITCH
- Architectural flexibility :
- Support for Cisco ACI architecture and NX-OS
- 48 x 1/10/25 Gbps fiber ports
- 12 x 40/100 Gbps QSFP28 ports
- Supports 4.8 Tbps of bandwidth and over 1.8 bpps
- Rich features :
- Automated, policy-based systems management with Cisco ACI
- Build programmable SDN fabrics leveraging open APIs and over 65 Cisco ACI global technology partners
- Enhanced Cisco NX-OS Software designed for performance, resiliency, scalability, manageability, and programmability
- Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns
- Highly available and efficient design :
- High-performance, Layer 2 and 3 non-blocking architecture
- Easily deployed into either a hot-aisle or cold-aisle configuration
- Redundant, hot-swappable power supplies and fan trays
- Specifications at a Glance :
- Powered by cloud-scale technology
- 48 x 1/10/25 Gbps fiber ports
- 12 x 40/100 Gbps QSFP28 ports
- 40 MB buffer
- Up to 4.8 Tbps of bandwidth
CISCO NEXUS 9336C FX2 SWITCH
- The Cisco Nexus 9336C-FX2 offers flexible port speeds in a compact form factor. Designed to meet the changing needs of data centers, big data applications, and automated cloud environments, this powerful switch delivers superior programmability.
- Main Features :
- FX2
- Switch
- L3
- managed
- 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
- rack-mountable
- Built-in Devices :128 GB SSD
- Installed Size :24 GB
- Performance :Bandwidth: 2.8 bpps, Bandwidth: 7.2 Tbps
- Features :Ethernet Virtual Private Network (EVPN), Port exhaust, 40MB system buffer, Spanning Tree Protocol (STP) support, Virtual PortChannel (vPC) technology, Multiple Spanning Tree Protocol (MSTP) support, Power On Auto Provisioning (POAP), 3 fan trays, Side intake airflow, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Access Control List (ACL) support, MACsec support
- Type :100 Gigabit QSFP28 / 40 Gigabit QSFP28
- Interfaces :1 x management RJ-45, 1 x USB, 36 x 100Gbit/40Gbit LAN QSFP28, 1 x management SFP+, 1 x serial (RS-232)
- Type :Internal power supply
- Power Redundancy :Optional
- Installed Qty :0
- Max Supported Qty :2
- Nominal Voltage :AC 120/230 V
- Frequency Required :50/60 hertz
- Power Consumption Operational :777 watt
- Dimensions & Weight
- Width :17.3 inch
- Depth :24.5 inch
- Height :1.7 inch
- Weight :18.74 lbs
CISCO NEXUS 93360YC FX2 SWITCH
- The Cisco Nexus 93360YC-FX2 Leaf Switch is a 2-Rack-Unit (2RU) Leaf switch that supports 7.2 Tbps of bandwidth and 2.8 bpps across 96 fixed 10/25G SFP+ ports and 12 fixed 40/10G QSFP28 ports. The 96 ports of downlinks support 1/10/25-Gbps. The 12 uplinks ports can be configured as 40- and 100-Gbps ports, offering flexible migration options. The switch is ideal for a non-oversubscribed solution in a compact form factor. The switch has FC-FEC and RS-FEC enabled for 25Gbps support over longer distances.
- Main Features
- FX2
- Switch
- L3
- managed
- 96 x 1/10/25 Gigabit SFP+ + 12 x 40/100 Gigabit QSFP28
- rack-mountable
- Built-in Devices :128 GB SSD
- Installed Size :16 GB
- Capacity :SPAN sessions: 4, Port channels: 512, VLANs supported: 3967, NAT entries: 1023, HSRP groups: 490, Longest prefix match (LPM) routes: 896000, Multicast routes: 32000, ACL entries (ingress): 5000, MST instances: 64, ECMP paths: 64, IP host entries: 896000, ACL entries (egress): 2000, MAC addresses: 256000, Rapid Per-VLAN Spanning Tree Plus instances: 3967
- Form Factor :Rack-mountable
- Ports Qty :96
- Advanced Switching :Layer 3
- Routing Protocol :ECMP, RSVP, BGP, PIM-SM, MSDP, OSPF, EIGRP, RIP, RIP-2, Multiprotocol BGP, HSRP, MPLS
- Manageable :Yes
- Status Indicators :Status
- Features :Layer 3 switching, Open Shortest Path First (OSPF), 3 fans, Port-side exhaust (PSE), Multicast Source Discovery Protocol (MSDP), MPLS support, Virtual Extensible LAN (VXLAN), MACsec support, Source-Specific Multicast (SSM), Access Control List (ACL) support, Virtual PortChannel (vPC) technology, 40MB system buffer, Spanning Tree Protocol (STP) support, Power On Auto Provisioning (POAP), Ethernet Virtual Private Network (EVPN), Multiple Spanning Tree Protocol (MSTP) support
- Interfaces :1 x management SFP+, 12 x 100Gbit/40Gbit LAN QSFP28, 96 x 1/10/25Gbit LAN SFP+, 1 x serial (RS-232), 1 x USB, 1 x management RJ-45
- Ports Type :40/100 Gigabit QSFP28
- Dimensions & Weight
- Width :17.4 inch
- Depth :22.9 inch
- Height :3.4 inch
CISCO NEXUS 92304QC SWITCH
- The Cisco Nexus 92304QC switch (N9K-C92304QC) is a 2-RU switch with the following ports:
- 56 fixed 40-Gigabit QSFP+ (optical) interface ports supporting 1-, 10-, and 40-Gigabit speeds
- 16 of these ports support breakout cables for connections to 64 1- and 10-Gigabit ports on other devices.
- 8 QSFP28 ports supporting 40- and 100-Gigabit speeds
- 1 console port
- 1 management port
- 2 software-defined ports (labeled as S1-65 and S1-66)
- 1 USB port
CISCO NEXUS 92304QC SWITCH
- The Cisco Nexus 92304QC switch (N9K-C92304QC) is a 2-RU switch with the following ports:
- 56 fixed 40-Gigabit QSFP+ (optical) interface ports supporting 1-, 10-, and 40-Gigabit speeds
- 16 of these ports support breakout cables for connections to 64 1- and 10-Gigabit ports on other devices.
- 8 QSFP28 ports supporting 40- and 100-Gigabit speeds
- 1 console port
- 1 management port
- 2 software-defined ports (labeled as S1-65 and S1-66)
- 1 USB port
CISCO NEXUS 92160YC X SWITCH
- N9K-C92160YC-X is one of the Cisco Nexus 9200 switches. 92160YC-X Switch is optimized for Cisco NX-OS deployments. It provides 48 1/10/25-
- Gb host ports and up to six hybrid uplink ports that can be configured as 10, 25, 40, or 100-Gb ports. With 3.2 Tbps of switching capacity, the
- 92160YC-X delivers line-rate Layer 2 and 3 features for demanding enterprise, service provider hosting, and cloud computing environments
CISCO MGX 8800 SERIES 16 PORT SWITCH
Key Features
The main features of the Cisco MGX 8950 OC-192c/STM-64 ATM Switch Service Module are listed here.
Full nonblocking, full-duplex line-rate throughput
High reliability with hot-standby 1+1 ATM switch service module card redundancy
Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
Up to 4 million cell buffers
Up to 16 classes of service (CoS) that can be used to support IP or ATM services
Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP),
and Multiprotocol Label Switching (MPLS) services
Chassis Compatibility :
Cisco MGX 8950
Software Compatibility :
Cisco MGX Software Release 4.0.15 and above
Protocols :
ATM and SONET/SDH
Port Density :
1 port
Layer 1 (Physical Layer) Feature Summary
User-Network Interface (UNI) 3.0, 3.1, and 4.0 physical layer specifications
Compliance with the following SONET standards:
Bellcore GR-253-CORE
ANSI T1.105
Compliance with the following SDH standards:
ITU-T G.707, G.708, G.709, and G.783
ITU-T G.957 and G.958
Additional Physical Layer Specifications for Ports and Optics
Network Management :
Managed by Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Power :
Input power required: -48 VDC
Power consumption: 205W
Physical Dimensions :
H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)
Weight :
6.5 lb (2.95 kg)
CISCO MGX 8950 MULTISERVICE SWITCH
Applications
High-density broadband ATM
Scaling MPLS services
Convergence of voice and data networks
Technical Specifications
The following are some of the key features of the Cisco MGX 8950 Multiservice Switch:
Scalability of up to 180-Gbps fully redundant nonblocking switching within a single chassis
10-Gbps ATM interfaces (OC-192c/STM-64)
Industry-leading broadband density
OC-3c/STM-1, OC-12c/STM-4, and OC-48c/STM-16 trunk aggregation
Industry's highest network availability
Software compatibility
MGX 4.0.15 release and later (depending on the service modules configured)
Service module compatibility
AXSM-16-155-XG, AXSM-8-622-XG, AXSM-4-2488-XG, AXSM-1-9953-XG
AXSM-16-T3E3/B, AXSM-1-2488/B
MGX-RPM-PR-256, MGX-RPM-PR-512, MGX-RPM-XF-512
Control card
PXM45/C Processor Switching Module (only processor function is used)
Redundant slots 7 and 8 reserved for control card
Slots
Control processor slots: 2 fixed double-height slots for primary and secondary
Switching card slots: 2 fixed double-height slots divided into 4 single-height slots for 4 load-sharing XM60 switching cards
Service module slots: 12 double-height slots
Connectivity
T3/E3, OC-3/STM1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64, POS, Ethernet, Fast Ethernet, Gigabit Ethernet
Network management interfaces
RJ-45 Ethernet port for the management interface at the node, and In-band ATM connection to reach remote node for management connectivity,
DB-15 for the visual and audible alarm port, a command-line interface (CLI) for local management,
Simple Network Management Protocol (SNMP) for the network management system interface, Secure File Transfer Protocol (SFTP) for file transfer,
and Secure Shell (SSHv1 and SSHv2) Protocol for remote CLI access
Physical dimensions
(H x W x D): 35 x 19 x 22 inches (88.9 x 48.26 x 55.88 cm)
Rack-mountable in 19- and 23-inch EIA/RETMA and ETSI racks
Power
Typical consumption: 5 kW for maximum configuration system
CISCO MGX 8850 AXSM BROADBAND ATM SWITCHING MODULE
AXSM can be used in the MGX 8850 to provide ATM capability up to OC-48c/STM-16.
High scalability in interface speeds with T3/E3 ports, OC-3c/STM-1, OC-12c/STM-4, and OC-48c/ STM-16 AXSM modules. Each port on the AXSM can be configured for either trunk or access applications.
Industry leading module port densities of 16 T3/E3 ports, 16 OC-3c/STM-1 ports, 4 OC-12c/STM-4 ports, and 1 OC-48c/ STM-16 port that can scale up to 12 OC-48c/STM-16 modules in each MGX 8850 Multiservice Switch. Each OC-48c/STM-16 delivers fully nonblocking, full duplex throughput, in which a connection can occupy the entire line rate.
Support for all ATM service classes, with up to 16 classes of service (CoS). Supports carrier-class implementation of standards-based PNNI, SVC/SVP, SPVC/SPVP, and MPLS services. Large cell buffers (one million cells), which help to maximize "goodput" performance during congestion, reducing the number of retransmits; the buffers are allocated dynamically, depending on connection resource needs, thereby optimizing use of system resources.
High reliability with hot-standby 1:1 AXSM card redundancy, 1:1 and 1+1 line redundancy using APS.
Ports and trunks supported on same AXSM module
User-Network Interface (UNI) Specifications 3.0, 3.1, 4.0
Network Management
Management using Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Physical Specifications
Dimensions: (H x D) 15.83 x 15.65 in.
Electrical Specifications
Input power required: -48 VDC
Power consumption: 95W
CISCO MGX 8850 AXSM BROADBAND ATM SWITCHING MODULE
AXSM can be used in the MGX 8850 to provide ATM capability up to OC-48c/STM-16.
High scalability in interface speeds with T3/E3 ports, OC-3c/STM-1, OC-12c/STM-4, and OC-48c/ STM-16 AXSM modules. Each port on the AXSM can be configured for either trunk or access applications.
Industry leading module port densities of 16 T3/E3 ports, 16 OC-3c/STM-1 ports, 4 OC-12c/STM-4 ports, and 1 OC-48c/ STM-16 port that can scale up to 12 OC-48c/STM-16 modules in each MGX 8850 Multiservice Switch. Each OC-48c/STM-16 delivers fully nonblocking, full duplex throughput, in which a connection can occupy the entire line rate.
Support for all ATM service classes, with up to 16 classes of service (CoS). Supports carrier-class implementation of standards-based PNNI, SVC/SVP, SPVC/SPVP, and MPLS services. Large cell buffers (one million cells), which help to maximize "goodput" performance during congestion, reducing the number of retransmits; the buffers are allocated dynamically, depending on connection resource needs, thereby optimizing use of system resources.
High reliability with hot-standby 1:1 AXSM card redundancy, 1:1 and 1+1 line redundancy using APS.
Ports and trunks supported on same AXSM module
User-Network Interface (UNI) Specifications 3.0, 3.1, 4.0
Network Management
Management using Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Physical Specifications
Dimensions: (H x D) 15.83 x 15.65 in.
Electrical Specifications
Input power required: -48 VDC
Power consumption: 95W
CISCO MGX 8800 SERIES SWITCHES
Key Features:
The main features of the Cisco MGX 8800/8900 16-Port OC-3c/STM-1 ATM Switch Service Module are listed here.
Full nonblocking, full-duplex line-rate throughput on all 16 ports
High reliability with hot-standby 1+1 16-port ATM switch service module card redundancy
Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
Y-cable and APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
Up to 4 million cell buffers
Up to 16 classes of service (CoS) that can be used to support IP or ATM services
Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP), soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services
Chassis Compatibility:
Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
Software Compatibility:
Cisco MGX 8800/8900 SW Release 5.0.20 and above
Protocols :
ATM and SONET/SDH
Port Density :
16 ports
Network Management
Managed by Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Power
Input power required: -48 VDC
Power consumption: 114W
Physical Dimensions
H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)
Weight
6.5 lb (2.95 kg)
CISCO MGX 8850 PXM 45 PROCESSOR SWITCH MODULE
Key Features
64-bit MIPS-based processor operating at 700 MHz
45-Gbps switch fabric and 1.2-Gbps cell-bus (when used with chassis other than the Cisco MGX 8950)
Cisco PXM-45/C used only as processor in Cisco MGX 8950; Cisco MGX-XM-60 provides switch-fabric function in that chassis
Hot swappable
1:1 hot-standby redundancy
User-selectable primary and secondary clock sources with graceful switchover
Internal Stratum-3, external Building Integrated Timing Supply (BITS), or in-band clock sources
In-band or out-of-band management using EIA/TIA-232 or 10BASE-T control ports
Support for narrowband and broadband service modules scaling from DS-0 to OC-48c/STM-16 or DS-3/E3 to OC-192/STM-64 (depending on the chassis used)
Chassis compatibility
Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950
Software compatibility
Minimum Cisco MGX software release supporting Cisco PXM-45/C:
Cisco MGX 8850 Software Release 4.0.15
Cisco MGX 8950 Software Release 4.0.15
Cisco MGX Software Release 5.0.20 (for Cisco MGX 8880 and MGX 8850/B)
Cisco MGX Software Release 5.2.00 (for Cisco MGX 8830/B)
Network Management
Managed by Cisco WAN Manager Software suite
Based on Simple Network Management Protocol (SNMP)
Power
Input power required: -48 VDC
Power consumption: 128 W
Physical Dimensions
H x D: 15.75 x 16.5 in. (40.00 x 41.91 cm)
Weight
6.5 lbs
CISCO MGX 8800 HARDWARE INSTALLATION SWITCH
Key Features
The main features of the Cisco 8-Port OC-12/STM-4 Channelized/Unchannelized ATM Switch Service Module are listed here.
Full nonblocking, full-duplex line-rate throughput on all 8 ports when used on the Cisco MGX 8950 chassis
Up to 4 ports with nonblocking, full-duplex line-rate throughput when used on the Cisco MGX 8800 chassis
Individual port channelization down to DS-3 and OC-3c/STM-1
Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
Up to 4 million cell buffers
Up to 16 classes of service (CoS) that can be used to support IP or ATM services
Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services
Chassis Compatibility
Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950
Software Compatibility
Cisco MGX 8800/8900 Software Release 5.2.00 and above for Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
Cisco MGX 8800/8900 Software Release 5.3.00 and above for Cisco MGX 8880
Protocols
ATM and SONET/SDH
Port Density
8 ports (4 ports at full line rate on the Cisco MGX 8800 chassis)
Network Management
Managed by Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Power
Input power required: -48 VDC
Power consumption: 134W
Physical Dimensions
H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)
Weight
6.5 lb (2.95 kg)
CISCO MGX XM60 SWITCHING MODULE
Key feattures :
The Cisco MGX-XM60 Switching Module has the following primary features:
Single-height card
60-Gbps nonblocking crosspoint switch fabric
Dynamic sharing of capacity across multiple Cisco XM-60s, allowing for N + 1 redundancy
Four installed in each Cisco MGX 8950 for 240-Gbps total capacity, 180-Gbps redundant capacity
Hot card insertion/removal
Complete separation from control processor, allowing data forwarding in the event of control card failure
Chassis compatibility
MGX 8950
Software compatibility
MGX S/W Releases supporting MGX-XM60:
MGX Rls 4.0.15 and above
Network management
Managed by Cisco WAN Manager Software suite
Based on Simple Network Management Protocol (SNMP)
Power
Input power required: -48 VDC
Power consumption: 61 W
Physical dimensions
H x D: 7.25 x 16.5 in. (18.41 x 41.91 cm)
Weight
3.5 lb
CISCO MGX 8830 ATM MULTISERVICE SWITCH
Key Features:
The main features of the Cisco MGX 8800/8900 16-Port OC-3c/STM-1 ATM Switch Service Module are listed here.
Full nonblocking, full-duplex line-rate throughput on all 16 ports
High reliability with hot-standby 1+1 16-port ATM switch service module card redundancy
Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
Y-cable and APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
Up to 4 million cell buffers
Up to 16 classes of service (CoS) that can be used to support IP or ATM services
Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP), soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services
Chassis Compatibility:
Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
Software Compatibility:
Cisco MGX 8800/8900 SW Release 5.0.20 and above
Protocols :
ATM and SONET/SDH
Port Density :
16 ports
Network Management
Managed by Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Power
Input power required: -48 VDC
Power consumption: 114W
Physical Dimensions
H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)
Weight
6.5 lb (2.95 kg)
CISCO MGX 8900 SERIES SWITCHES
Key Features
The main features of the Cisco 8-Port OC-12/STM-4 Channelized/Unchannelized ATM Switch Service Module are listed here.
Full nonblocking, full-duplex line-rate throughput on all 8 ports when used on the Cisco MGX 8950 chassis
Up to 4 ports with nonblocking, full-duplex line-rate throughput when used on the Cisco MGX 8800 chassis
Individual port channelization down to DS-3 and OC-3c/STM-1
Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
Up to 4 million cell buffers
Up to 16 classes of service (CoS) that can be used to support IP or ATM services
Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services
Chassis Compatibility
Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950
Software Compatibility
Cisco MGX 8800/8900 Software Release 5.2.00 and above for Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
Cisco MGX 8800/8900 Software Release 5.3.00 and above for Cisco MGX 8880
Protocols
ATM and SONET/SDH
Port Density
8 ports (4 ports at full line rate on the Cisco MGX 8800 chassis)
Network Management
Managed by Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)
Power
Input power required: -48 VDC
Power consumption: 134W
Physical Dimensions
H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)
Weight
6.5 lb (2.95 kg)
