DELL POWEREDGE C6620 TWO SOCKET SERVER
- Brand: Dell
- Product Name: Dell PowerEdge C6620 Two Socket 2U Rack Server
- Form Factor: 2U Rack Server
- Processor: 2 x 5th Generation Intel Xeon Scalable processors
- Memory: 16 x 256 GB DDR5 (4 TB) Ram
- Storage: Front: 8 x E3.S (288 TB) HDD
- GPU: 2 x 75W
Specifications:
Processor
Up to two 4th and 5th Generation Intel Xeon Scalable processors with up to 64 cores
Note: EMR CPU support up to 64 cores and SPR CPU support up to 56 cores.
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®/vSAN
Chipset
Intel® C741 chipset
Accelerators
One 75 W (low-profile, Half-height) GPUs
Memory
DIMM Speed
Up to 5600 MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR5 DIMM slots
Maximum RAM
RDIMM 4 TB
Storage
Front Bays
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB
Diskless with no backplane
Storage Controllers
Internal Controllers
PERC H965i, PERC H755, H355
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs 480 GB or 960 GB
uSD card
Internal 12 Gbps SAS HBAs (non-RAID)
Internal HBA355i
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
3200W 277 VAC or 336 VDC redundant, hot swap
2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap
1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Up to 4 cold swap fans
Ports
Network Options
1 x OCP 3.0 (optional)
1 x 1GbE LOM
Rear Ports
1 x USB 3.0
1 x iDRAC or NIC port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
2 x PCIe Gen5 slots:
1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 1 optional)
1 x16 Gen5 (x8 + x8 PCIe) Low-profile, Half-length for SNAP I/O module (slot 1 optional)
1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 2 optional)
1 x16 Gen4 (x8 PCIe) Low-profile, Half-length (slot 2 optional)
Form Factor
Up to 4 independent hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis
Dimensions & Weight
Height
40.0 mm (1.57 inches)
Width
174.4 mm (6.86 inches)
Depth
549.7 mm (21.64 inches)
Weight
5.1 kg (11.2 lbs)
DELL POWEREDGE MX760C INTEL PROCESSOR 1U RACK SERVER
- Brand: Dell
- Product Name: Dell PowerEdge MX760c Two Socket Rack Server
- Form Factor: 1U Rack Server
- Processor: 2 x 5th Generation Intel Xeon Scalable processors
- Memory: 32 x 256 GB DDR5 (8 TB) Ram
- Storage: 6 x 2.5 inch NVMe/SAS/SATA (92 TB) HDD
Specifications:
Processor
Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware vSAN/ESXi®
Chipset
Intel® C741 chipset with optional Intel® QuickAssist Technology
Memory
DIMM Speed
Up to 5600 MT/s
Memory Type
RDIMM
Memory Module Slots
32 DDR5 DIMM slots
Maximum RAM
RDIMM 8 TB max
Storage
Front Bays
Up to 4 x 2.5-inch NVMe/SAS/SATA (HDD/SSD)
Up to 6 x 2.5-inch SAS /SATA (HDD/SSD)
Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD)
Storage Controllers
Internal Controllers
PERC H755 MX, PERC H965i MX, HBA350i MX
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
Ports
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.0
Internal Ports
1 x USB 3.0 (optional)
Network Options
MX7000 chassis Fabric options: up to 2 pairs redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C
Slots
PCIe
One x16 PCIe Gen4 slot for PERC - connected to processor 1
One x16 PCIe Gen4 slot for Mezz A - connected to processor 1
One x16 PCIe Gen5 slot for Mezz B - connected to processor 2
One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1
Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1
Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2
One x4 PCIe Gen4 for BOSS-N1 HWRAID card
Chassis
MX7000
Form Factor
Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Dimensions & Weight
Height
51.0 mm (2 inches)
Width
257.0 mm (10 inches)
Depth
622.35 mm (25.5 inches) for 4 x 2.5-inch or 6 x 2.5-inch configuration
Weight
8.27 kg (18.23 lbs) for 4 x 2.5-inch configuration
8.38 kg (18.47 lbs) for 6 x 2.5-inch configuration
DELL POWEREDGE R7725 AMD 9005 SERIES RACK SERVER
- Brand: Dell
- Product Name: Dell PowerEdge R6725 Two Socket Rack Server
- Form Factor: 2U Rack Server
- Processor: 2 x 5th Generation AMD EPYC™ 9005 series processor
- Memory: 24 x 96 GB DDR5 (2.3 TB) Ram
- Storage: 16 x 2.5 inch + 8 x U.2 (184.24TB) or 16 x E3.S (245.76 TB) HDD
- GPU: 2 x SW (75W)
Specifications:
Processor
Two 5th Generation AMD EPYCTM 9005 Series processors with up to 192 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
Chipset
AMD chipset
Accelerators
Up to 2 x 400W DW
Up to 6 x 75W SW
Memory
DIMM Speed
Up to 6000 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 6 TB
Storage
Front Bays
12 x 3.5-inch SAS/SATA (HDD/SDD)
8 x 2.5-inch Universal U.2 NVMe (SSD)
16 x 2.5-inch SAS/SATA (HDD/SDD)
24 x 2.5-inch SAS/SATA (HDD/SDD)
16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch Universal U.2 NVMe (SSD)
16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch SAS/SATA (HDD/SDD) RAID
8 x EDSFF E3.S Gen5 NVMe
16 x EDSFF E3.S Gen5 NVMe
32 x EDSFF E3.S Gen5 NVMe
40 x EDSFF E3.S Gen5 NVMe
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H965i
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC 10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Power Supplies
3200 W Titanium 277 VAC or 100-240 VAC or 240 HVDC, hot swap redundant
2400 W Titanium 100-240 VAC, hot swap redundant
1800 W Titanium 100-240 VAC, hot swap redundant
1500 W Titanium 277 VAC or 100-240 VAC or 240 HVDC, hot swap redundant
1400 W Telco -48 VDC, hot swap redundant
1100 W Titanium 100-240 VAC, hot swap redundant
1100 W Platinum 100-240 VAC, hot swap redundant
800 W Titanium 100-240 VAC, hot swap redundant
800 W Platinum 100-240 VAC, hot swap redundant
Cooling
Air cooling
Direct Liquid Cooling (DLC)
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini Displayport (optional LCP KVM)
Rear Ports
1 x dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA
Internal Ports
1 x USB 3.1 Type-A
Slots
PCIe
Up to eight PCIe slots (x8 or x16 connector)
Slot 1: 1 x8 Gen5 Full Height
Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 3: 1 x16 Gen5 Full Height or Low Profile
Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 OCP3.0
Slot 5: 1 x8 Gen5 Full Height
Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
Slot 9: 1 x16 Gen5 Full Height or Low Profile
Gen5 PCIe slots up to:
8
OCP network options
2 x OCP NIC 3.0 card (optional) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE*
Slot 4: 1 x16 Gen5 second OCP 3.0
Slot 10: 1 x16 Gen5 OCP3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE; NDR VPI (400GbE); FC 32 / 64
BOSS
Slot 6: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional metal bezel
Form Factor
2U rack server
Dimensions & Weight
Height
86.80 mm (3.42 inch)
Width
482.00 mm (18.98 inch)
Depth
802.40mm (31.59 inch) with bezel
801.71 mm (31.55 inch) without bezel
Weight
Max 28.74 kg (63.36 lb)
DELL POWEREDGE R6725 1U RACK SERVER
- Brand: Dell
- Product Name: Dell PowerEdge R6725 Two Socket Rack Server
- Form Factor: 1U Rack Server
- Processor: 2 x 5th Generation AMD EPYC 9005 series processor
- Memory: 24 x 96 GB DDR5 (2.3 TB) Ram
- Storage: 8 x 2.5 inch or 8 x E3.S (122.88 TB) HDD
Specifications:
Processor
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores for Zen5 processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
Dell NativeEdge OS*
Chipset
AMD chipset
Accelerators
Up to 3 x 75 W SW*
Memory
DIMM Speed
Up to 6000 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 3 TB*
Storage
Front Bays
Up to 8 x 2.5-inch Universal Smart Flow max 30.72 TB
Up to 8 x EDSFF Gen5 E3.S NVMe (SSD) direct drives max 122.88 TB
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H965i, H365i*, H975i*
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
USB
Security
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
NativeEdge Endpoint
NativeEdge Endpoint Orchestrator
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OME Integration for VMware vCenter (with VMware Aria Operations)
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)
OpenManage Integrations
Red Hat Ansible Modules
Terraform Providers
Power Supplies
1800 W Titanium 100-240 VAC, hot swap redundant*
1500 W Titanium 277 VAC or 100-240 VAC or 240 HVDC*, hot swap redundant
1400 W Telco -48 VDC, hot swap redundant*
1100 W Titanium 240 HDVC, hot swap redundant*
1100 W Platinum 100-240 VAC, hot swap redundant*
800 W Titanium 240 HVDC, hot swap redundant*
800 W Platinum 100-240 VAC, hot swap redundant*
Cooling Options
Air cooling, Direct Liquid Cooling (DLC)*
Fans
Fans Up to four sets (dual fan module) hot plug fans
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x MiniDisplay port
Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA
Internal Ports
1 x USB 3.0 Type-A
Slots
PCIe
Up to two PCIe slots (x16 connector)
Slot1: 1 x16 Gen5 Low profile
Slot4: 1 x16 Gen5 Low profile
Gen5 PCIe slots up to:
2
OCP network options
2 x OCP NIC 3.0 card (optional)
Slot 2: 1 x16 Gen5 OCP 3.0
Slot 5: 1 x16 Gen5 OCP 3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
BOSS
Slot 3: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional metal bezel
Form Factor
1U rack server
Dimensions & Weight
Height
42.80 mm (1.68")
Width
482.00 mm (18.97")
Depth
817.89 mm (32.20") with bezel
815.10 mm (32.09") without bezel
Weight
21.2 Kg (46.73 lbs)
DELL POWEREDGE C6615 AMD 2U RACK SERVER
- Brand: Dell
- Product Name: Dell PowerEdge C6615 One Socket Rack Server
- Form Factor: 2U
- Processor: 1 x 4th Generation AMD EPYC™ 8004 series processor
- Memory: 6 x 96 GB DDR5 (576 GB)
- Storage: Front: 16 x 2.5 inch SAS/SATA (61 TB)
Specifications:
Processor
One AMD EPYC processor with up to 64 cores.
Cooling options
Air cooling
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®/vSAN
Chipset
AMD chipset
Memory
DIMM Speed
Up to 4800 MT/s
Memory Type
RDIMM
Memory Module Slots
6 DDR5 DIMM slots
Maximum RAM
RDIMM 384 GB (6 x 64 GB) max
Storage
Front Bay
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB
Up to 16 x 2.5-inch SATA/NVMe drives on the Universal Backplane configuration
Storage Controllers
Internal Controllers
PERC H755N, H355
Internal Boot
PERC H755N, H355
Software RAID
S160
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Internal 12 Gbps SAS HBAs (non-RAID)
Internal HBA355i
Security
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
Dell Repository Manager
Dell System Update
Enterprise Catalogs
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
3200W 277 VAC or 336 VDC redundant, hot swap
2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap
1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Up to 4 cold swap fans
Ports
Network Options
1 x OCP 3.0 Gen5
1 x 1GbE LOM
Rare Ports
1 x USB 3.0
1 x iDRAC ethernet port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
Up to 2 x16 Gen5 PCIe slots
Form Factor
Up to 4 independent hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis
Dimensions & Weight
Height
40.0 mm (1.57 inches)
Width
174.4 mm (6.86 inches)
Depth
549.7 mm (21.64 inches)
561.3 mm (22.10 inches) - SAS/SATA or NVMe or E3.S or Universal configuration
Weight
3.7 kg (8.15 pounds)
DELL NEW POWEREDGE R470 INTEL 1U RACK SERVER
- Brand: Dell
- Model No: Dell New PowerEdge R470 One Socket Server
- Form Factor: 1U
- Processor: 1 x 6th Generation Intel Xeon Scalable processor
- Memory: 16 x 64 GB DDR5 (1TB) Ram
- Storage: 16 x 64 GB DDR5 (1TB) HDD
- GPU: 2 x 75W (SW)
Specifications:
Processor
One Intel Xeon 6 processor with up to 144 cores per processor
Operating System
Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
Accelerators
Up to 2 x 75 W SW
Memory
DIMM Speed
Up to 6400 MT/s
Note: The installed processor may reduce the operating speed of the DIMM
Memory Type
ECC RDIMM
Memory Module Slots
16 DDR5 DIMM slots
Maximum RAM
ECC RDIMM 1 TB
Storage
Front Bays
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (SSD) max 122.4 TB
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
H965i DC-MHS
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
Secure Erase
System Lockdown (requires iDRAC10 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Power Supplies
800W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
1500W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
Ports
Front Ports
1 x USB 2.0 Type - C port
1 x USB 2.0 Type A port (optional)
1 x Mini-DisplayPort (optional)
1 x DB9 Serial (with front I/O configuration)
1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA
Internal Ports
1 x USB 3.1 Type A port
Slots
PCIe
Slot 1: 1 x16 slot with x8 bandwidth, Half Length, Low Profile
Slot 2: 1 x16 slot with x8 bandwidth, Half Length, Low Profile
Video Card
1 x VGA
1 x Mini-DisplayPort (optional)
Bezel
Security Bezel (optional)
Form Factor
1U rack server
Dimensions & Weight
Height
42.8 mm (1.69 in.)
Width
482 mm (19.0 in.)
Depth
816.92 mm (32.16 in.) with bezel (Rear I/O)
815.14 mm (32.09 in.) without bezel (Rear I/O)
829.44 mm (32.09 in.) without bezel (Front I/O)
Note: Front I/O configuration will not have a bezel.
Weight
19.11 kg (42.13 lbs)
DELL NEW POWEREDGE R7715 2U RACK SERVER
- Brand: Dell
- Product Name: New PowerEdge R7715 One Socket Rack Server
- Form Factor: 2U Rack Server
- Processor: 1 x 5th Generation AMD EPYC™ 9005 series processor
- Memory: 24 x 96 GB DDR5 (2.3 TB) Ram
- Storage: 16 x 2.5 inch + 8 x U.2 (184.24TB) or 16 x E3.S (245.76 TB) HDD
Specifications:
Processor
One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
Chipset
AMD chipset
Accelerators
Up to 3x 400W DW; Up to 6x 75W SW
Memory
DIMM Speed
speeds up to 5200 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 6 TB max*
Storage
Front Bays
Up to 2 x U.2 NVMe drives*
Up to 16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives
Up to 8 x EDSFF E3.S* / 16 x EDSFF E3.S / 32 x EDSFF E3.S* / 40 x EDSFF E3.S* Gen5 NVMe drives
Up to 8 x 2.5 Universal* / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA* drives
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H365i*, H965i, H975i*
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC 10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME Integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)*
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Power Supplies
Platinum 800W*, 1100W*
Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W*, 3200W 277Vac & HVDC*
Telco: 1400W -48VDC*
Cooling Options
Air cooling, Direct Liquid Cooling (DLC)*
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini DisplayPort (optional LCP KVM)
Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA
Internal Ports
1 x USB 3.1 Type-A
Slots
PCIe
Up to eight PCIe slots* (x16 connectors)
Slot 1: 1 x16 Gen5 Full Height*
Slot 2: 1 x16 Gen5 Full Height* or 1 x16 Dual Width Full Length
Slot 3: 1 x16 Gen5 Full Height* or Low Profile*
Slot 4: 1 x16 Gen5 Full Height* or 1 x16 Dual Width Full Length* or 1 x16 OCP3.0
Slot 5: 1 x16 Gen5 Full Height*
Slot 7: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length*
Slot 8: 1 x16 Gen5 Full Height*
Slot 9: 1 x16 Gen5 Full Height or Low Profile*
Gen5 PCIe slots up to:
Up to 8*
OCP network options
2 x OCP NIC 3.0 card (optional) ) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE*
Slot 4: 1 x16 Gen5 second OCP3.0
Slot 10: 1 x16 Gen5 OCP3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE*; NDR VPI (400GbE)*; FC 32 / 64*
BOSS
Slot 6: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional Metal Bezel
Form Factor
2U rack server
Dimensions:
Height
86.8 mm (3.41 inch)
Width
482.0 mm (18.97 inch)
Depth
802.4 mm (31.59 inch) with bezel
801.51 mm (31.55 inch) without bezel
Weight
28.68 kg (63.22 lb)
DELL POWEREDGE R6715 AMD 1U RACK SERVER
- Brand: Dell
- Model No: Dell PowerEdge R6715 One Socket Rack Server
- Form Factor: 1U Rack Server
- Processor: 1 x 5th Generation AMD EPYC 9005 series processor
- Memory: 24 x 64 GB DDR5 (1.5 TB) Ram
- Storage: 8 x 2.5 inch (122.88 TB) or 16 x E3.S (245.76 TB) HDD
Specifications:
Processor
One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
Chipset
AMD chipset
Accelerators
N/A
Memory
DIMM Speed
Up to 5200 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot, supports 3 TB max*
Maximum RAM
RDIMM 1.5 TB
Storage
Front Bays
Up to 2 x U.2*
Up to 4 x 3.5-inch SAS/SATA*
Up to 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA*
Up to 10 x 2.5-inch with 4 x Universal*
Up to 16 x EDSFF E3.S Gen5 NVMe
Up to 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H365i*
PERC H965i
PERC H975i*
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability plugin
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)*
OpenManage Integrations
Red Hat Ansible Collections
Terraform Providers
Power Supplies
Platinum 800W*, 1100W*
Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*
Telco: 1400W -48VDC*
Cooling options :
Air cooling, Direct Liquid Cooling (DLC)*
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x MiniDisplay port (optional LCP KVM)
Rear Ports
1 x 1 Gb dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA
Internal Ports
1 x USB 3.0 Type-A
Slots
PCIe
Up to three PCIe slots* (x16 connector)
Slot1: 1 x16 Gen5 Full Height* or Low profile
Slot 2: 1 x16 Gen5 Low profile* or 1 x16 OCP 3.0
Slot4: 1 x16 Gen5 Full Height* or Low profile
Gen5 PCIe slots up to:
3
OCP network options
2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE,100GbE and 400GbE
Slot 2: 1 x16 Gen5 OCP 3.0
Slot 5: 1 x16 Gen5 OCP 3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE*; NDR VPI (400GbE)*; FC 32 / 64*
BOSS
Slot 3: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional metal bezel
Form Factor:
1U rack server
Dimensions:
Height
42.80 mm (1.68 in.)
Width
482.00 mm (18.97 in.)
Depth
816.92 mm (32.16 in.) with bezel
815.14 mm (32.09 in.) without bezel
Weight:
Max 19.96 kg (44.00 lb)
DELL POWEREDGE R7615 AMD EPYC 9124 RACK SERVER
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R7615 Rack Server
- Processor : AMD EPYC 9124 3.0GHz, 16C/32T, 64M Cache (200W) DDR5-4800
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD
- RAID: 3.5 Chassis with up to 8 SAS3/SATA Drives, Front PERC 11
- Chassis: 3.5 Chassis with up to 8 SAS3/SATA Drives, Front PERC 11
- Front Bays: Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB, Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB, Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB, Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB, Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB, Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61.44 TB, Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional), Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 8 PCIe slots:, Slot 1: 1 x8 Gen5 Full height, Half length, Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length, Slot 4: 1 x8 Gen4 Full height, Half length, Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length, Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length, Slot 7: 1 x8/1 x16 Gen5 or 1 x16 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length, Slot 8: 1 x8/1 x16 Gen5 Full height, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 86.8 mm (3.41 inches)
- Width: 482 mm (18.97 inches)
- Depth: 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
- Weight: 35.41 kg (Max 78.06 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks Note: CMA is not supported in Direct Liquid Cooling configuration
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R750 INTEL XEON SILVER 4310 RACK SERVER
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R750 Rack Server
- Processor : IntelXeonSilver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Universal Drives (SAS/SATA or NVMe Direct), 2 CPU
- Front Bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB, Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
- Internal Controllers: PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Height: 86.8 mm (3.41 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 685.78 mm (27 inches) – without bezel, 721.69 mm (28.72 inches) – with bezel
- Weight: 24.8 kg (54.67 lbs.)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
- Bezel : Optional LCD bezel or security bezel
- Height: 86.8 mm (3.41 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 758.29 mm (29.85 inches) – without bezel, 772.13 mm (30.39 inches) – with bezel
- Weight: 24.8 kg (54.67 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R6625 16 CORE 1U RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R6625 Rack Server
- Processor : AMD EPYC 9124 3.0GHz, 16C/32T, 64M Cache (200W) DDR5-4800
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 10 SAS4/SATA Drives, Front PERC 11
- Front Bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SDD) max 80 TB, Up to 8 x 2.5-inch NVMe SSD max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 14 x E3.S NVMe direct drives max 107.52 TB, Up to 16 x E3.S NVMe direct drives max 122.88 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB, Up to 2 x E3.S NVMe direct drives max 15.36 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 1 x OCP 3.0 card (optional), 2 x 1GbE LOM card (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 3 PCIe slots:-Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length, Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length, Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 1.68 inches (42.8 mm)
- Width: 18.97 inches (482.0 mm)
- Depth: 32.4 inches (822.89 mm) with bezel, 31.85 inches (809.05 mm) without bezel
- Weight: Max 44.97 lbs. (20.4 kg)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.Note: CMA is not supported in Direct Liquid Cooling configuration
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R6615 AMD EPYC 9124 RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R6615 Rack Server
- Processor : AMD EPYC 9124 3.0GHz, 16C/32T, 64M Cache (200W) DDR5-4800
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5 Chassis with up to 10 SAS4/SATA Drives, Front PERC 11
- Front Bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SDD) max 80 TB, Up to 8 x 2.5-inch NVMe SSD max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 14 x E3.S NVMe direct drives max 107.52 TB, Up to 16 x E3.S NVMe direct drives max 122.88 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB, Up to 2 x E3.S NVMe direct drives max 15.36 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 2 x 1 GbE LOM card (optional), 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports: 1 x USB 2.0, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0 1 x USB 2.0, 1 x VGA 1 x USB 3.0, 1 x Serial (optional), Internal Port 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: Up to three PCIe slots (x16 connector)-Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length, Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length, Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 1.68 inches (42.8 mm)
- Width: 18.97 inches (482.0 mm)
- Depth: 30.39 inches (772.11 mm) with bezel, 29.85 inches (758.27 mm) without bezel
- Weight: Max 44.97 lbs. (20.4 kg)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.Note: CMA is not supported in Direct Liquid Cooling configuration
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R660XS INTEL XEON 4410Y 64GB RAM 1U RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R660xs Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Operating System: No Operating System
- Memory: 4x 16GB RDIMM, 4800MT/s Single Rank
- Storage: 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU, PERC 11
- Front Bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)Note: The system allows either LOM card or an OCP card can be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x Video
- Rear Ports: 1 x Dedicated iDRAC Ethernet port , 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5), 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
- Bezel : Optional LCD bezel or security bezel
DELL POWEREDGE R6515 AMD 7313P RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R6515 Rack Server
- Processor : AMD EPYC 7313P 3.0GHz, 16C/32T, 128M Cache (155W) DDR4-3200
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Hot Plug Hard Drives
- Front Bays: Up to 4 x 3.5 hot plug SAS/SATA (HDD), Up to 10 x 2.5 hot plug SAS/SATA/NVMe, Up to 8 x 2.5 hot plug SAS/SATA
- Rear Bays: N/A
- Internal Controllers: PERC HBA330, H330, H730P, H740P
- External Controllers: H840, 12Gbps SAS HBA
- Network Options: 2 x 1GbE, 2 x 10GbE BT, 2 x 10GbE SFP+,2 x 25GbE SFP28
- Front Ports: 1 x Dedicated iDRAC direct micro-USB, 1 x USB 2.0, 1 x Video
- Rear Ports: 2 x 1GbE, 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
- Internal Ports: N/A
- PCIe: Up to 2: 1 x Gen3 slot (1 x16), 1 x Gen4 slot (1 x16)
- Bezel : Optional LCD bezel or security bezel
- Height: 42.8mm (1.68)
- Width: 434.0mm (17.09)
- Depth: 657.25mm (25.88)
- Weight: 16.75 kg (36.93lb)
- Rack Support: ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

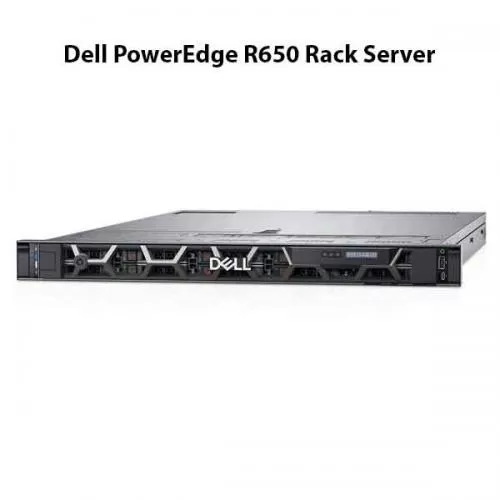

DELL POWEREDGE R650 INTEL XEON SILVER 4314 RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R650 Rack Server
- Processor : Intel Xeon Silver 4314 2.4G, 16C/32T, 10.4GT/s, 24M Cache, Turbo, HT (135W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5 Chassis with up to 8 Hard Drives (SAS/SATA), 3 PCIe Slots, 2 CPU
- Front Bays: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB, Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
- Internal Controllers: PERC H745, H345, HBA355I, H755, H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
- Bezel : Optional LCD bezel or security bezel
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R360 INTEL XEON E2434 RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R360 Rack Server
- Processor : IntelXeonE-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5
- Operating System: Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
- Memory: 32GB UDIMM, 4800MT/s ECC
- Storage: 1.2TB Hard Drive ISE SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Hot Plug Hard Drives, Adapter PERC 11, No BOSS Support
- Front Bays: Up to 4 x 3.5-inch SAS/SATA max 64 TB, Up to 8 x 2.5-inch SAS/SATA max 61.44 TB
- Rear Bays: N/A
- Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
- External Controllers: HBA355e Adpt
- Network Options: 2 x 1 GbE LOM
- Front Ports: 2 x 1GbE LOM, 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.2 Gen1, 1 x VGA, 1 x Serial
- Internal Ports: 1 x USB 3.2 Gen1
- PCIe: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile, Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile One dedicated PCIe x8 slot on the system board for internal PERC
- Bezel : security bezel
- Height : 42.8 mm (1.68 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 598.9 mm (23.57 inches) with bezel, 585.3 mm (23.04 inches) without bezel
- Weight: 13.23 kg (29.17 lbs)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R360 INTEL XEON E2414 1U RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R360 Rack Server
- Processor : IntelXeonE-2414 2.6G, 4C/4T, 12M Cache, Turbo, HT (55W) DDR5
- Operating System: No Operating System
- Memory: 16GB UDIMM, 4800MT/s ECC
- Storage: 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot Plug
- RAID: C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5 Chassis with up to 8 Hot Plug Hard Drives, Adapter PERC 11, No BOSS Support
- Front Bays: Up to 4 x 3.5-inch SAS/SATA max 64 TB, Up to 8 x 2.5-inch SAS/SATA max 61.44 TB
- Rear Bays: N/A
- Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
- External Controllers: HBA355e Adpt
- Network Options: 2 x 1 GbE LOM
- Front Ports: 2 x 1GbE LOM, 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.2 Gen1, 1 x VGA, 1 x Serial
- Internal Ports: 1 x USB 3.2 Gen1
- PCIe: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile, Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile One dedicated PCIe x8 slot on the system board for internal PERC
- Bezel : security bezel
- Height : 42.8 mm (1.68 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 598.9 mm (23.57 inches) with bezel, 585.3 mm (23.04 inches) without bezel
- Weight: 13.23 kg (29.17 lbs.)
- Rack Support: Stab-in sliding rails with optional cable management arm (CMA) for 4-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R940XA RACK SERVER
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge R940XA Rack Server
- Socket : Four Socket Server
- Processor : Up to four 2nd Generation Intel Xeon Scalable processors up to 28 cores each
- Memory : 48 DDR4 DIMM slots Supports RDIMM /LRDIMM up to 2933MT/s 6TB max Up to 12 NVDIMM 384GB Max
- Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
- Front Bay : Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
- Internal Controllers : PERC H330 H730P H740P HBA330
- External Controllers : H840 12 Gbps SAS HBA
- Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB 480GB Internal Dual SD Module
- Mobility : OpenManage Mobile
- Power Supplies : Gold 1100W -48VDC Platinum: 1100W 1100W 240VDC2 1600W 2000W 2400W Hot plug power supplies with full redundancy option 6 hot plugs fans with N +1 redundancy
- Network Options : 1x OCP x16 mezz 3.0
- Front Ports : 1 x Dedicated iDRAC Direct Micro-USB 2 x USB 2.0 1 x VGA. (Optional 1 x USB 3.0 only offered on the 8-drive configuration)
- Rear Ports : 1 x Dedicated iDRAC port 1 x Serial 2 x USB 3.0 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : Up to 12 x Gen3 slots (6x16 slots or 2x16 + 10x8 slots)
- Video Card : 2 x VGA
- Accelerator : Up to 4 doublewidth GPUs or up to 4 double-width or 8 single-width full-height FPGAs
- Bezel : Optional LCD bezel or security bezel
- Height : 174.3 mm (6.87 inches)
- Width : 441.16 mm (17.37 inches)
- Depth : 835.9mm (32.9 inches)
- Weight : 56.0kg (123.5lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R840 RACK SERVER
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R840 Rack Server
- Socket : Four Socket Server
- Processor : Up to four 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
- Memory : 48 DDR4 DIMM slots Supports RDIMM /LRDIMM up to 2933MT/s 6TB max Up to 12 NVDIMM 384GB Max
- Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C2 RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
- Front Bay : 0 drive bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
- Internal Controllers : PERC H345 PERC H355 PERC H745 PERC H755 PERC H755N HBA355i S150
- External Controllers : PERC H840 HBA355e
- Internal Boot : Internal Dual SD Module Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs USB
- Mobility : OpenManage Mobile
- Power Supplies : Single Hot-plug Power Supply Non-Redundant (1+0) 800W Mixed Mode NAF
- Network Options : 1x OCP x16 mezz 3.0
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x Ethernet 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Slots : 3 x Gen 4 PCIe slots 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Fans : Standard Fan x5
- Accelerator : Up to 2 doublewidth GPUs or up to 2 full-height FPGAs3
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8mm (3.4 inches)
- Width : 434.0mm (17.8 inches)
- Depth : 835.9mm (32.9 inches)
- Weight : 36.6kg (80.7lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R750XS RACK SERVER
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R750XS Rack Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4310 2.1G 12C/24T 10.4GT/s 18M Cache Turbo HT (120W) DDR4-2666
- Memory : 16GB RDIMM 3200MT/s Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C2 RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA) 1 CPU
- Front Bay : 0 drive bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
- Internal Controllers : PERC H345 PERC H355 PERC H745 PERC H755 PERC H755N HBA355i S150
- External Controllers : PERC H840 HBA355e
- Internal Boot : Internal Dual SD Module Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs USB
- Mobility : OpenManage Mobile
- Power Supplies : Single Hot-plug Power Supply Non-Redundant (1+0) 800W Mixed Mode NAF
- Network Options : 1x OCP x16 mezz 3.0
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x Ethernet 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Slots : 3 x Gen 4 PCIe slots 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Fans : Standard Fan x5
- Bezel : PowerEdge 2U Standard Bezel
- Height : 86.8 mm (3.41 inches)
- Width : 482 mm (18.97 inches)
- Depth : 707.78 mm (27.85 inches)- without bezel and 721.62 mm (28.4 inches)- with bezel
- Weight : 24.8 kg
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R650XS RACK SERVER
- Brand : Dell
- Form Factor : 1U rack server
- Model : PowerEdge R650XS Rack Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4314 2.4G 16C/32T 10.4GT/s 24M Cache Turbo HT (135W) DDR4-2666
- Memory : 16GB RDIMM 3200MT/s Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C7 Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5 Chassis with up to 8 Hard Drives (SAS/SATA) 2 CPU
- Front Bay : 0 drive bay Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB
- Internal Controllers : PERC H355 H345 PERC H745 PERC H755 PERC H755N HBA355I
- External Controllers : PERC H840 HBA355E
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB
- Mobility : OpenManage Mobile
- Power Supplies : 600W Platinum 100–240 VAC or 240 VDC hot swap redundant 700W Titanium 200–240 VAC or 240 VDC hot swap redundant 800W Platinum 100–240 VAC or 240 VDC hot swap redundant 1100W DC/-48–(-60) V 1100W Titanium 100–240 VAC or 240 VDC hot swap redundant 1400W Platinum 100–240 VAC or 240 VDC hot swap redundant 1800W Titanium 200–240 VAC or 240 VDC hot swap redundant
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x Ethernet 1 x VGA
- PCIe : Up to 3 x PCIe Gen4 slots
- Internal Ports : 1 x USB 3.0 (optional)
- Slots : 3 x Gen 4 PCIe slots 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks) ReadyRails static rails for 4-post and 2-post racks Sliding rails with optional strain relief bar (SRB)
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8 mm (3.41 inches)
- Width : 482.0 mm (18.97 inches)
- Depth : 734.95 mm (28.92 inches) – without bezel and 748.79 mm (29.47 inches) – with bezel
- Weight : Max 18.62 kg (41.05 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R550 RACK SERVER
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge R550 Rack Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4310 2.1G 12C/24T 10.4GT/s 18M Cache Turbo HT (120W) DDR4-2666
- Memory : 16GB RDIMM 3200MT/s Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C2 RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA) 2 CPU
- Front Bay : Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68.8 TB
- Internal Controllers : PERC H745 HBA355I H345 H755
- External Controllers : PERC H840 HBA355E
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 1100 W DC/-48 - (60) V 1100W Titanium 100–240 VAC/ 240 VDC 800W Platinum 100–240 VAC/ 240 VDC 700W Titanium 200–240 VAC/240 VDC 600W Platinum 100–240 VAC/ 240 VDC Hot plug power supplies with full redundancy option
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x Ethernet (RJ-45) 1 x VGA 1 x USB 3.0
- PCIe : Up to 4: 2 x Gen3 slots (1 x8; 1 x16) 2 x Gen4 slots (2 x16)
- Internal Ports : 1 x USB 3.0
- Slots : 3 x Gen 4 PCIe slots 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks) ReadyRails static rails for 4-post and 2-post racks Sliding rails with optional strain relief bar (SRB)
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8 mm (3.41 inches)
- Width : 482.0 mm (18.97 inches)
- Depth : 685.78 mm (27 inches) – without bezel and 721.69 mm (28.72 inches) – with bezel
- Weight : 24.8 kg (54.67 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R450 4310 RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R450 Rack Server
- Socket : Two Socket Servers
- Processor : Intel Xeon Silver 4310 2.1G 12C/24T 10.4GT/s 18M Cache Turbo HT (120W) DDR4-2666
- Memory : 16GB RDIMM 3200MT/s Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C7 Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 2 CPU
- Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
- Rear Bay : N/A
- Internal Controllers : PERC H345 PERC H355 PERC H745 PERC H755 HBA355i
- External Controllers : PERC H840 HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 1100 W DC/-48 - (60) V 1100W Titanium 100–240 VAC/ 240 VDC 800W Platinum 100–240 VAC/ 240 VDC 700W Titanium 200–240 VAC/240 VDC 600W Platinum 100–240 VAC/ 240 VDC Hot plug power supplies with full redundancy option
- Fans : Up to seven cold swap fans
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
- Front Ports : 1 x dedicated iDRAC Direct micro-USB 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x USB 2.0 1 x Serial (optional) 1 x USB 3.0 2 x Ethernet 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.68 inches)
- Width : 482 mm (18.97 inches)
- Depth : For 4 x 3.5-inch configuration 748.79 mm (29.48 inches) with bezel 734.95 mm (28.93 inches) without bezel and For 8 x 2.5-inch configuration 698.03 mm (27.48 inches) with bezel 684.19 mm (26.93 inches) without bezel
- Weight : For 4 x 3.5-inch system - 18.62 kg (41.05 Pound.) For 8 x 2.5-inch system - 16.58 kg (36.55 Pound.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R450 RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R450 Rack Server
- Socket : Two Socket Servers
- Processor : Intel Xeon Silver 4309Y 2.8G 8C/16T 10.4GT/s 12M Cache Turbo HT (105W) DDR4-2666
- Memory : 16GB RDIMM 3200MT/s Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C1 No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 1 CPU
- Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
- Rear Bay : N/A
- Internal Controllers : PERC H345 PERC H355 PERC H745 PERC H755 HBA355i
- External Controllers : PERC H840 HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 1100 W DC/-48 - (60) V 1100W Titanium 100–240 VAC/ 240 VDC 800W Platinum 100–240 VAC/ 240 VDC 700W Titanium 200–240 VAC/240 VDC 600W Platinum 100–240 VAC/ 240 VDC Hot plug power supplies with full redundancy option
- Fans : Up to seven cold swap fans
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
- Front Ports : 1 x dedicated iDRAC Direct micro-USB 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x Serial (optional) 1 x USB 3.0 2 x Ethernet 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.68 inches)
- Width : 482 mm (18.97 inches)
- Depth : For 4 x 3.5-inch configuration 748.79 mm (29.48 inches) with bezel 734.95 mm (28.93 inches) without bezel and For 8 x 2.5-inch configuration 698.03 mm (27.48 inches) with bezel 684.19 mm (26.93 inches) without bezel
- Weight : For 4 x 3.5-inch system - 18.62 kg (41.05 Pound.) For 8 x 2.5-inch system - 16.58 kg (36.55 Pound.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R760XS 2CPU RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R760xs Rack Server
- Processor : Intel Xeon Silver 4410Y 2G 12C/24T 16GT/s 30M Cache Turbo HT (150W) DDR5-4000
- Memory : 16GB RDIMM 4800MT/s Single Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 2.5" Chassis with up to 16 Hard Drives (SAS/SATA) 2 CPU PERC11
- Acccelerators : 2 x 75 W SW LP
- Front Bay : 0 drive bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
- Internal Controllers : PERC H965i PERC H755 PERC H755N PERC H355 HBA355i
- External Controllers : HBA355e
- Software RAID : S160
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1 2 x M.2 NVMe SSDs USB
- Mobility : OpenManage Mobile
- Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC hot swap redundant 1100 W LVDC -48 — (-60) VDC hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC hot swap redundant 700 W Titanium 200—240 VAC or 240 HVDC hot swap redundant 600 W Platinum 100—240 VAC or 240 HVDC hot swap redundant
- Fans : Standard (STD) fans High performance SLVR fans or High performance GOLD fans Up to 6 hot swappable fans Network Options : 2 x 1 GbE LOM
- Network Options : 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4 2 x8 Gen5 1 x8 Gen4) 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4 2 x8 Gen5 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4 1 x8 Gen4 2 x16 Gen5)
- Rack Support : ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 86.80 mm (3.41 in.)
- Width : 482 mm (18.97 in)
- Depth : 707.78 mm (27.85 in) – without bezel and 721.62 mm (28.4 in) – with bezel
- Weight : Max 28.6 kg (63.0 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R760XS RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R760xs Rack Server
- Processor : Intel Xeon Silver 4410Y 2G 12C/24T 16GT/s 30M Cache Turbo HT (150W) DDR5-4000
- Memory : 16GB RDIMM 4800MT/s Single Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 2.5" Chassis with up to 16 Hard Drives (SAS/SATA) 1 CPU PERC11
- Acccelerators : 2 x 75 W SW LP
- Front Bay : 0 drive bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
- Internal Controllers : PERC H965i PERC H755 PERC H755N PERC H355 HBA355i
- External Controllers : HBA355e
- Software RAID : S160
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1 2 x M.2 NVMe SSDs USB
- Mobility : OpenManage Mobile
- Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC hot swap redundant 1100 W LVDC -48 — (-60) VDC hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC hot swap redundant 700 W Titanium 200—240 VAC or 240 HVDC hot swap redundant 600 W Platinum 100—240 VAC or 240 HVDC hot swap redundant
- Fans : Standard (STD) fans High performance SLVR fans or High performance GOLD fans Up to 6 hot swappable fans Network Options : 2 x 1 GbE LOM
- Network Options : 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4 2 x8 Gen5 1 x8 Gen4) 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4 2 x8 Gen5 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4 1 x8 Gen4 2 x16 Gen5)
- Rack Support : ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 86.80 mm (3.41 in.)
- Width : 482 mm (18.97 in)
- Depth : 707.78 mm (27.85 in) – without bezel and 721.62 mm (28.4 in) – with bezel
- Weight : Max 28.6 kg (63.0 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R250 RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R250 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2314 2.8GHz 8M Cache 4C/4T Turbo (65W) 3200 MT/s
- Memory : 16GB UDIMM 3200MT/s ECC
- Operating System : No Operating System
- Storage : 1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
- Raid : C20 No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed)
- Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
- Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) Max 80TB for 4HDD configuration Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H345 PERC H755 HBA355i
- External Controllers : HBA355e 12 Gbps SAS Ext. HBA
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze 100-240 VAC cabled 450 W Platinum 100-240 VAC cabled 700 W Titanium 100-240 V AC cabled, 700 W
- 240 V DC cabled Cabled power supplies
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB 1 x USB 2.0
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel
- Height : 42.8 mm (1.68 inch)
- Width : 482 mm (18.97 inch)
- Depth : 598.64 mm (23.56 inch) with bezel and 585 mm (23.02 inch) without bezel
- Weight : 12.48 kg (27.51 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 12 Month(s)
DELL POWEREDGE R250 G6405T 1TB RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R250 Rack Server
- Socket : One Socket Server
- Processor : Intel Pentium G6405T 3.5GHz 4M Cache 2C/4T No Turbo (35W) 2666 MT/s
- Memory : 8GB UDIMM 3200MT/s ECC
- Operating System : No Operating System
- Storage : 1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
- Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
- Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) Max 80TB for 4HDD configuration Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H345 PERC H755 HBA355i
- External Controllers : HBA355e 12 Gbps SAS Ext. HBA
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze 100-240 VAC cabled 450 W Platinum 100-240 VAC cabled 700 W Titanium 100-240 V AC cabled 700 W 240 V DC cabled Cabled power supplies
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB 1 x USB 2.0
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel
- Height : 42.8 mm (1.68 inch)
- Width : 482 mm (18.97 inch)
- Depth : 598.64 mm (23.56 inch) with bezel and 585 mm (23.02 inch) without bezel
- Weight : 12.48 kg (27.51 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 12 Month(s)
DELL POWEREDGE R250 E2324G 2TB RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R250 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz 8M Cache 4C/4T Turbo (65W) 3200 MT/s
- Memory : 16GB UDIMM 3200MT/s ECC
- Operating System : Windows Server 2022 Standard16CORE FI No Med No CAL Multi Language
- Storage : 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hard Drive
- Raid : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
- Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) Max 80TB for 4HDD configuration Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H345 PERC H755 HBA355i
- External Controllers : HBA355e 12 Gbps SAS Ext. HBA
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze 100-240 VAC cabled 450 W Platinum 100-240 VAC cabled 700 W Titanium 100-240 V AC cabled 700 W 240 V DC cabled Cabled power supplies
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB 1 x USB 2.0
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel
- Height : 42.8 mm (1.68 inch)
- Width : 482 mm (18.97 inch)
- Depth : 598.64 mm (23.56 inch) with bezel and 585 mm (23.02 inch) without bezel
- Weight : 12.48 kg (27.51 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R660XS RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R660XS Rack Server
- Processor : Intel Xeon Silver 4410Y 2G 12C/24T 16GT/s 30M Cache Turbo HT (150W) DDR5-4000
- Memory : 16GB RDIMM 4800MT/s Single Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 2 CPU PERC 11
- Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H965i PERC H755 PERC H755N PERC H355 HBA355i
- External Controllers : HBA355e
- Software RAID : S160
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1 2 x M.2 NVMe SSDs (cold swap) USB
- Mobility : OpenManage Mobile
- Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC hot swap redundant 1100 W LVDC -48 — (-60) VDC hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC hot swap redundant 700 W Titanium 200—240 VAC or 240 HVDC hot swap redundant 600 W Platinum 100—240 VAC or 240 HVDC hot swap redundant
- fans : Standard (STD) fans High performance SLVR fans or High performance GOLD fans Up to 7 hot swappable fans
- Network Options : 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5) 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.68 inches)
- Width : 19.45 Kg (55.33 pound)
- Depth : 712.95 mm (28.05 inches) without bezel 748.79 mm (29.85 inches) with bezel
- Weight : Max 13.14 kg (28.96 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R350 480GB SSD RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R350 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz 8M Cache 4C/4T Turbo (65W) 3200 MT/s
- Memory : 8GB UDIMM 3200MT/s ECC
- Operating System : No Operating System
- Storage : 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive 3 DWPD
- Raid : C7 Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) Max 80TB for 4 HDD configurations
- Internal Controllers : PERC H345 PERC H745 HBA355i PERC H345f PERC H745f HBA355f
- External Controllers : HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs Internal Dual SD Module or Internal USB
- Mobility : OpenManage Mobile
- Power Supplies : 600 W Platinum AC/100 - 240 V 600 W DC/240 V 700 W Titanium AC/100 - 240 V 700 W DC/240 V Hot swap power supplies with full redundancy option
- Network Options : 2 x 1GbE LOM
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 2 x Ethernet 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 3 x PCIe Gen4 slots
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.7 inches)
- Width : 482.0 mm (18.98 inches)
- Depth : 598.94 mm (23.58 inches) with bezel 585.3 mm (23.04 inches) without bezel
- Weight : Max 13.14 kg (28.96 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 12 Month(s)
DELL POWEREDGE R350 RACK SERVER
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R350 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz 8M Cache 4C/4T Turbo (65W) 3200 MT/s
- Memory : 8GB UDIMM 3200MT/s ECC
- Operating System : No Operating System
- Storage : 1.2TB Hard Drive ISE SAS 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C1 No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) Max 80TB for 4 HDD configurations
- Internal Controllers : PERC H345 PERC H745 HBA355i PERC H345f PERC H745f HBA355f
- External Controllers : HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs Internal Dual SD Module or Internal USB
- Mobility : OpenManage Mobile
- Power Supplies : 600 W Platinum AC/100 - 240 V 600 W DC/240 V 700 W Titanium AC/100 - 240 V 700 W DC/240 V Hot swap power supplies with full redundancy option
- Network Options : 2 x 1GbE LOM
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0
- Rear Ports : 1 x USB 2.0 1 x USB 3.0 2 x Ethernet 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 3 x PCIe Gen4 slots
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.7 inches)
- Width : 482.0 mm (18.98 inches)
- Depth : 598.94 mm (23.58 inches) with bezel 585.3 mm (23.04 inches) without bezel
- Weight : Max 13.14 kg (28.96 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 12 Month(s)
DELL POWEREDGE R660 RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R660 Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU, PERC 11
- Front Bays: Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 179.2 TB, Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 204.8 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB, Up to 2 x EEDSFF E3.S Gen5 NVMe (SSD) max 25.6 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e, PERC H965e
- Network Options: 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)Note: The system allows either LOM card or an OCP card can be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x Video
- Rear Ports: 1 x Dedicated iDRAC Ethernet port , 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: Up to three PCIe slots: Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length, Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length, Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 42.8 mm (1.68 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 822.88 mm (32.39 inches) with bezel, 809.04 mm (31.85 inches) without bezel
- Weight: Max 22.51 kg (49.62 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.
- Note: CMA is not supported in Direct Liquid Cooling configuration.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R7525 24 CORE RACK SERVER
- CPU : 2Nos AMD 7352 2.30GHz 24Core/48Threads 128MB Cache 155Watts 3200
- Max Memory : 32DIMMS
- Memory : 2 x 32GB RDIMM
- Max HDD Scalability : 16X 2.5 SAS/SATA with XGMI
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single Hot-plug Power Supply Non Redundant(1+0) 1400W Mixed Mode
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R7525 16 CORE RACK SERVER
- CPU : 2Nos AMD EPYC 7282 2.80GHz 16Core/32Threads 64MB Cache (120Watts) DDR4-3200
- Max Memory : 32DIMMS
- Memory : 2 x 32GB RDIMM
- Max HDD Scalability : 16X 2.5 SAS/SATA with XGMI
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single Hot-plug Power Supply Non Redundant(1+0) 1400W Mixed Mode
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R7525 8 CORE RACK SERVER
- CPU : 2Nos AMD EPYC 7252 3.10GHz 8Core/16Threads 64MB Cache (120Watts) DDR4-3200
- Max Memory : 32DIMMS
- Memory : 2 x 16GB RDIMM
- Max HDD Scalability : 8X 3.5 SAS/SATA with XGMI
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in with 3.5in HYB CARR
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single Hot-plug Power Supply (1+0) 1400W Mixed Mode
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R6525 24 CORE RACK SERVER
- CPU : 2Nos AMD 7352 2.30GHz 24Core/48Threads 128MB Cache 155Watts 3200
- Max Memory : 32DIMMS
- Memory : 2 x 16GB RDIMM
- Max HDD Scalability : Chassis with up to 8 x 2.5" Hot Plug Hard Drives (2CPU & XGMI)
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in with 3.5in HYB CARR
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single Hot-plug Power Supply (1+0) 1400W Mixed Mode
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R6525 8 CORE RACK SERVER
- CPU : 2Nos AMD EPYC 7252 3.10GHz 8Core/16Threads 64MB Cache (120Watts) DDR4-3200
- Max Memory : 32DIMMS
- Memory : 2 x 16GB RDIMM
- Max HDD Scalability : Chassis with up to 8 x 2.5" Hot Plug Hard Drives (2CPU & XGMI)
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in with 3.5in HYB CARR
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single Hot-plug Power Supply (1+0) 1400W Mixed Mode
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R6515 24 CORE RACK SERVER
- CPU : AMD 7352 2.30GHz 24Core/48Threads 64MB Cache (120Watts) DDR4-3200
- Max Memory : 16DIMMS
- Memory : 1 x 32GB RDIMM
- Max HDD Scalability : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H330 RAID Controller
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0) 550W
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R6515 8 CORE RACK SERVER
- CPU : AMD EPYC 7252 3.10GHz 8Core/16Threads 64MB Cache (120Watts) DDR4-3200
- Max Memory : 16DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H330 RAID Controller
- POWER SUPPLY : Single Hot-plug Power Supply (1+0) 550W
- System Management : iDRAC9 Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
DELL POWEREDGE R750XA RACK SERVER
- Part No : R750xa
- Rack Units : 2U
- CPU Socket(s) : Up to two 3rd Generation Intel Xeon Scalable processors with up to 40 cores per processor
- Memory Slot(s) : Up to 8 channels of memory per processor 32x DDR4 3200MHz DIMM Slots
- Memory Capacity : 8TB
- Drive Bays : Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 6 x 2.5-inch NVMe (SSD) direct-attach max 92.1 TB
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
- Internal SATA Controller : PERC H745 HBA355I H345 H755 H755N
- External SATA Controllers : PERC H840 HBA355E
- Supported OS : Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
- USB Port(s) : Front: iDRAC dedicated micro-USB 1x USB 2.0 Rear: 1 x USB 3.0 1 x USB 2.0
- PCI Slot(s) : Up to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8)
- Serial Ports : 1x
- LAN Socket(s) : 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) 2 x RJ-45
DELL POWEREDGE R750 RACK SERVER
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R750 Intel Xeon Silver 4309Y Rack Server
- Processor : IntelXeonSilver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 16 SAS/SATA Drives, 2 CPU
- Front Bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB, Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
- Internal Controllers: PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
- Bezel : Optional LCD bezel or security bezel
DELL POWEREDGE R540 GOLD RACK SERVER
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Gold 5218R 2.1GHz 20Core/40T 10.4GT/s 27.5M Cache Turbo HT (125Watts) Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 32GB RDIMM
- Max HDD Scalability : Up to 12 3.5in Hot Plug Hard Drives and 2 x 3.5in Rear Drives
- HARD DISK : 2 X 4TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller Adapter Low Profile
- POWER SUPPLY : Dual Hot-plug Redundant Power Supply 750Watts
- System Management : iDRAC9 Enterprise
- WARRANTY : 3Years ProSupport 4Hours and Mission Critical
DELL POWEREDGE R650 RACK SERVER
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R650 Intel Xeon Silver 4309Y Rack Server
- Processor : Intel Xeon Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 1 PCIe Slot, 1 CPU
- Front Bays: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB, Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
- Internal Controllers: PERC H745, H345, HBA355I, H755, H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
- Bezel : Optional LCD bezel or security bezel
- Height: 42.8 mm (1.68 inches)
- Width: 482 mm (18.97 inches)
- Depth: 809 mm (31.85 inches) – without bezel, 822.84 mm (32.39 inches) – with bezel
- Weight: 21.2 kg (46.7 lbs)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
DELL POWEREDGE R6515 RACK SERVER
- Front Storage : Chassis with up to 8x2.5" Drives
- Motherboard : PowerEdge R6515 Motherboard with 2 x 1Gb Onboard LOM (BCM5720) V2
- Trusted Platform Module : Trusted Platform Module 2.0
- Chassis Configuration : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Processor : AMD EPYC 7282 2.80GHz 16C/32T 64M Cache (120W) DDR4-3200
- Processor Thermal Configuration : Heatsink for CPU less than 180W
- Fans : Standard Fan
- Memory DIMM Type and Speed : 3200MT/s RDIMMs
- Memory Configuration Type : Performance Optimized
- Memory Capacity : (2) 32GB RDIMM 3200MT/s, Dual Rank 8Gb BASE
- RAID Configuration : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- RAID/Internal Storage Controllers : PERC H730P RAID Controller 2GB NV Cache Minicard
- Hard Drives : (2) 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- Ethernet Mezzanine Adapters : Broadcom 5720 Dual Port 1 GbE Network LOM Mezz Card
- PCIe Riser : Riser Config 2 2x16 LP PCIe slot
- Additional Network Adapters : PCIe Blank Filler R6515 / R7515
- Rack Rails : ReadyRails Sliding Rails With Cable Management Arm
- Bezel : LCD Bezel for x4 and x8 chassis
- Quick Sync : No Quick Sync
- Internal Optical Drive : DVD +/-RW SATA, Internal
- Power Supply : Dual Hot Plug Redundant Power Supply (1+1) 550W
- Power Cords : (2) Jumper Cord - C13/C14 4M 250V 10A (India BIS); (2) Power Cord - C13 1.8M 250V 10A (India)
- Embedded Systems Management : iDRAC9 Enterprise 15G
- Group Manager : iDRAC Group Manager Enabled
- Password : iDRAC Factory Generated Password
- BIOS and Advanced System Configuration Settings : Performance BIOS Setting
- Advanced System Configurations : UEFI BIOS Boot Mode with GPT Partition
- Dell Services: Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
- Deployment Services : Basic Deployment Dell Server R Series 1U/2U
- System Documentation : No Systems Documentation No OpenManage DVD Kit
DELL POWEREDGE R540 SILVER RACK SERVER
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Silver 4210R 2.4G 10Core/20T 9.6GT/s 13.75M Cache Turbo HT (100Watts) DDR4-2400 Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : Up to 8 3.5in Hot Plug Hard Drives
- HARD DISK : 1 x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller Adapter Low Profile
- POWER SUPPLY : Dual Hot-plug Redundant Power Supply 495Watts
- System Management : iDRAC9 Enterprise
- WARRANTY : 3Years ProSupport 4Hours and Mission Critical
DELL POWEREDGE R540 BRONZE RACK SERVER
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Bronze 3204 1.92GHz 6Core/6T 9.6GT/s 8.25MB Cache No Turbo No HT (85Watts) Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 8GB RDIMM
- Max HDD Scalability : Up to 8 3.5in Hot Plug Hard Drives and Software RAID
- HARD DISK : 1 x 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- RAID InBuilt : SW RAID
- POWER SUPPLY : Single Hot-Plug Power Supply 495Watts
- System Management : iDRAC9 Enterprise
- WARRANTY : 3Years ProSupport and Next Business Day Onsite
DELL POWEREDGE R440 RACK SERVER
- Form Factor : 1U Rack Model
- Model : PowerEdge R440
- CPU : Intel Xeon Bronze 3206R 1.9GHz 8Core/8T 9.6GT/s 11MB Cache No Turbo No HT (85W) DDR4-2400 Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : 3.5in Chassis with up to 4 Hot Plug Hard Drives
- HARD DISK : 1 x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller Adapter Low Profile
- POWER SUPPLY : Single Hot-plug Power Supply (1+0) 550Watts
- System Management : iDRAC9 Enterprise
- WARRANTY : 3Years ProSupport 4Hours Mission Critical
DELL POWEREDGE R340 RACK SERVER
- Form Factor : Rack Model
- Model : PowerEdge R340 Server
- Processor : Intel Xeon E-2224 3.4GHz 8M cache 4C/4T turbo (71W)
- Processor Thermal Configuration : Heatsink for 80W or less CPU
- Motherboard : PowerEdge R340 MLK Motherboard
- Trusted Platform Module (TPM) : No Trusted Platform Module
- Chassis Configuration : 3.5" Chassis with up to 4 Hot Plug Hard Drives and Software RAID
- Memory DIMM Type and Speed : 2666MT/s UDIMMs
- Memory Configuration Type : Performance Optimized
- Memory Capacity : 16GB 2666MT/s DDR4 ECC UDIMM
- RAID Configuration : C20 No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed)
- RAID/Internal Storage Controllers : No Controller
- Hard Drives : 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- SATA HDD Info : SATA HDD purchased with Dell Basic HW support carries 1 yr limited HW wrty
- Embedded Systems Management : iDrac9 Express
- PCIe Riser : No PCIe Riser
- Additional Network Cards : On-Board Broadcom 5720 Dual Port 1Gb LOM
- Power Supply : Single Hot-plug Power Supply (1+0) 550W
- Power Cords : Power Cord - C13 1.8M 250V 10A (India)
- Bezel : No Bezel
- Group Manager : iDRAC Group Manager, Disabled
- Password : iDRAC,Factory Generated Password
- BIOS and Advanced System Configuration Settings : Performance BIOS Setting
- Advanced System Configurations : UEFI BIOS Boot Mode with GPT Partition
- Operating System : No Operating System
- Dell Services: Hardware Support : Basic Next Business Day 12 Months 12 Month(s)
- Dell Services:Deployment Services : No Installation Services Selected
- Rack Rails : No Rack Rails or Cable Management Arm
- Internal Optical Drive : No Internal Optical Drive
DELL POWEREDGE R240 RACK SERVER
- Form Factor : Rack Model
- Model : PowerEdge R240
- CPU : Intel Xeon E-2224 3.4GHz 8M cache 4Core/4T turbo (71W) Processor
- Max Memory : 4 DIMMS
- Memory : 1 x 8GB UDIMM
- Max HDD Scalability : Up to 4 3.5" Cabled Hard Drives and Software RAID
- HARD DISK : 1 x 1TB 7.2K RPM SATA Entry 3.5in Cabled Hard Drive
- RAID InBuilt : SW RAID
- RAID InBuilt : Onboard
- POWER SUPPLY : Single Cabled Power Supply 250Watts
- System Management : iDRAC9 Enterprise
- WARRANTY : 3Years Pro Support Next Business Day Onsite
DELL POWEREDGE R6515 RACK SERVER
- Brand : Dell
- Front Storage : Chassis with up to 8x2.5" Drives
- Motherboard : PowerEdge R6515 Motherboard with 2 x 1Gb Onboard LOM (BCM5720) V2
- Trusted Platform Module : Trusted Platform Module 2.0
- Chassis Configuration : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Processor : AMD EPYC 7282 2.80GHz 16C/32T 64M Cache (120W) DDR4-3200
- Processor Thermal Configuration : Heatsink for CPU less than 180W
- Fans : Standard Fan
- Memory DIMM Type and Speed : 3200MT/s RDIMMs
- Memory Configuration Type : Performance Optimized
- Memory Capacity : (2) 32GB RDIMM 3200MT/s Dual Rank 8Gb BASE
- RAID Configuration : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- RAID/Internal Storage Controllers : PERC H730P RAID Controller 2GB NV Cache Minicard
- Hard Drives : (2) 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- Ethernet Mezzanine Adapters : Broadcom 5720 Dual Port 1 GbE Network LOM Mezz Card
- PCIe Riser : Riser Config 2 2x16 LP PCIe slot
- Additional Network Adapters : PCIe Blank Filler R6515 / R7515
- Rack Rails : ReadyRails Sliding Rails With Cable Management Arm
- Bezel : LCD Bezel for x4 and x8 chassis
- Quick Sync : No Quick Sync
- Internal Optical Drive : DVD +/-RW SATA Internal
- Power Supply : Dual Hot Plug Redundant Power Supply (1+1) 550W
- Power Cords : (2) Jumper Cord - C13/C14 4M 250V 10A (India BIS); (2) Power Cord - C13 1.8M 250V 10A (India)
- Embedded Systems Management : iDRAC9 Enterprise 15G
- Group Manager : iDRAC Group Manager Enabled
- Password : iDRAC Factory Generated Password
- BIOS and Advanced System Configuration Settings : Performance BIOS Setting
- Advanced System Configurations : UEFI BIOS Boot Mode with GPT Partition
- Dell Services: Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
- Deployment Services : Basic Deployment Dell Server R Series 1U/2U
- System Documentation : No Systems Documentation No OpenManage DVD Kit
DELL POWEREDGE R540 GOLD RACK SERVER
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Gold 5218R 2.1GHz, 20Core/40T, 10.4GT/s, 27.5M Cache, Turbo, HT (125Watts) Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 32GB RDIMM
- Max HDD Scalability : Up to 12, 3.5in Hot Plug Hard Drives and 2 x 3.5in Rear Drives
- HARD DISK : 2 X 4TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Low Profile
- POWER SUPPLY : Dual, Hot-plug, Redundant Power Supply, 750Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport 4Hours and Mission Critical
DELL POWEREDGE R540 SILVER RACK SERVER
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Silver 4210R 2.4G, 10Core/20T, 9.6GT/s, 13.75M Cache, Turbo, HT (100Watts) DDR4-2400 Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : Up to 8, 3.5in Hot Plug Hard Drives
- HARD DISK : 1 x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Low Profile
- POWER SUPPLY : Dual, Hot-plug, Redundant Power Supply, 495Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport 4Hours and Mission Critical
DELL POWEREDGE R340 RACK SERVER
- Form Factor : Rack Model
- Model : PowerEdge R340 Server
- Processor : Intel Xeon E-2224 3.4GHz, 8M cache, 4C/4T, turbo (71W)
- Processor Thermal Configuration : Heatsink for 80W or less CPU
- Motherboard : PowerEdge R340 MLK Motherboard
- Trusted Platform Module (TPM) : No Trusted Platform Module
- Chassis Configuration : 3.5" Chassis with up to 4 Hot Plug Hard Drives and Software RAID
- Memory DIMM Type and Speed : 2666MT/s UDIMMs
- Memory Configuration Type : Performance Optimized
- Memory Capacity : 16GB 2666MT/s DDR4 ECC UDIMM
- RAID Configuration : C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed)
- RAID/Internal Storage Controllers : No Controller
- Hard Drives : 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- SATA HDD Info : SATA HDD purchased with Dell Basic HW support carries 1 yr limited HW wrty
- Embedded Systems Management : iDrac9, Express
- PCIe Riser : No PCIe Riser
- Additional Network Cards : On-Board Broadcom 5720 Dual Port 1Gb LOM
- Power Supply : Single, Hot-plug Power Supply (1+0), 550W
- Power Cords : Power Cord - C13, 1.8M, 250V, 10A (India)
- Bezel : No Bezel
- Group Manager : iDRAC Group Manager, Disabled
- Password : iDRAC,Factory Generated Password
- BIOS and Advanced System Configuration Settings : Performance BIOS Setting
- Advanced System Configurations : UEFI BIOS Boot Mode with GPT Partition
- Operating System : No Operating System
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services:Deployment Services : No Installation Services Selected
- Rack Rails : No Rack Rails or Cable Management Arm
- Internal Optical Drive : No Internal Optical Drive
DELL POWEREDGE R6515 RACK SERVER
- Brand: Dell
- MODEL: POWEREDGE R6515 RACK SERVER
- CPU: AMD 7302P 3GHz,16C/32T,128M,155W
- Max Memory: 16 DIMMS
- Memory: 1 x 32GB RDIMM
- Max HDD Scalability: 2.5inch Chassis with up to 8 Hot Plug Hard Drives
- HARD DISK: 1 x 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID Inbuilt: PERC H330 RAID Controller
- OPTICAL: No Internal Optical Drive
- POWER SUPPLY: Dual, Hot Plug, RPS, 550W
- System Management : iDRAC9,Enterprise
- WARRANTY: 3YR Pro Support Next Business Day Onsite Service
DELL POWEREDGE R7515 RACK SERVER
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R7515 Rack Server
- Socket : One Socket Server
- Processor : One 2nd or 3rd Generation AMD EPYC Processor with up to 64 cores
- Memory : Up to 3200MT/s
- Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
- Storage : SSD 480 GB (hot-swap) - SATA 6Gb/s - 2.5
- Raid : C3 RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Front Bay : Up to 8 x 3.5” hot plug SATA/SAS (HDD) Up to 12 x 3.5” hot plug SAS/SATA (HDD) Up to 24 x 2.5” hot plug SATA/SAS/NVMe
- Rear Bay : Up to 2 x 3.5” hot plug SAS/SATA (HDD)
- Internal Controllers : PERC HBA330 H330 H730P H740P
- External Controllers : H840 12Gbps SAS HBA
- Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SATA SSDs
- Mobility : OpenManage Mobile
- Power Supplies : 1600W Platinum
- Network Options : 2 x 1GbE 2 x 10GbE BT 2 x 10GbE SFP+ 2 x 25GbE SFP28
- Front Ports : 1 x Dedicated iDRAC direct micro-USB 2 x USB 2.0 1 x Video
- Rear Ports : 2 x 1GbE 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video
- PCIe : Up to 4: 2 x Gen3 slots (1 x8; 1 x16) 2 x Gen4 slots (2 x16)
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8mm (3.42)
- Width : 434.0mm (17.09)
- Depth : 647.1mm (25.48)
- Weight : 27.3 kg (60.19lb)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service 36 Month(s)
DELL POWEREDGE R740XD2 RACK SERVER
- Brand: Dell
- MODEL: POWEREDGE R740XD2 RACK SERVER
- Form Factor: 2U rack server
- Processors: Up to two 2nd Generation Intel Xeon Scalable processors, up to 22 cores each
- Memory: 16 DDR4 RDIMM slots, up to 2933 MT/s, 1TB max, Supports registered ECC DDR4 DIMMs only
- Storage controllers: Internal Controllers: PERC H330, HBA330, H730P, H740P, External Controllers (RAID): 12Gbps SAS HBA, HBA355e, HBA350i, Software RAID:S140, Internal Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB, Internal Dual SD Module
- Drive bays: Front drive bays: Up to 24 x 3.5” SAS/SATA (HDD) max 384TB, or up 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS/SATA (SSD)2 max 317.44TB
- Rear drive bays: Up to 2 x 3.5” SAS/SATA (HDD) max 32TB or up to 2 x 2.5” SAS/SATA (SSD) max 15.36TB
- Bezel: Optional bezel or security bezel
- Power supplies: 750W Platinum, 750W 240VDC Platinum, 1100W Platinum, 1100W 380VDC Platinum, Hot plug power supplies with full redundancy option, 6 fans with N +1 redundancy
- Height: 86.8mm (3.4 in)
- Width: 448.0mm (17.6 in)
- Depth: 810.0mm (31.9 in)
- Weight: 40.0kg (88.2lbs)
- Warranty: 3 Years Onsite Warranty
DELL POWEREDGE R740XD RACK SERVER
- BRAND: DELL
- MODEL: POWEREDGE R740 RACK SERVER
- Form Factor: 2U rack server
- Processor: 28 Cores, 2 x Gen2 Intel Xeon Scalable
- Memory: 3TB, 24 ECC DDR4 RDIMM/LRDIMM 2933Mhz, Up to 12 NVDIMM, 192 GB Max
- Storage: Front Bay Storage: 144TB LFF, 153TB SFF
- Front bays: 12x LFF SAS/NL-SAS/SATA (HDD/SSD)
- Mid bay: 4x LFF or 4x SFF SAS/NL-SAS//SATA (HDD/SSD) NVMe
- Rear bay: 2x LFF or 4x SFF SAS/SATA (HDD/SSD) NVMe
- Boot Options: Boot Optimized Server Storage (BOSS-S1), Internal Dual SD module (IDSDM) w/ a 16GB vFlash card
- RAID Controller: S140 (software RAID), H730P, H740P, H840, H750, HBA330, HBA350i, HBA355e, 12Gbps SAS HBA
- NIC/LOM: 4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE, 2x 25GbE NDC(Many Options to choose from)
- Remote Management: iDRAC9 Express (default) with Lifecycle Controller
- PCIe Slots: Up to 8 PCIe Gen 3 slots, maximum of 4x 16 slots
- GPU: Available only on 24x 2.5 chassis, Up to (3) 300W GPUs, Up to (6) 150W GPUs, Up to (3) double-width FPGAs, Up to (4) single-width FPGAs
- Warranty: 3 Years Onsite Warranty
DELL POWEREDGE R740 RACK SERVER
- BRAND: DELL
- MODEL: POWEREDGE R740 RACK SERVER
- Form Factor: 2U rack server
- Processor: 28 Cores, 2 x Intel Xeon Scalable
- Memory: 3TB, Pmem 6.14TB, 7.68TB Pmem + LRDIMM, 24 ECC DDR4 RDIMM/LRDIMM 2933Mhz, Up to 12 NVDIMM, 192 GB Max, Up to 12 Intel® Optane™ DC persistent memory PMem
- Storage: 122.88TB, 128TB, 8x LFF or 16x SFF SAS/SATA (HDD/SSD)
- Boot Options: Boot Optimized Server Storage (BOSS-S1), Internal Dual SD module (IDSDM), (16/32/64 GB) and vFlash card (16 GB)
- RAID Controller: S140 (software RAID), H330, H730P, H740P, HBA330, H840, 12Gbps SAS HBA
- NIC/LOM: 4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE, 2x 25GbE NDC(Many Options to choose from)
- Remote Management: iDRAC9 Express (default) with Lifecycle Controller
- PCIe Slots: Up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
- GPU: Up to (3) 300W GPUs, Up to (6) 150W GPUs, Up to (3) double-width FPGAs, Up to (4) single-width FPGAs
- Warranty: 3 Years Onsite Warranty
