POLYCOM REALPRESENCE TRIO 8500 SKYPE FOR BUSINESS
Product description
The Polycom Trio 8500 Conference Phone that comes preloaded with everything you need to get seamless integration with Skype for Business and Office 365 Cloud PBX. The Trio 8500 is Microsoft-certified for use with their unified communications platform. When used with Skype for Business, the Trio displays the familiar Skype interface and supports Skype features.Its 5-inch color touch screen and intuitive navigation make it simpler resulting in fewer mistakes, quick starts for every meeting and minimal training requirements.
With a 14-feet pickup range and advanced audio technology such as enhanced Polycom® HD Voice and the patented NoiseBlock, the phone is the ideal solution for any meeting space that needs the best audio experience. It has a Gigabit Ethernet port for future-proof speed, as well as PoE support for simplifying your infrastructure and 5-way local conferencing makes group collaboration even easier. The Phone comes with Built-in power over Ethernet.
Features:
- Corded Voice Over IP Conference Phone
- Skype For Business
- High Definition Audio Technology
- Up To 14' Range
- SIP Voice Over Internet Protocol (VoIP)
- Built-In HTTP Server
- 3-Line Operation
- Acoustic Clarity Technology
- 360-Degree Microphone Coverage
- Patented Polycom NoiseBlock
- 5.0" TouchScreen Display
- Speakerphone
- Bluetooth 4.0
- Up To 5-Way Conferencing\
- Dual USB Port
- Call Forwarding, Call Transfer
- IEEE 802.3af Power over Ethernet (PoE) Support
- 2 x 10/100/1000 Gigabit Ethernet Ports
Supported Bluetooth Profiles:
- Advanced Audio Distribution Profile (A2DP)
- Hands-Free Profile (HFP)
Ports:
- 1x Micro USB 2.0/3.0
- RealPresence Group Microphone
Three Cardioid Mics
For Small to Mid-Size Conference Rooms
POLYCOM REALPRESENCE TRIO 8800 IP CONFERENCE PHONE
Overview:
Polycom RealPresence Trio 8800
The Polycom RealPresence Trio 8800 brings voice, video and content sharing together into one collaborative hub. Use the phone as an audio conferencing solution, with HD Voice and NoiseBlock technologies enhancing voice quality. Connect the conference phone to your network via Ethernet or WiFi. All of the phone’s features can be accessed through the intuitive five-inch touchscreen, with additional microphone mute buttons located on each of the three arms.
Bring your own device to the meeting with Bluetooth and USB. The Polycom Trio wirelessly connects to your smartphone or tablet via Bluetooth with NFC, or to a computer or laptop via USB. The available Trio Visual+ Accessory is required to enable the video and content sharing capabilities of the phone. With this accessory, the phone is able to access a camera and facilitate virtual collaboration. Optional expansion microphones are also available.

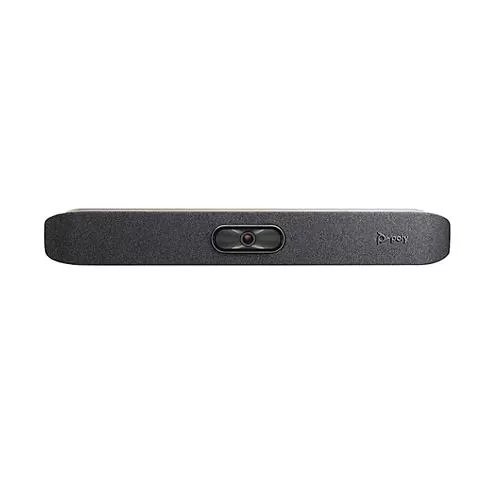

POLY STUDIO X50 VIDEO CONFERENCING SYSTEM
- VIDEO STANDARDS AND PROTOCOLS: H.264 AVC H.264 High Profile H.265
- Output: UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
- VIDEO INPUT: 1x HDMI
- VIDEO OUT: 2x HDMI
- Touch display compatible
- OTHER INTERFACES: 2x USB A (3.0)
- 1x USB C
- Bluetooth 5.0
- WiFi 802.11a/b/g/n/ac (MIMO)
- Multi channel Concurrency
- AUDIO STANDARDS AND PROTOCOLS
- 22 kHz bandwidth with Polycom Siren
- 22 technology AAC-LD (TIP calls) G.719
- 14 kHz bandwidth with Polycom Siren
- 14 technology G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- CONTENT SHARING:
- Poly content app
- Apple Airplay
- Miracast
- HDMI input
- Whiteboarding
- PEOPLE VIDEO RESOLUTION: 4K, 30 fps (TX and RX) from 2048 Kbps
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- CAMERA: 5x digital zoom
- 120° FOV
- UHD 2160p (4K) capture resolution
- Automatic people framing
- NETWORK: IPv4
- 1x 10/100/1G Ethernet
- Auto MDIX
- H.323 and/or SIP up to 6 Mbps running
- Poly Video App
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic bandwidth allocation
- Reconfigurable MTU size
- Web proxy support: Basic Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- CONTENT VIDEO RESOLUTION:
- Input: UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
- AUDIO INPUT: 3x MEMS microphones plus 2x
- 2nd order microphones
- 1x HDMI
- 1x 3.5 mm line in
- AUDIO OUTPUT:
- Stereo speakers
- 1x 3.5 mm line out
- SECURITY: Media encryption (H.323 SIP):
- AES 128 AES 256
- H.235.6 support
- Authenticated access to admin menus
- web interface and API
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- Active directory external authentication
- ELECTRICAL: Auto sensing power supply
- Typical operating voltage/power
- 37 VA 120 V 60 Hz
- 37 VA 230 V 50/60 Hz
- Typical BTU/h: 65
- ENVIRONMENTAL SPECIFICATION:
- Operating temperature: 0 to 40°C
- Operating humidity (non condensing): 15 to 80%
- Non operating temperature: -40 to 70°C
- Non operating humidity (non condensing): 5 to 95%
- Maximum altitude: 16,000 ft
- OPTIONS: VESA mount kit, Stand
- Poly TC8
- PHYSICAL CHARACTERISTICS:
- 30 W x 4 H x 4 D (Inches)
- 762 W x 102 H x 102 D (MM)
- 5.6 lbs/2.54 kg
- INTEROPERABILITY: Support for native 3rd party applications,including Zoom Rooms for Android
- All cloud service provider through Poly Video App Mode
- WARRANTY: 1 year return to factory parts and labor
POLY STUDIO X30 VIDEO BAR CONFERENCE SYSTEM
- Brand : Polycom
- Model No : Poly Studio X30 Conference
- Camera : 5x digital zoom, 120° FOV, UHD 2160p (4K) capture resolution, Automatic people framing, Automatic speaker tracking
- Audio Input : Four MEMS microphones, Microphone pickup range 15 ft, USB Audio
- Audio Output : Single speaker - Power Handling (RMS) 3W, Power Handling (MAX) 5W, Sensitivity 80dB
- Other Interface : 1x USB-A (3.0), 1x USB-C, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
- Audio Standards And Protocols : 22 kHz bandwidth with Polycom Siren 22 technology, 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology, 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C, 7 kHz bandwidth with G.722, G.722.1, 3.4 kHz bandwidth with G.711, G.728, G.729A
- Video Input : 1x HDMI
- Video Out : 2x HDMI, Touch display compatible
- Video Resolution : 4K, 30 fps (TX and RX) from 2048 Kbps, 1080p, 60 fps from 1740 Kbps, 1080p, 30 fps from 1024 Kbps, 720p, 60 fps from 832 Kbps, 720p, 30 fps from 512 Kbps
- Input : UHD (3840 x 2160), HD (1920 x 1080p), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 768), HD (1280 x 720p), XGA (1024 x 768), SVGA (800 x 600)
- Output : UHD (3840 x 2160), WUXGA (1920 x 1200), HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA+ (1400 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768)
- Content frame rate : 5–60 fps (up to 4K resolution at 15 fps in call)
- Power Supply : Auto sensing power supply, Typical operating voltage/power- 37 VA @ 120 V @ 60 Hz and 37 VA @ 230 V @ 50/60 Hz, Typical BTU/h: 65
- Include Box : Poly Studio X30, Cable bundle, Monitor clamp, Privacy cover
- Accessories : VESA mount kit, Stand, Poly TC8, Poly Bluetooth remote control, Poly Trio, Studio Extension Microphone, Inverted mount kit
- Dimensions (W x D x H) : 762 mm x 102 mm x 102 mm
- Weight : 2.54 kg
- Warranty : 2-Year Limited Hardware Warranty

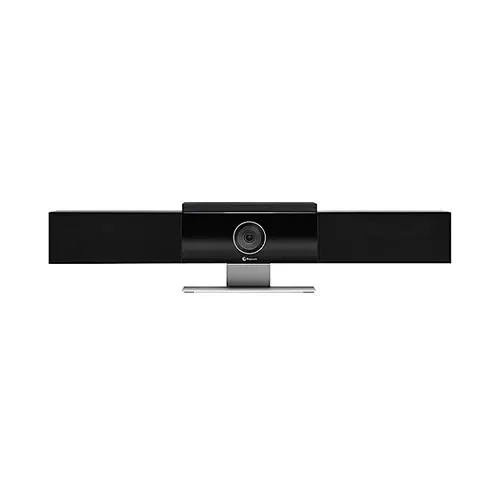

POLY STUDIO HUDDLE ROOM USB VIDEO BAR SYSTEM
- DIMENSIONS
- Unit dimensions: 105 mm x 700 mm x 70 mm = 4.2 x 27.3 x 2.8 (HxWxD) without stand
- 156 mm x 700 mm x 70 mm = 6.2 x 27.3 x 2.8 (HxWxD) with stand
- Weight: 5 lbs 2.6 oz (2342 g) without stand
- 6 lbs 4.7 oz (2856 g) with stand
- Remote control dimensions: 183 mm x 40 mm x 19 mm = 7.2 x 1.6 x .75 (HxWxD)
- APPLICATION REQUIREMENTS: Supported operating systems
- Windows 7 81 10
- MacOS 10.12 10.13 10.14
- Support for standard audio and video device drivers
- UAC 1.0 Audio
- UVC 1.1/1.5 Video
- HID 1.11
- POWER REQUIREMENTS: 12VDC/5A 100~240VAC 50/60 Hz
- PACKAGE INCLUDES: Poly Studio
- Remote control with 2 AAA batteries
- Power adapter
- 5 m USB 2.0 cable (Type-C to Type-A)
- Wall mount kit
- Setup sheet
- OPTIONAL ACCESSORIES: Expansion microphone Display mount
- CAMERA: 120 degree FOV
- UHD 2160p (4K) capture resolution
- Automatic people framing & speaker tracking
- 5x zoom / EPTZ
- 2 camera presets
- AUDIO: Poly Acoustic Clarity technology
- provides full duplex conversations
- acoustic echo cancellation and
- background noise suppression
- Poly NoiseBlock technology
- Poly Acoustic Fence technology
- Mute/unmute controls
- Stereo microphones: 6 element beamforming
- microphone array
- 12 ft pickup range
- 120 Hz–16 kHz frequency response
- Stereo speakers: 100 Hz–20 KHz frequency response
- Output: 90 dB 0.5m
- INTERFACES: 1x USB 3.0 Type C port (with 2.0 compatibility)
- Power connector
- Optional external microphone
- 3.5 mm stereo Audio In
- Kensington security lock
- 802.11ac WiFi wireless networking for manageability; IEEE 802.11a/b/g/n
- compatible
- Bluetooth 4.2
- APPLICATION COMPATIBILITY
- Compatible with any application that supports standard USB audio and video drivers including but not limited to Certified for Microsoft Teams and Skype for Business
- Zoom Certified
- LogMeIn GoToMeeting
- BlueJeans Network
- Google Hangouts communication
- platform
- Amazon Chime
- Cisco Webex
- VidyoDesktop
- Polycom RealPresence Desktop
- SECURITY: 802.1x support Certification management
- MANAGEABILITY (VIA WIFI): Polycom Companion App (running on Win/Mac PC connected to device)
- Polycom RealPresence Resource Manager
- Polycom Device Management Service
- WARRANTY: 1 year limited hardware warranty
- COUNTRY OF ORIGIN: Laos
- ENVIRONMENTAL
- Operating temperature: 32–104°F (0–40°C)
- Relative humidity: 5–95% noncondensing
- Storage temperature: -13–160°F (-25°–70°C)
POLY G7500 ULTRA HD 4K VIDEO CONFERENCING SYSTEM
- Brand : Polycom
- Model No : Poly Studio G7500 Conference
- Number Of Display Supported : Two display support
- Video Camera Input : 1x HDCI, 1x HDMI, 3x USB, Camera switching via touch interface
- Output : 2x HDMI, Touch display compatible
- Video Resolution : 4K, 30 fps (TX and RX) from 2048 Kbps, 1080p, 60 fps from 1740 Kbps, 1080p, 30 fps from 1024 Kbps, 720p, 60 fps from 832 Kbps, 720p, 30 fps from 512 Kbps, 4SIF/4CIF, 60 fps from 512 Kbps, 4SIF/4CIF, 30 fps from 128 Kbps, SIF (352 x 240), CIF (352 x 288) from 64 kbps, QCIF (176 x 144) from 64 kbps, w288p from 128 Kbps, w448 from 384 Kbps, w576p from 512 Kbps
- Content Video Resolution : Input: UHD (3840 x 2160), HD (1920 x 1080p), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 768), HD (1280 x 720p), XGA (1024 x 768), SVGA (800 x 600)
- Output : UHD (3840 x 2160), WUXGA (1920 x 1200), HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA+ (1400 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768)
- Content frame rate : 5–60 fps (up to 4K resolution at 15 fps in call)
- Content Sharings : Poly Content App support, Apple AirPlay, Miracast, 1x HDMI input
- Audio Input : Up to three 1x IP microphone arrays (20 ft pickup range each), Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter), 1x HDMI, 1x 3.5 mm stereo line-in, USB support for SHURE microphones
- Output : 1x HDMI, 1x 3.5 mm stereo line-out
- Interfaces : 3x USB 3.0, 1x USB-C1, 1x RS-232, 8-pin mini-DIN, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency
- Include Box : G7500 codec, EagleEye IV camera or EagleEye Cube USB, Poly IP Microphone, Bluetooth remote control, Cable bundle
- Accessories : Poly TC8, Poly IP Table Microphone, Poly Microphone IP Adapter, EagleEye Cube USB, EagleEye Director II, EagleEye Producer
- Dimensions (W x D x H) : 34.92 cm x 3.81 cm x 13.97 cm
- Weight : 2.1 lbs
- Warranty : 2-Year Limited Hardware Warranty
POLY STUDIO R30 VIDEO CONFERENCE
- Brand : Polycom
- Model No : Poly Studio R30 Conference
- Camera : Ultra HD (4K 16:9, 2160p), Full HD (1080p), HD (720p), 120° DFOV, 110° HFOV, True color and low light compensation, Automatic meeting experience powered by Poly DirectorAI including speaker framing, presenter tracking, and conversation mode, Electronic zoom up to 5x, Manual pan, tilt and zoom control through Poly Lens Desktop App
- Audio : Poly Acoustic Clarity technology with advanced acoustic echo cancellation and background noise suppression, Poly NoiseBlockAI technology, Poly Acoustic Fence technology, Microphones: 3-element beamforming microphone array, 50 Hz to 14 kHz frequency response
- Speaker : 100 Hz to 20 kHz frequency response, Output: 84 dBSPL at 1000 Hz at 1 meter at maximum volume
- Interfaces : 1x USB 3.0 Type-C port (with USB 2.0 compatibility), 2x USB 2.0 Type-A ports, Power connector, Kensington security lock, 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible, Bluetooth 4.2
- Power : External DC power supply: 12V/3A
- System : Windows 8.1, 10, 11, Mac OS 10.10 or higher, USB 3.0 required for 4K video
- Other Features : Adjustable monitor clamp, Standard Tripod thread, Inverted mounting option, USB-A ports built-in for wireless headset adapter or other peripherals as USB hub, Status LED indicates calling and mute state
- Accessories : Bluetooth remote control, Wall mount
- Dimensions (W x D x H) : 445 mm x 86 mm x 81 mm
- Weight : 1.29 kg
- Warranty : 1-Year Limited Hardware Warranty
POLY MEDIALIGN VIDEO CONFERENCING SYSTEM
- Power supply: 110 V–240 V AC, 6 A max
- Operating temperature: 0–40 °C
- Operating humidity: 15%–80%
- non condensing
- Enclosure: Steel frame with steel and
- MDF covers
- DIMENSIONS:
- Medialign 65: (H) 1952 x (W) 1459 x (D) 161
- Medialign 65D: (H) 1952 x (W) 2928 x (D) 161
- Medialign 75: (H) 2222 x (W) 1735 x (D) 195
- Medialign 75D: (H) 2222 x (W) 3470 x (D) 195
- Medialign 86: (H) 2300 x (W) 1896 x (D) 215
- Medialign 86D: (H) 2300 x (W) 3863 x (D) 215
- PRODUCT WEIGHT:
- Medialign 65: 124.9 kg (275.4 lbs)
- Medialign 65D: 223.8 kg (493.4 lbs)
- Medialign 75: 158.7 kg (349.9 lbs)
- Medialign 75D: 294.9 kg (650.2 lbs)
- Medialign 86: 154.7 kg (341.0 lbs)
- Medialign 86D: 289.7 kg (638.7 lbs)
- POLY G7500 CODEC: Video standards and protocols
- H.264 AVC H.264 High Profile H.264
- SVC H.265 RTV H.239
- H.264 video error concealment
- VIDEO INPUT: 1x HDCI 1x HDMI 1x USB1
- VIDEO OUT: 2x HDMI Touch Display Compatible
- PEOPLE VIDEO RESOLUTION: 4K 30 fps (TX and RX) from 2048 Kbps
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240) CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- CONTENT VIDEO RESOLUTION:
- Input: UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
- Output: UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
- CONTENT SHARING: Polycom Content App support
- Apple AirPlay Miracast
- 1x HDMI input
- AUDIO INPUT: Up to three IP Microphone Arrays
- Up to four Clink2 Microphones (using Poly
- Microphone IP Adapter)
- 1x HDMI
- 1x 3.5 mm stereo line in
- Active Directory external authentication
- Electrical
- Auto sensing power supply
- Typical operating voltage/power:
- 60 VA 120 V 50 Hz .49 PF
- 60 VA 120 V 60 Hz .49 PF
- 74 VA 200 V 50 Hz .40 PF
- 73 VA 200 V 60 Hz .40 PF
- 87 VA 260 V 50 Hz .34 PF
- 86 VA 260 V 60 Hz .36 PF
- AUDIO OUTPUT: 1x HDMI 1x 3.5 mm stereo line out
- OTHER INTERFACES: 3x USB 3.0 1x USB-C1
- 1x RS-232 8-pin mini-DIN
- Bluetooth 5.0
- WiFi 802.11 a/b/g/n/ac (MIMO)
- Multichannel Concurrency
- AUDIO STANDARDS AND PROTOCOLS
- 22 kHz bandwidth with Polycom Siren 22
- technology G.719 (M- Mode)
- 14 kHz bandwidth with Polycom Siren 14
- technology G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- NETWORK: IPv4 support
- 1x 10/100/1G Ethernet
- Auto-MDIX
- 3x 10/100/1G LLN supporting POE+/PSE
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic Bandwidth Allocation
- Reconfigurable MTU size
- RS232 with REST and CLI API support
- Web Proxy support: Basic, Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- Instant adaptation echo cancellation
- Audio error concealment: Poly Siren Lost
- Packet Recovery (LPR) technology
- Poly StereoSurround technology
- SECURITY: Media Encryption (H.323 SIP): AES-128 AES-256
- H.235.6 support
- Authenticated access to admin menus, web interface and APIs
- PKI/Certificate Management:
- TLS 1.2 1.1 1.0
- Self-signed and CA-signed certificate support
- CRL and OCSP-based certificate
- revocation checking
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- POLY CONSTANT CLARITY TECHNOLOGY
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Poly NoiseBlock technology
- Poly Acoustic Fence
- Live music mode
- OTHER SUPPORTED STANDARDS
- H224/H.281 H.323 Annex Q H.225 H.245
- H.241 H.239 H.243 H.460
- BFCP (RFC 4582)
- TIP
- Network: IPv4 and IPv6 support
- 1x 10/100/1G Ethernet
- Auto-MDIX
- H.323 and/or SIP up to 6 Mbps
- Poly Siren Lost Packet Recovery (LPR) technology
POLYCOM REALPRESENCE UTILITY CART 500 VIDEO CONFERENCING KIT
- Collaboration can take place anywhere with this flexible mobile solution
- Video display choices
- 22 dual displays
- No monitors
- Video standards and protocols
- H.261 H.263 H.264 AVC H.264 High
- Profile H.264 SVC RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- People video resolution
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240) CIF (352 x 288) from 64 kbps
- QSIF (176 x 120) QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Video Input: 1 x Polycom EagleEye HD
- Camera (HDCI): 1 x HDMI 1.3 1 x VGA
- Video out: 2 x HDMI 1.3
- Content video resolution
- Input: WUXGA (1920 x 1200)
- HD (1920 x 1080i) HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p) XGA (1024 x 768)
- SVGA (800 x 600)
- Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content sharing: People+Content and Pano App
- Audio standards & protocols
- Polycom StereoSurround technology
- 22 kHz bandwidth with Polycom
- Siren 22 technology
- 14 kHz bandwidth with Polycom
- Siren 14 technology G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- Automatic gain control
- Automatic noise suppression
- Instant adaptation echo cancellation
- Audio error concealment
- Keyboard noise reduction
- M Mode for music and
- medical applications
- Other ITU-supported standards
- H.224/H.281 far-end camera control
- H.323 Annex Q far-end camera control
- H.225 H.245 H.241
- H.239 dual stream
- H.460 NAT/firewall traversal
- Cart: Structural support for two (2) 22 displays
- Tray that can be mounted on either side of the cart and can support a laptop or other device
- Ability to mount a wireless bridge on the back
- AC powered only unless the battery pack and power supply are purchased
- Ability to add a lock to the drawer (user supplied)
- 2 locking casters
- Basket on back for additional storage
- Hooks on the top/side of the cart for peripheral cable management
- I/O panel on the cart with access to the (2) USB ports on the codec VGA HDMI and audio
- Options: Powered Speakers (enhanced audio) and housing
- Power supply battery and enclosure for easy field installation on the base of the cart
- 1080p license providing up to 1080p60 for people and content
- Multipoint license for up to 6 sites (SDCP) or 4 sites (HDCP)
POLYCOM REALPRESENCE EDUCART 500 VIDEO CONFERENCING KIT
- Easily expand the visual learning experience across multiple classrooms without expanding your budget
- Video Display: 55 LED flat panel
- Video standards and protocols
- H.261 H.263 H.264 AVC H.264 High
- Profile H.264 SVC RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- People video resolution
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240) CIF (352 x 288) from 64 kbps
- QSIF (176 x 120) QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Video Input: 1 x EagleEye HD camera (HDCI)
- 1 x HDMI 1.3, 1 x VGA
- Video Output: 2 x HDMI 1.3
- Content video resolution
- Input: WUXGA (1920 x 1200)
- HD (1920 x 1080i) HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p) XGA (1024 x 768)
- SVGA (800 x 600)
- Audio standards & protocols
- Polycom StereoSurround technology
- 22 kHz bandwidth with Polycom
- Siren 22 technology
- 14 kHz bandwidth with Polycom
- Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- Automatic gain control
- Automatic noise suppression
- Instant adaptation echo cancellation
- Audio error concealment
- Keyboard noise reduction
- Live Polycom MusicMode technology
- Other ITU-supported standards
- H.224/H.281 far end camera control
- H.323 Annex Q far end camera control
- H.225 H.245 H.241
- H.239 dual stream
- H.460 NAT/firewall traversal
- Cart: Structural support for the included 55 display
- Adjustable height to accommodate user need center of display height: 46 50 or 54
- 2 x powered speakers (25W LF & 16W HF per speaker) with integrated high efficiency digital amplifier
- Sturdy side handles allow cart to be safely and easily moved and maneuvered
- 4 locking heavy duty swivel casters
- Integral cable runs from display top to base for hiding unsightly cables
- Integrated basket with cover to hold microphone/cable IR remote
- Rear cover to neatly hide codec power supply and power bar behind display
- Options: 1080p license, providing up to 1080p60 for people and content
- Multipoint license for up to 6 sites (SDCP) or 4 sites (HDCP)
- Physical size: 49 W x 74 H x 33.25 D (with display and camera)
- Weight: 144 lbs
POLYCOM REALPRESENCE VIDEO PROTECT 500 VIDEO CONFERENCING KIT
- Video Display: 24 LCD, EagleEye Acoustic with built in speakers
- Video standards and protocols
- H.261 H.263 H.264 AVC H.264 High
- Profile H.264 SVC RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- People video resolution
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240) CIF (352 x 288) from 64 kbps
- QSIF (176 x 120) QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps w448 from 384 Kbps and w576p from 512 Kbps
- Exterior Housing: 14 gauge steel
- High impact ¼ PETG Polycarbonate front panel for display and camera
- Exterior grade powder coat paint
- Sloping top, louvers and channels to prevent fluids from entering housing
- Pin-Torx security screws to access interior with hinged front panel for easy service
- High impact handset with 36 armoured cable (left or right side mounting or none)
- Vandal resistant volume up/down buttons mounted to handset plate
- Separate wall mounting bracket to facilitate installation
- Choice of camera front panel with or without holes for hands free operation if desired
- Intelligent activation module
- Additional external control features
- available for system integrators:
- Master call hang up
- Mute microphone
- Call directory preset (up to 4)
- System in call indicator
- Switch to PC input
- Modes of operation
- Handset only mode (Audio through handset only with volume control)
- Auto answer mode: call comes in video is auto answered audio is muted until handset picked up
- Standard answer mode: call is only answered when handset is picked up
- Auto dial mode: system auto dials a preset when the handset is lifted
- Preset is labeled auto dial
- Hang up call: system hangs up call
- when handset is placed on hook with an built-in 3 second delay in case of accidental user error
- Hands free mode (No handset therefore no volume control)
- System auto answers only
- No other features
- Call is disconnected by far end hanging up call
- Audio through speakers only
- When using hands free mode in larger and/ or noisy areas the use of external speakers may be necessary
- Both handset and hands free mode (Includes volume control and auto dial features)
- System auto answers with audio through speakers
- Pick up handset and audio goes to handset only (privacy)
- Hang up handset and audio returns to speakers
- Feature needs pre-defining upon installation
- Options: 1080p license providing up to 1080p60 for people and content RTV
- Environmental specifications
- Operating temperature: 0–40°C
- Operating humidity: 15–80%
- Non operating temperature: -20–60°C
- Non operating humidity (non-condensing): 5–95%
- Maximum altitude: 10000 ft
- Power rating
- Electrical: Auto sensing power supply
- Typical operating voltage/power:
- 36W or 72VA typical 120V 60Hz
- 18W or 72VA 230V 50/60Hz
- Physical size and weight
- 23 ½ W x 19 H x 6 5/8 D without handset
- 27 W x 19 H x 6 5/8 D with handset
- 55 lbs fully assembled (including codec camera and IR remote inside housing)
POLYCOM CX5100 UNIFIED CONFERENCE STATION
- Dimensions: Table Console
- Footprint (W x D): 369 x 325 mm
- Height: 348 mm (privacy cap closed)
- 401 mm (privacy cap extended)
- Weight: 2.3 kg (exclusive of cables)
- Power Data Box: Size (W x H x D): 209.5 x 300 x 56 mm (excluding stand)
- Weight: 2.9 kg
- Shipping: Size (W x H x D): 520 x 430 x 430 mm
- Weight: 9.07 kg
- Power
- Power consumption: 110 watts typical
- Universal power supply 100–240 V AC,50–60 Hz
- Video performance:
- Panoramic video resolutions supported: 1920 x 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1280 x 192 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1056 x 144 pixels
- Active speaker video resolutions supported
- HD 1080: 1920 x 1080 pixels (requires USB 3.0 & Lync 2013 or Skype for Business)
- HD 720: 1280 x 720 pixels
- VGA: 640 x 480 pixels
- CIF: 352 x 288 pixels
- Frame rate for panoramic and active speaker video maximum
- 30 frames per second with 60 Hz AC power
- 25 frames per second with 50 Hz AC power
- Maximum frame rates with systems
- prior to Lync 2013 will be limited to 15 fps (12.5 50 Hz)
- Audio performance: Console Loudspeaker
- Frequency response: 160 Hz–22 kHz
- Volume: adjustable to 88 dBA SPL
- (peak) volume at 0.5 meters
- Console microphones: 3 microphones for omnidirectional coverage
- Frequency response: 160 Hz–22 kHz
- Full Duplex (Class 1) with noise suppression
- User interface: 3 mute buttons with mute/in call indication lamps
- Camera on/off indication lamp
- Captive privacy cap with integrated
- on/off switch for client synch
- Console connectivity
- Proprietary system port for connection to Power Data Box
- USB 3.0 Type A port for proprietary
- connection to Power Data Box
- USB 3.0 Type B port for connection to PC
- USB 2.0 Type A port for diagnostics/ software update
- 2 extension microphone ports
- Power data box connectivity
- Proprietary system port for connection to console
- USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
- USB 2.0 Type A for diagnostics/software update
- Ethernet: RJ-45 10/100/1000 Mbit
- Audio RCA jacks (reserved for future use)
- AC power input
- Physical security: Kensington-style lock slot on Console and Power Data Box
- Extension microphones (optional accessory)
- Frequency response: 160 Hz–22 kHz
- Mute button and indicator lamp
- Regulatory compliance
- Safety
- UL 60950 1
- EN 60950 1
- CSA C22.2 60950 1
- IEC 60950 1
- AS/NZS 60950 1
- GB4943-2011 (China)
- KCC approval (Korea)
- EMC
- CISPR 22 Class B (FCC ICES AS/NZS)
- VCCI Class B
- EN 55022 Class B
- EN 55024
- GB9254:2008 YD/T993-1998 (China)
- KCC approval (Korea)
- ANATEL (Brazil)
- Environmental requirements
- Operating temperature: 0–40ºC
- Relative humidity: 15–85% (non-condensing)
- Storage temperature: -40–60ºC
- Recommended room conditions
- Room reverberation time: RT60 <0.600 seconds
- Ambient noise level: <50 dBA SPL
- Optimal lighting conditions: 300 lux with a single lighting temperature (no mixed lighting)
- Polycom CX5100 ships with Tabletop console with integrated 360º camera
- Power data box with stand
- Quick setup card
- Cables
- Proprietary system cable
- USB 3.0 Type A Type A cable
- USB 3.0 Type A Type B cable
- Ethernet cable
- AC power cord with local plug
- Optional accessories: Extension microphone kit with pair of microphones and cables
- Cable length is 25 ft (7.6 meters)
- Warranty: 1 Year Warranty

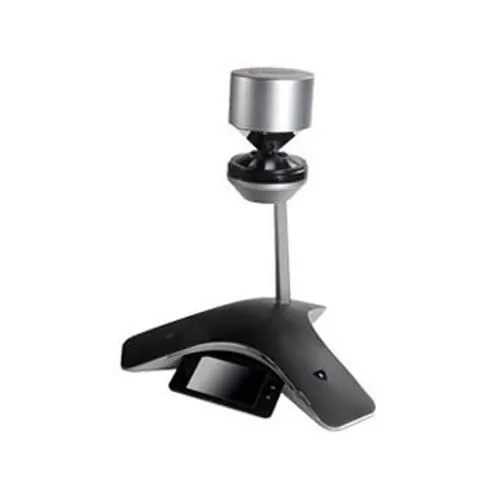

POLYCOM CX5500 UNIFIED CONFERENCE STATION
- Dimensions: Table Console
- Footprint (W x D): 369 x 325 mm
- Height: 348 mm (privacy cap closed)
- 401 mm (privacy cap extended)
- Weight: 2.44 kg (exclusive of cables)
- Power Data Box
- Size (W x H x D): 209.5 x 300 x 56 mm (excluding stand)
- Weight: 2.9 kg
- Shipping
- Size (W x H x D): 520 x 430 x 430 mm
- Weight: 9.29 kg
- Power
- Power consumption: 110 watts typical
- Universal power supply 100–240 V AC 50–60 Hz
- Video performance
- Panoramic video resolutions supported:
- 1920 x 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1280 x 192 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1056 x 144 pixels
- Active speaker video
- resolutions supported
- HD 1080: 1920 x 1080 pixels (requires USB 3.0 & Lync 2013 or Skype for Business)
- HD 720: 1280 x 720 pixels
- VGA: 640 x 480 pixels
- CIF: 352 x 288 pixels
- Frame rate for panoramic and active speaker video maximum
- 30 frames per second with 60 Hz AC power
- 25 frames per second with 50 Hz AC power
- Maximum frame rates with systems
- prior to Lync 2013 will be limited to 15 fps (12.5 50 Hz)
- Audio performance: Console Loudspeaker
- Frequency response: 160 Hz–22 kHz
- Volume: adjustable to 88 dBA SPL (peak) volume at 0.5 meters
- Console microphones
- 3 microphones for omnidirectional coverage
- Frequency response: 160 Hz–22 kHz
- EMC: CISPR 22 Class B (FCC ICES AS/NZS)
- VCCI Class B
- EN 55022 Class B
- EN 55024
- GB9254:2008 YD/T993-1998 (China)
- KCC approval (Korea)
- ANATEL (Brazil)
- Environmental requirements: Operating temperature: 0–40ºC
- Relative humidity: 15–85% (non-condensing)
- Storage temperature: -40–60ºC
- Recommended room conditions
- Telephony Performance
- Full Duplex (Class 1) with noise suppression
- Comfort noise fill
- DTMF tone generation/DTMF
- event RTP payload
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- Acoustic echo cancellation
- Background noise suppression
- Supported codecs are G.711 (A-law and µ-law) G.729AB G.722 G.722.1 G.722.1C G.719
- Call handling features: Call timer
- Call transfer hold divert (forward) pickup
- Called calling connected party information
- Local three way conferencing
- One-touch speed dial redial
- Call waiting
- Remote missed call notification
- Automatic off-hook call placement
- Do not disturb function
- Lync client device synchronization
- Lync USB call control for Answer Reject
- End Call Hold Resume and Swap
- Protocol supportNetwork and provisioning
- IP Address Configuration: DHCP and Static IP
- Time synchronization with SNTP server
- FTP/TFTP/HTTP/HTTPS serverbased
- central provisioning for mass deployments
- Provisioning server redundancy supported
- Web portal for individual unit configuration
- QoS Support IEEE 802.1p/Q tagging (VLAN) Layer 3 TOS and DSCP
- Network Address Translation (NAT)
- support static
- RTCP support (RFC 1889)
- Event logging
- Local digit map
- Hardware diagnostics
- Status and statistics
- User selectable ringer tones
- Convenient volume adjustment keys
- Field upgradeable
- Security: Transport Layer Security (TLS)
- Encrypted configuration files
- Digest authentication
- Room reverberation time: RT60 <0.600 seconds
- Ambient noise level: <50 dBA SPL
- Optimal lighting conditions: 300 lux with a single lighting temperature (no mixed lighting)
- Warranty: 1 Year Warranty
- Polycom CX5500 ships with Tabletop console with integrated 360º camera
- Power data box with stand
- Quick setup card
- Cables
- Password login
- Support for URL syntax with password for boot server
- HTTPS secure provisioning Support for signed software executables
- User interface
- 3 mute buttons with mute/in call
- indication lamps
- Camera on/off indication lamp
- Captive privacy cap with integrated on/ off switch for client synch
- Gesture based multi touch capable
- capacitive touchscreen for voice calls
- 4.3in LCD (480 x 272 pixels) resolution
- User configurable contact directory and call history (missed placed and received)
- Customizable call progress tones
- Wave file support for call progress tones
- Console connectivity: Proprietary system port for connection to Power Data Box
- USB 3.0 Type A port for proprietary
- connection to Power Data Box
- USB 3.0 Type B port for connection to PC
- USB 2.0 Type A port for diagnostics/ software update
- 2 extension microphone ports
- Power data box connectivity
- Proprietary system port for connection to console
- USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
- USB 2.0 Type A for diagnostics/software update
- Ethernet: RJ-45 10/100/1000 Mbit
- Audio RCA jacks (reserved for future use)
- AC power input
- Physical security: Kensington-style lock slot on Console and Power Data Box
- Extension microphones (optional accessory)
- Frequency response: 160 Hz–22 kHz
- Mute button and indicator lamp
- Regulatory compliance
- Safety
- UL 60950 1
- EN 60950 1
- CSA C22.2 60950 1
- IEC 60950 1
- AS/NZS 60950 1
- GB4943-2011 (China)
- KCC approval (Korea)
- Proprietary system cable
- USB 3.0 Type A Type A cable
- USB 3.0 Type A Type B cable
- Ethernet cable
- AC power cord with local plug
- Optional accessories: Extension microphone kit with pair of microphones and cables
- Cable length is 25 ft (7.6 meters)
POLYCOM REALPRESENCE GROUP 700 VIDEO CONFERENCE SYSTEM
- Package includes: RealPresence Group 700 codec
- RealPresence Group Microphone Array
- Polycom EagleEye IV camera
- Cable bundle
- Remote control
- Rack (19) mounting ears
- Video standards and protocols
- H.261 H.263 H.264 AVC H.264 High
- Profile H.264 SVC RTV
- H.239/Polycom People+Content
- H.263 & H.264 Video error concealment
- Video Input: 2 x HDCI
- 3 x HDMI 1.4
- 1 x YPbPr component
- 1 x dual RCA composite
- 1 x VGA
- Video Output: 3 x HDMI 1.3, 3 x VGA
- People video resolution
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448p from 384 Kbps
- w576p from 512 Kbps
- Network: IPv4 and IPv6 support
- 2 x 10/100/1G Ethernet Switch
- Auto MDIX
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Reconfigurable MTU size
- RS232 with API support
- Web Proxy support Basic Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- Interoperability
- Microsoft Lync and Skype for Business
- certification, including Skype for Business Online
- IBM Sametime support
- Zoom Meetings interoperability
- BlueJeans Cloud Services Interoperability
- Microsoft Office Communications
- Server integration
- Microsoft ICE support
- Security: US DoD UC APL Certified (see the Polycom US Federal Government Accreditation site for details)
- Media Encryption (H.323 SIP): AES-128 AES-256
- Content video resolution
- Input: HD (1920 x 1080i)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- (1024 x 768)
- SVGA (800 x 600)
- Output: WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- VGA (640 x 480)
- Content Frame Rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content Sharing: Polycom People+Content IP and Polycom Pano app support
- VbSS content in Microsoft environments
- Audio input: 2 x RealPresence Group microphone
- array input ports (supporting a total of 4 microphone arrays)
- USB headset support
- 2 x HDCI (camera)
- 3 x HDMI
- 2 x RCA line in
- H.235.6 support
- Authenticated access to admin menus, web
- interface, and telnet API
- FIPS 140-2 Validated Cryptography (Validation Certificate 1747)
- PKI/Certificate Management:
- SSL 3.0, TLS 1.0 1.1 1.2
- Self-signed and CA signed
- certificate support
- CRL and OCSP-based certificate
- revocation checking
- Network intrusion detection system
- Local account password policy
- configuration
- Security profiles
- Web UI/SNMP Whitelists
- Local account and login port lockout
- Options: Polycom Pano
- Polycom RealPresence Touch
- Polycom EagleEye Producer
- Polycom EagleEye Director II
- Polycom SoundStation IP 7000 conference
- phone integration
- Polycom SoundStructure integration
- Software options: Skype for Business and Lync Integration
- (including Skype for Business Online
- TIP interoperability
- Audio output: 1 x HDMI (to in room audio system)
- 1 x HDMI (to conference recording device)
- USB headset support
- 1 x RCA pair stereo line out
- Other interfaces: 2 x USB 3.0 (back)
- 1 x USB 2.0 (front)
- 1 x RS-232 DB9
- Audio standards and protocols
- 22 kHz bandwidth with Polycom
- Siren 22 technology AAC-LD (TIP calls) G.719 (Live Music Mode)
- 14 kHz bandwidth with Polycom
- Siren 14 technology G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- Polycom Constant Clarity technology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Polycom NoiseBlock technology
- Polycom Acoustic Fence technology
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment
- Polycom Siren Lost Packet Recovery
- technology
- Polycom StereoSurround technology
- Active Lip Synchronization
- Other supported standards
- H224/H.281 H.323 Annex Q H.225
- H.245 H.241 H.239 H.243 H.460
- BFCP (RFC 4582)
- TIP
- 1080p license providing up to 1080p60 for people and content
- Multipoint license for up to 8 sites at 720p30 or 4 sites at 1080p30
- Electrical: Auto sensing power supply
- Typical operating voltage/power
- 85VA 120V 60 Hz
- 85VA 230V 50/60 Hz
- Typical BTU/h: 280
- Environmental specification
- Operating temperature: 0 to 40 °C
- Operating humidity: 15 to 80%
- Non operating temperature: -40 to 70 °C
- Non operating humidity (non condensing): 5 to 95%
- Maximum altitude: 10,000 ft
- Physical characteristics
- RealPresence Group 700 base box
- 17.2 H x 2.6 W x 12.8 D
- 11.45 lbs
- Warranty: 1 year return to factory parts and labor
POLYCOM REALPRESENCE GROUP 500 VIDEO CONFERENCE SYSTEM
- Package includes: RealPresence Group 500 codec
- Cable bundle
- Remote control
- EagleEye IV camera and RealPresence
- Group Microphone Array or EagleEye
- Acoustic camera
- Video standards and protocols: H.261 H.263 H.264 AVC H.264 High
- Profile H.264 SVC RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- Video Input: 1 x HDCI 1 x HDMI 1.3 1 x VGA
- Video Output: 2 x HDMI 1.3
- People video resolution
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240) CIF (352 x 288) from 64 kbps
- QSIF (176 x 120) QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Reconfigurable MTU size
- RS232 with API support
- Microsoft Office Communications
- Server integration
- Microsoft ICE support
- Microsoft Lync and Skype for Business support
- IBM Sametime support
- Content video resolution
- Input: HD (1920 x 1080i) HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p) XGA (1024 x 768)
- SVGA (800 x 600)
- Output: WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- VGA (640 x 480)
- Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content Sharing: People+Content and People+Content IP
- Audio input: 1 x RealPresence Group microphone
- array input port (supporting a total of 4 microphone arrays)
- USB headset support
- 1 x HDCI (camera)
- 1 x HDMI
- 1 x 3.5 mm stereo line in
- Audio output: 1 x HDMI
- USB headset support
- 1 x 3.5 mm stereo line-out
- Network intrusion detection system
- Local account password
- policy configuration
- Security profiles
- Web UI / SNMP Whitelists
- Local account and login port lockout
- Options: Polycom RealPresence Touch
- Polycom EagleEye Producer
- Polycom EagleEye Director II
- Polycom SoundStation IP 7000
- conference phone integration
- Polycom SoundStructure integration through a digital interface
- Other interfaces: 2 x USB 2.0 1 x RS-232 8 pin mini DIN
- Audio standards and protocols
- 22 kHz bandwidth with Polycom
- Siren 22 technology AAC-LD (TIP calls) G.719 (Live Music Mode)
- 14 kHz bandwidth with Polycom
- Siren 14 technology G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- Polycom Constant Clarity technology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Polycom NoiseBlock technology
- Polycom Acoustic Fence
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment
- Polycom Siren Lost Packet Recovery (LPR) technology
- Polycom StereoSurround technology
- Other supported standards: H224/H.281 H.323 Annex Q H.225 H.245 H.241 H.239 H.243 H.460
- BFCP (RFC 4582) TIP
- Network: IPv4 and IPv6 support
- 1 x 10/100/1G Ethernet
- Auto MDIX
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Electrical: Auto sensing power supply
- Typical operating voltage/power
- 37VA 120V 60 Hz
- 37VA 230V 50/6 0Hz
- Typical BTU/h: 65
- Environmental specification
- Operating temperature: 0 to 40 °C
- Operating humidity: 15 to 80%
- Non operating temperature: -40 to 70 °C
- Non operating humidity (non-condensing): 5 to 95%
- Maximum altitude: 10000 ft
- Physical characteristics: RealPresence Group 500 base box
- 11.3 H x 1.2 W x 4.8 D
- 2.45 lbs
- Warranty: 1 year return to factory parts and labor
POLYCOM REALPRESENCE GROUP 310 VIDEO CONFERENCE SYSTEM
- Packages include: RealPresence Group 310 codec
- Cable bundle
- Remote control
- EagleEye IV 4x camera and RealPresence
- Group Microphone Array or EagleEye
- Acoustic camera
- Video standards and protocols
- H.261 H.263 H.264 AVC H.264 High
- Profile H.264 SVC RTV
- H.239/BFCP for content sharing
- H.263 & H.264 Video error concealment
- Video In 1 x HDCI 1 x HDMI 1.3 1 x VGA
- Video Output: 2 x HDMI 1.3
- One HDMI output enabled standard second output enabled with optional license key
- People video resolution
- 1080p 60 fps from 1740 Kbps
- 1080p 30 fps from 1024 Kbps
- 720p 60 fps from 832 Kbps
- 720p 30 fps from 512 Kbps
- 4SIF/4CIF 60 fps from 512 Kbps
- 4SIF/4CIF 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Content video resolution
- Input: HD (1920 x 1080i) HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p) XGA (1024 x 768)
- SVGA (800 x 600)
- Output: HD (1920 x 1080i)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720p)
- XGA (1024 x 768)
- VGA (640 x 480)
- Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content Sharing: Polycom People+Content IP and
- Polycom Pano app support
- VbSS content in Microsoft environments
- PKI/Certificate Management: SSL 3.0 TLS 1.0 1.1 1.2
- Self-signed and CA-signed
- certificate support
- CRL and OCSP based certificate
- revocation checking
- Network intrusion detection system
- Local account password policy
- configuration
- Security profiles
- Web UI/SNMP Whitelists
- Local account and login port lockout
- API via Telnet and secure SSH interfaces
- Options: Polycom Pano
- Polycom RealPresence Touch
- Polycom EagleEye Cube camera
- Polycom EagleEye Producer
- Polycom EagleEye Director II
- Polycom SoundStation IP 7000
- conference phone integration
- Polycom SoundStructure integration through a digital interface
- Audio Input: 1 x RealPresence Group microphone
- array input port (supporting a total of 2 microphone arrays)
- USB headset support
- 1 x HDCI (camera)
- 1 x HDMI
- 1 x 3.5mm stereo line in
- Audio output: 1 x HDMI
- USB headset support
- 1 x 3.5mm stereo line-out
- Other interfaces: 2 x USB 2.0
- 1 x RS-232 8-pin mini DIN
- Audio standards and protocols
- 22 kHz bandwidth with Polycom
- Siren 22 technology AAC-LD (TIP calls) G.719 (Live Music Mode)
- 14 kHz bandwidth with Polycom
- Siren 14 technology G.722.1 Annex C
- 7 kHz bandwidth with G.722 G.722.1
- 3.4 kHz bandwidth with G.711 G.728 G.729A
- Polycom Constant Clarity technology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Polycom NoiseBlock technology
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment
- Polycom Siren Lost Packet Recovery technology
- Polycom StereoSurround technology
- Active Lip Synchronization
- Other supported standards
- H224/H.281 H.323 Annex Q H.225 H.245 H.241 H.239 H.243 H.460
- BFCP (RFC 4582) TIP
- Network: IPv4 and IPv6 support
- 1 x 10/100/1G Ethernet
- Auto MDIX
- H.323 and/or SIP up to 3 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Reconfigurable MTU size
- RS232 with API support
- Web Proxy support Basic Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- Interoperability
- Microsoft Lync and Skype for Business
- certification including Skype for Business
- Online / Office 365
- IBM Sametime support
- Zoom Meetings interoperability
- BlueJeans Cloud Services Interoperability
- Microsoft Office Communications
- Server integration
- Microsoft ICE support
- Security
- Media Encryption (H.323 SIP): AES-128 AES-256
- Authenticated access to admin menus web interface and telnet API
- H.235.6 support
- FIPS 140 2 Validated Cryptography (Validation Certificate 1747)
- Software options: Skype for Business and Lync Integration (including Skype for Business Online / Office 365)
- TIP interoperability
- Enhanced display license for 2nd monitor and touch monitor support
- 1080p license providing up to 1080p60 for people and content
- Electrical: Auto sensing power supply
- Typical operating voltage/power
- 37VA 120V 60Hz
- 37VA 230V 50/60Hz
- Typical BTU/h: 65
- Environmental specification
- Operating temperature: 0 to 40 °C
- Operating humidity: 15 to 80%
- Non operating temperature: -40 to 70 °C
- Non operating humidity (non condensing): 5 to 95%
- Maximum altitude: 10000 ft
- Physical characteristics: RealPresence Group 310 base box
- 11.3 H x 1.2 W x 4.8 D
- 2.45 lbs
- Warranty: 1 year Warranty
POLYCOM EAGLEEYE VIDEO CONFERENCING
Package Includes
• Polycom EagleEye Producer
• Power supply
• Necessary cables for Polycom EagleEye III, EagleEye IV
camera connection
Compatible IC cameras
• Polycom EagleEye I, II, III
• Polycom EagleEye IV
Compatible endpoints
• Polycom? RealPresence? Group Series 300, 310, 500, 550, 700
Connections
• 1x HDCI (Out to Polycom RealPresence Group Series)
• 1x HDCI to HDCI to EagleEye III or 1 HDCI to Mini-HDCI
(Optional EagleEye IV)
• USB for local upgrades
• Power
Camera characteristics
• Horizontal field of view 80 degrees
• Vertical manual tilt
Recommended room size
• Participants should be within 19.6 ft / 6m of EagleEye Producer
• Performance may vary in different room configurations
Environmental specifications:
• Operating temperature: 0–40?C
• Operating humidity: 15–80%
• Non-operating temperature: -40–70?C
• Non-operating humidity (non-condensing): 5–95%
• Maximum Altitude: 10,000 ft
Power rating
• Electrical: Auto sensing power supply
• Typical operating voltage/power:
• 22VA typical @ 120V @ 60Hz
• 26VA @ 230V @ 50/60Hz
• Typical BTU/h: 106 BTU/h
Physical size and weight
• 11.3" H x 1.2" W x 4.8" D
• 1.93 lbs.
Warranty
• One-year return to factory parts and labor
POLYCOM EAGLEEYE DIRECTOR II VIDEO CONFERENCING
Package includes:
• EagleEye Director II base, power supply and necessary cables
• EagleEye Director II base, power supply, necessary cables and one
EagleEye IV camera
• EagleEye Director II base, power supply, necessary cables and two EagleEye IV cameras
Compatible cameras
• 2x EagleEye? IV 12X camera
Compatible Polycom video systems
• Polycom RealPresence Group 300, 310, 500, 550 and 700**
• Poly G7500
Compatible Skype for Business
video systems
• Certified for Skype for Business
• Microsoft Surface Hub (55” and 84”)
• Skype for Business 2015 and Lync 2013
client running on Microsoft Windows 7, 8, 8.1 or 10
Recommended room size
• Participants should be within 33 feet (10m) of each EagleEye Director II
• Performance may vary in different room configurations
Modes
• Frame speaker
• Frame group
Connections
• 1 x mini-HDCI out to video system
• 2 x USB 2.0
• 1 x 3.5 mm stereo line-in
• 1 x HDMI in
• 1 x HDMI out
Environmental Specifications
• Operating temperature:
0? — 40? C ambient
• Operating humidity: 10—90%
• Storage temperature: -40? — 70? C
• Non-operating humidity : 5% — 95%, non-condensing
• Altitude: 5,000 meters operational, 10,668 meters non-operational (transportable)
• Will operate in florescent lighting environments worldwide
Physical characteristics
• Base box with vertical array 11.14” x 21.57” x 5.5” (H x W x D)
• 283 mm x 548 mm x 140.5 mm (H x W x D)
• Weight: 4.7kg with two EagleEye IV cameras
Electrical
• Auto sensing power supply
• Typical operating voltage/power
- 100 — 240VAC, 50/60Hz Output 12V@5A
POLYCOM EAGLEEYE CUBE VIDEO CONFERENCING
EagleEye Cube Features
• Integrated privacy shutter
• 4K Sensor
• 1080p60 (HDCI) / 4K30 (USB)
• Mechanically adjustable tilt
• Anti-flicker compensation
• Muti-color LED
CAMERA
• 1 /2.5’’ CMOS
• f/2.0 aperture (HDCI)
• f/2.8 aperture (USB)
• 4K sensor
• Min Illumination 50 lux
• Horizontal FOV - 110? / 120? DFOV (HDCI)
111? / 121? (USB)
• Vertical FOV - 66? (HDCI) 75? (USB)
• Automatic exposure and white balance
• Lens Focal Length - f=3mm (HDCI), 2.29mm
(USB)
• Focus - Fixed
• 5x electronic zoom (2.0x lossless)
• Vertical tilt – adjustable via mount
AUDIO
• 2 built-in microphones
INPUT/OUTPUT
• USB 3.0
• HDCI, 60 pin (incl: power, Comm,
IR, HDMI, audio)
COMPATIBLE PRODUCTS
• Poly G7500 2.1 or above (USB)
• Visual+ 5.9.0.1 and Companion App 1.2.0
(USB)
• Polycom Trio? 8500* with VisualPro 6.2.1
or above (HDCI)
• Polycom Trio? 8800* with VisualPro 6.2.1
or above (HDCI)
• RealPresence Group Series with 6.2.1
or above (HDCI)
CAMERA FIRMWARE UPDATES
The EagleEye Cube HDCI camera receives
firmware updates through software updates
through connected hardware. USB version
updates through Companion App, Visual+ or
Windows Software Update Utility.
AUTO GROUP FRAMING MODES
• Frame Speaker (USB only), Frame Group
or off
• Framing size: Tight, Medium, Wide
• Framing speed: Fast, Normal, Slow
DIMENSIONS (W X H X D)
• 79.75 x 81.08 x 80.5 mm
POWER CONSUMPTION
• 4 Watts, 0.34A, DC12V (HDCI)
• 0.9A, 5V (USB)
SAFETY
• NRTL Safety
• CB Safety
OTHER FEATURES
• Participant count
• Skin enhancement
• Wide dynamic range
• Lens distortion correction (HDCI)
TEMPRATURE RANGE
• Operating: 0?C to 45?
• Non-operating: -40?C to 70?C
HUMIDITY RANGE
• Operating: 15%-80%
• Non-operating: 5% to 95%
(non-condensing)
ALTITUDE RANGE
• Operating: -50 feet to 10K feet
• Non-operating: -50 feet to 35K feet
WARRANTY
One (1) year
POLYCOM EAGLEEYE IV USB CONFERENCE CAMERA
Camera Type:1/2.7" CMOS
H/V Resolution:1920 x 1080
Output:1080p30/25, 720p30/25, 960x540p30/25, 640x360p30
Compression:H.264 SVC/AVC
Lens Focal Length:f=3.5mm to 42.3mm
Lens F:1.8-2.8
Zoom:12x optical
Focus:Auto
Horizontal Field of View:6.9 - 72.5?
Vertical Field of View:3.9- 44.8?
Min. Illumination:0.5Lux @ (F1.8, AGC ON)
Exposure:Auto-iris, AGC
SNR:= 55dB
Pan range:+/- 170
Tilt range:+90/-30
I/O:USB 2.0
Power consumption:12v @ 1.5A power
Dimensions (W x H x D):141.5 x 175.9 x 151.8 mm
Video system compatibility:Certified Skype Room System, Polycom Trio 8800 Visual+
Room Size:Small, medium, large
Warranty:One-year return to factory parts and labor
POLY STUDIO X52 VIDEO CONFERENCE SYSTEM
- Brand : Polycom
- Model No : Poly Studio X52 Conference
- Audio Input : Stereo microphone - integrated
- Output : Output Power / Channel: 10 Watt, Sound Output Mode : Stereo, Type : Speaker(s)
- Humidity Range Operating : 15 - 80% (non-condensing)
- Max Operating Temperature : 40 °C
- Min Operating Temperature : 0 °C
- Interfaces : 1 x audio / video - HDMI input - 19 pin HDMI Type A, 2 x audio / video - HDMI output - 19 pin HDMI Type A, 2 x SuperSpeed USB 3.0 - 9 pin USB Type A, 1 x USB-C - 24 pin USB-C, 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
- Cables Included : 1 x HDMI cable, 1 x network cable
- Included Accessories : Clamp
- Video Input : Digital Video Capture Resolution : 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050
- Digital Zoom : 5
- Features : Interactive whiteboard compatibility, Microsoft Teams compatible, Zoom compatible, 110° diagonal field of view, automatic speaker tracking, automatic group framing, automatic people framing, 95° field of view (horizontal), Google Meet compatible, Poly DirectorAI technology
- Type : Digital camera - integrated
- Video Modes : 720/60p, 1080/60p, 1080/30p, 720/30p, 4K/30p
- Video Output : Digital Video Standard: High-Definition Multimedia Interface (HDMI)
- Max External Resolution : 3840 x 2160
- Supported Display Graphics : XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160)
- Connectivity Technology : Wireless, wired
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax
- Features : Auto-uplink (auto MDI/MDI-X), Wi-Fi Miracast ready, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, password protection, dynamic bandwidth allocation, reconfigurable MTU size, NT LAN Manager (NTLM), USB device mode
- Network / Transport Protocol : IPv4, IPv6
- Type : Network adapter
- Power Consumption Operational : 25 Watt
- Power Device : Power adapter - external
- Voltage Required : AC 120/230 V (50/60 Hz)
- Dimensions (W x D x H) : 76.95 cm x 10.3 cm x 11.52 cm
- Weight : 2.54 kg
- Warranty : 1-Year Limited Hardware Warranty
POLY STUDIO X70 VIDEO CONFERENCE SYSTEM
- Brand : Polycom
- Model No : Poly Studio X70 Conference
- Audio Input : Quad array microphone - integrated
- Output : Sound Output Mode: Stereo, Type : Speaker(s)
- Humidity Range Operating : 15 - 80% (non-condensing)
- Max Operating Temperature : 40 °C
- Min Operating Temperature : 0 °C
- Interfaces : 1 x audio / video - HDMI input - 19 pin HDMI Type A, 2 x audio / video - HDMI output - 19 pin HDMI Type A, 2 x SuperSpeed USB 3.0 - 9 pin USB Type A, 1 x USB-C - 24 pin USB-C, 1 x audio - line-in - mini-phone 3.5 mm, 1 x audio - line-out - mini-phone 3.5 mm, 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45, s1 x microphone
- Connectivity Technology : Wired
- Features : LED backlight, 1280 x 800 resolution
- Type : 8 inch touchscreen
- Cables Included : 1 x network cable, 2 x HDMI cable
- Included Accessories : Wall mount
- Connectivity Technology : Wireless, wired
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
- Features : OCSP support, auto-uplink (auto MDI/MDI-X), IPv6 support, MIMO technology, IPv4 support, Wi-Fi Miracast ready, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, AES encryption, Simple Certificate Enrollment Protocol (SCEP), password protection, dynamic bandwidth allocation, reconfigurable MTU size, electronic privacy shutter
- Network / Transport Protocol : IPv4, IPv6
- Type : Network adapter
- Power Device : Power adapter - external
- Voltage Required : AC 120/230 V (50/60 Hz)
- Video Input : Digital Video Capture Resolution: 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050
- Digital Zoom : 7.3
- Features : Auto tracking, auto-framing, 120° field of view (horizontal), Miracast connectivity, 70° field of view (horizontal), 78° diagonal field of view, 140° field of view (diagonal), 2x 20 megapixels sensors
- Interface Type : HDMI
- Type : Digital camera (color) - integrated
- Video Modes : 1080/30p, 720/30p, 4K
- Output : Digital Video Standard: High-Definition Multimedia Interface (HDMI)
- Max External Resolution : 3840 x 2160
- Supported Display Graphics : XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160)
- Dimensions (W x D x H) : 37 inch x 14 inch x 8 inch
- Weight : 19 lbs
- Warranty : 1-Year Limited Hardware Warranty
POLY STUDIO USB VIDEO BAR CONFERENCE
- Brand : Polycom
- Model No : Poly Studio USB Video Bar Conference
- Field of View : 120°
- Capture Resolution : 3840 x 2160
- Zoom : 5x Digital
- Built-In Microphone : 6-Element Beamforming Array, 12' / 3.65 m Pickup Range, 120 Hz to 16 kHz Frequency Response
- Built-In Speakers : Stereo: 100 Hz to 20 KHz Frequency Response, Output: 90 dB at 1.6' / 0.5 m
- Connectors : 1 x USB 3.0 Type-C Interface, 1 x 3.5 mm Stereo Audio Input, 1 x Power Connector
- Wi-Fi : 802.11ac, IEEE 802.11a/b/g/n
- Bluetooth : 4.2
- Security Lock Support : Kensington
- Security : 802.1x Support
- Supported Operating Systems : Windows 7, 8.1, 10, macOS 10.12, 10.13, 10.14
- Supported Audio/Video Drivers : UAC 1.0 Audio, UVC 1.1/1.5 Video, HID 1.11
- Power Requirements : 12 VDC, 5 A, 100 to 240 VAC, 50/60 Hz
- Operating Temperature : 32 to 104°F / 0 to 40°C
- Storage Temperature : -13 to 160°F / -25 to 70°C
- Relative Humidity : 5 to 95%, Non-Condensing
- Dimensions (W x D x H) : 15.6 cm x 70 cm x 7 cm
- Weight : 2.9 kg
- Warranty : 1-Year Limited Hardware Warranty
POLY STUDIO P5 PROFESSIONAL WEBCAM CONFERENCE
- Brand : Polycom
- Model No : Poly Studio P5 Webcam Conference
- Camera : 1080p (Full HD), 720P (HD) Compatible, Auto focus with 4x zoom / EPTZ, 80° DFOV, Low light quality & true color images, certified by Zoom and Microsoft Teams, Custom controls through Poly Lens Desktop
- Microphone : Single directional microphone optimized for personal workspaces, 50 Hz to 16 kHz frequency response
- System : Windows version 8.1, 10, Mac OS X version 10.7 or later, USB 2.0 port
- Device Driver Support : USB 2.0, UVC/UAC Plug and Play compatible
- Compatibility : Certified for Microsoft Teams and Zoom applications, Compatible with any application that supports standard USB/UVC standards
- Features : Integrated USB 2.0 Type A cable, Integrated privacy shutter, Adjustable monitor clamp, Tripod ready, USB-A port built-in for Poly BT600 Bluetooth adapter, Status LED indicates calling and mute state
- Operating Conditions : Temperature: 0° C to +40° C, 5% to 95% relative humidity, non-condensing, Altitude: Up to 10,000 ft
- Package Contents : Poly Studio P5 webcam, Removable monitor clamp, Setup sheet
- Dimensions (W x D x H) : 60 mm x 68 mm x 43 mm
- Weight : 98g
- Warranty : 2-Year Limited Hardware Warranty
POLY TRIO C60 SMART IP CONFERENCE PHONE
- Product Brand: HP Poly
- Design: The Smartphone for modern conference room needs
- Operation system: Microsoft Teams version available
- Space : Scalable for all meeting spaces
- Rotation: 360° microphone coverage
- Distance: Up to 20 ft microphone pickup
- Noise specification: Poly NoiseBlock eliminates non-speech background noise
- Display: 5 color screen offers simple operation
- Button controls: Mute buttons on each leg
- Network Connectivity: mobile devices or laptops via Bluetooth and USB Secure Wi-Fi network connectivity
- Dimensions: 16 × 16 × 4 inches
- Weight: 8 lbs
POLY STUDIO V52 USB VIDEO BAR
- Brand: Polycom
- Model No: Poly Studio V52 Video Conference
- Audio: Full duplex audio; Acoustic echo cancellation; Poly NoiseBlockAI technology; Poly Acoustic Fence technology
- Ports: 1 USB Type-C 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 RJ-11; 2 HDMI-out 2.0 (for provisioning support only); 1 RJ-45 Ethernet port; 1 HDMI-in 1.4 (not supported)
- Package dimensions (W x D x H): 850 x 205 x 145 mm
- Package weight: 3000 g
- Power supply type: External
- Security management: AES 128 bits encryption; AES 256 bits encryption; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration
- Minimum dimensions (W x D x H): 769.5 x 115.2 x 103 mm
- Minimum dimensions (W x D x H): 30.3 x 4.5 x 4 in
- Weight: 2540 g
- Weight: 5.6 lb
- What's in the box: Ethernet cable; Monitor clamp; Privacy cover; Quick start guide; Warranty card; Product notice; AC power adapter; HDMI cable; Power cable; USB Type-A to USB Type-C cable; Poly Studio V52; Safety documents; Compliance documents
- Warranty: Poly standard one-year limited warranty
