mrs rack server
Latest Models mrs rack server Pricelist, mrs rack server Dealers in hyderabad, telangana
SMARTRACK SCHNEIDER ELECTRIC PRESIDENT SYSTEMS
Product Description:
The SmartRack is an innovative enclosure solution designed for small-and-medium segment customers and branch offices. Keeping in view the need for economical packaging, it can accommodate any standard 19 equipment. Made completely of high-quality steel, with appealing aesthetics, SmartRack can be supplied in completely knocked-down condition (CKD) and can be easily assembled at site. A smart choice today that will stand you in good stead tomorrow.
APW STANDARD SERVER RACKS
OVERVIEW
The SmartRack is an innovative enclosure solution designed for small-and-medium segment customers and branch offices. Keeping in view the need for economical packaging, it can accommodate any standard 19” equipment. Made completely of high-quality steel, with appealing aesthetics, SmartRack can be supplied in completely knocked-down condition (CKD) and can be easily assembled at site. A smart choice today that will stand you in good stead tomorrow.
Features:
Conforms to DIN 41494 and EIA 310 standards
Attractive styling to blend with office environments
Supplied fully assembled or in completely knocked-down (CKD ) kit form
Glass or partly perforated metal front door options
Perforated rear door
Top and bottom cover with cable entry provision
Fully recessible 19” equipment mounting angle
Ventilated top and bottom covers
Removable side panels with slam latches for easy access
Load rating 250 Kgs, with 500 Kgs option
A NEW ERA IN POWER CONNECTION RELIABILITY
Features:
A -19inch horizondal -p1-1060-H0-OCTOGONAL socket 6x5/15amp with 16amp MCB
B -19inch horizondal -p1-2100-H0-IEC C13,10X10 AMP WITH 16Amp MCB
C -19inch horizondal -p1-3062-H0-IEC C19,6X16 AMP WITH 20Amp MCB
D -19inch horizondal -p1-5060-H0-Wall mount,6x5 amp with 5 amp fuse
E -Vertical-p1-1060-XY-OCTOGONAL socket 8x5/15amp with 16amp MCB
F -Vertical-p1-1121-XY-OCTOGONAL socket 12x5/15amp with 32amp MCB
G -Vertical-p1-5140-00-PDU vertical,14x5amp,with16 amp MCB
H -Vertical-p1-C161-XY-IEC C13 12X10 AMP C19 4X16 AMP with 32 amp MCB
I -Vertical-p1-2161-XY-IEC C13 16X10 AMP WITH 32Amp WITH MCB
J -Vertical-p1-2120-XY-IEC C13 12X10 AMP WITH 16Amp MCB
MRS CY 6065 17 FLOOR MOUNT RACK
- Total Height: 1039mm
- Usable Height: 17U
- Total width: 600mm
- Usable width: 19
- Total Depth: 650mm
- Usable Depth: 570mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6080 17U FLOOR MOUNT RACK
- Total Height: 1039mm
- Usable Height: 17U
- Total width: 800mm
- Usable width: 19
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6010 17 FLOOR MOUNT RACK
- Total Height: 1039mm
- Usable Height: 17U
- Total width: 600mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19” Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6065 22 FLOOR MOUNT RACK
- Total Height: 1260mm
- Usable Height: 22U
- Total width: 600mm
- Usable width: 19
- Total Depth: 650mm
- Usable Depth: 570mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6080 22 FLOOR MOUNT RACK
- Total Height: 1260mm
- Usable Height: 22U
- Total width: 600mm
- Usable width: 19
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19” equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6010 22 FLOOR MOUNT RACK
- Total Height: 1260mm
- Usable Height: 22U
- Total width: 600mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6065 27 FLOOR MOUNT RACK
- Total Height: 1483mm
- Usable Height: 27U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 650mm
- Usable Depth: 570mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19” equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6080 27 FLOOR MOUNT RACK
- Total Height: 1483mm
- Usable Height: 27U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6010 27 FLOOR MOUNT RACK
- Total Height: 1483mm
- Usable Height: 27U
- Total width: 800mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8080 27 FLOOR MOUNT RACK
- Total Height: 1483mm
- Usable Height: 27U
- Total width: 800mm
- Usable width: 19
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8010 27 FLOOR MOUNT RACK
- Total Height: 1483mm
- Usable Height: 27U
- Total width: 800mm
- Usable width: 19"
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator

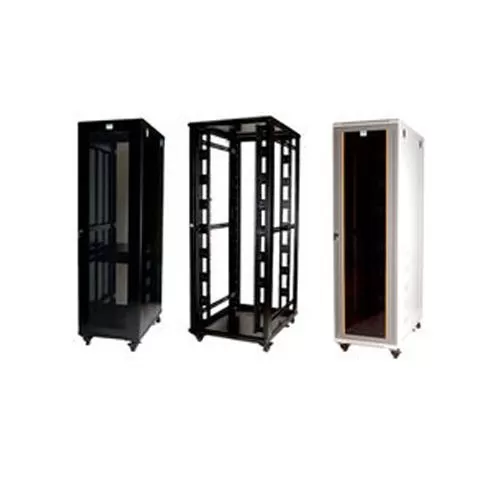

MRS CY 6065 32 FLOOR MOUNT RACK
- Total Height: 1705mm
- Usable Height: 32U
- Total width: 600mm
- Usable width: 19
- Total Depth: 650mm
- Usable Depth: 570mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6080 32 FLOOR MOUNT RACK
- Total Height: 1705mm
- Usable Height: 32U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility,and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6010 32 FLOOR MOUNT RACK
- Total Height: 1705mm
- Usable Height: 32U
- Total width: 800mm
- Usable width: 19"
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8080 32 FLOOR MOUNT RACK
- Total Height: 1705mm
- Usable Height: 32U
- Total width: 800mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19” Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8010 32 FLOOR MOUNT RACK
- Total Height: 1705mm
- Usable Height: 32U
- Total width: 800mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19” equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6065 36 FLOOR MOUNT RACK
- Total Height: 1883mm
- Usable Height: 36U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 650mm
- Usable Depth: 570mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6080 36 FLOOR MOUNT RACK
- Total Height: 1883mm
- Usable Height: 36U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6010 36 FLOOR MOUNT RACK
- Total Height: 1883mm
- Usable Height: 36U
- Total width: 800mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8080 36 FLOOR MOUNT RACK
- Total Height: 1883mm
- Usable Height: 36U
- Total width: 800mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8010 36 FLOOR MOUNT RACK
- Total Height: 1883mm
- Usable Height: 36U
- Total width: 800mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6065 42U FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6080 42U FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 600mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6010 42 FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 800mm
- Usable width: 19
- Total Depth: 1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8080 42U FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 800mm
- Usable width: 19"
- Total Depth: 800mm
- Usable Depth: 720mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8010 42U FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 800mm
- Usable width: 19"
- Total Depth:1000mm
- Usable Depth: 920mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 6012 42U FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 600mm
- Usable width: 19
- Total Depth:1200mm
- Usable Depth: 1120mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS CY 8012 42 FLOOR MOUNT RACK
- Total Height: 2150mm
- Usable Height: 42U
- Total width: 800mm
- Usable width: 19
- Total Depth: 1200mm
- Usable Depth: 1120mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: CKD (knockdown)
- Front Door: Lockable Toughended Glass Door / Perforeted
- Basic Frame: Aluminium Extrusion Vertical Profile
- Equipment Mounting: DIN Standard / Direct M6 Tap
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Fixed to the Frame Vented and Cable entry/exit cut outs from Top & Bottom Panel
- Standard Mounting Option: Castor wheels (Front 2 wheels with Break and rear without break) Or levelers
- Standard Color: Grey & Off White or Black
- Static Load: 750 kgs with weels 950 kgs Levelers or Plinth
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provides the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
MRS SS 5540 04 WALL MOUNT RACK
- Total Height: 258mm
- Usable Height: 04U
- Total width: 550mm
- Usable width: 19"
- Total Depth: 400mm
- Usable Depth: 350mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19” equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5550 04 WALL MOUNT RACK
- Total Height: 258mm
- Usable Height: 04U
- Total width: 550mm
- Usable width: 19
- Total Depth: 500mm
- Usable Depth: 450mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5560 04 WALL MOUNT RACK
- Total Height: 258mm
- Usable Height: 04U
- Total width: 550mm
- Usable width: 19
- Total Depth: 600mm
- Usable Depth: 550mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5540 06 WALL MOUNT RACK
- Total Height: 347mm
- Usable Height: 06U
- Total width: 550mm
- Usable width: 19
- Total Depth: 400mm
- Usable Depth: 350mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5550 06 WALL MOUNT RACK
- Total Height: 347mm
- Usable Height: 06U
- Total width: 550mm
- Usable width: 19
- Total Depth: 500mm
- Usable Depth: 450mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5560 09 WALL MOUNT RACK
- Total Height: 480mm
- Usable Height: 09U
- Total width: 550mm
- Usable width: 19
- Total Depth: 600mm
- Usable Depth: 550mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5540 12 WALL MOUNT RACK
- Total Height: 613mm
- Usable Height: 12U
- Total width: 550mm
- Usable width: 19"
- Total Depth: 400mm
- Usable Depth: 350mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5550 12 WALL MOUNT RACK
- Total Height: 613mm
- Usable Height: 12U
- Total width: 550mm
- Usable width: 19
- Total Depth: 500mm
- Usable Depth: 450mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5560 12 WALL MOUNT RACK
- Total Height: 613mm
- Usable Height: 12U
- Total width: 550mm
- Usable width: 19
- Total Depth: 600mm
- Usable Depth: 550mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5540 15 WALL MOUNT RACK
- Total Height: 747mm
- Usable Height: 15U
- Total width: 550mm
- Usable width: 19
- Total Depth: 400mm
- Usable Depth: 350mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5550 15 WALL MOUNT RACK
- Total Height: 747mm
- Usable Height: 15U
- Total width: 550mm
- Usable width: 19
- Total Depth: 500mm
- Usable Depth: 450mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5560 15 WALL MOUNT RACK
- Total Height: 747mm
- Usable Height: 15U
- Total width: 550mm
- Usable width: 19
- Total Depth: 600mm
- Usable Depth: 550mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5560 06 WALL MOUNT RACK
- Total Height: 347mm
- Usable Height: 06U
- Total width: 550mm
- Usable width: 19
- Total Depth: 600mm
- Usable Depth: 550mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5540 09 WALL MOUNT RACK
- Total Height: 480mm
- Usable Height: 09U
- Total width: 550mm
- Usable width: 19
- Total Depth: 400mm
- Usable Depth: 350mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
MRS SS 5550 09 WALL MOUNT RACK
- Total Height: 480mm
- Usable Height: 09U
- Total width: 550mm
- Usable width: 19
- Total Depth: 500mm
- Usable Depth: 450mm
- Technical Data:
- Rack Standard: Conforms to DIN 41494 or equivalent standard
- Construction: Welded
- Front Door: Lockable Toughended Glass Door
- Basic Frame: Steel
- Equipment Mounting: DIN Standard
- Mounting Angle: 19 Mounting angle made of formed steel
- Standard Finish: Powder Coated
- Top and Bottom Cover: Welded to Frame Vented and Cable entry exit cut outs
- Standard Color: Grey & Off White or Black
- Static Load: 40 kgs
- Features:
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19 equipment mounting verticals provide the better mounting flexibility and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
- Optional Accessories:
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
