hp raid controller
Latest Models hp raid controller Pricelist, hp raid controller Dealers in hyderabad, telangana
HP H240AR SMART HOST BUS ADAPTER
- Model Number: 726757 B21
- Form factor: Flexible smart host bus controller
- Performance:
- 12 Gb/s SAS (Bandwidth per physical link)
- 96 Gb/s total available bandwidth (8 physical links x 12 Gb/s)
- Features:
- SAS Technology delivers high performance and data bandwidth up to 12 Gb/s per physical link
- Mix and Match SAS and SATA hard drives; Deploy drive technology as needed
- PCIe 3.0 x8 (8 GB/s bandwidth)
- Ports: Eight (8) SAS physical links distributed across 2 x4 internal SFF8087 Mini SAS connectors
- Capacity:
- Eight 12 Gb/s SAS physical links supporting up to 2 simultaneous x4 SAS Ports
- Capacity up to 144TB
- Warranty: 1 year Warranty
HP SMART ARRAY P440 4G CONTROLLER
- Model Number: 726821 B21
- Standard Features:
- Storage interface (SAS/SATA):
- 8 physical links across 1 x8 internal port
- 12Gb/s SAS 6Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives SAS tape autoloaders and SAS tape libraries
- 4 GiBytes Flash Backed Write Cache (FBWC)
- PCI Express Gen3 x8 link
- RAID 0 1 10 5 50 6 60 10 ADM (Advanced Data Mirroring)
- RAID or HBA mode
- Legacy and UEFI boot operation
- Up to 200 physical drives
- Up to 64 logical drives
- HPE SmartCache (optional license)
- HPE Secure Encryption (optional license)
- HPE SSD Smart Path
- VMware Virtual SAN certified
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Erase
- Performance Optimization Degraded Reads and Read Coalescing
- Power Efficiency
- Seamless upgrades to and from other HPE Smart Array controllers
- Recovery ROM to protect against controller ROM corruption
- Low profile standard PCI Express plug in card
- Ships with a full size and a low profile bracket
- Dimensions (excluding bracket): 6.6 in x 2.7 in x 0.57 in (16.8 cm x 6.86 cm x 1.6 cm)
- Ports:
- Internal: 8 SAS/SATA physical links across 1 x8 port
- Performance:
- 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
- PCI Express Gen3 x8 link width
- 4 GiBytes 72 bit wide DDR3 1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
- Read ahead caching
- Write back caching
- Warranty: The warranty for this device is 3 years parts only
HP SMART ARRAY P441 4G CONTROLLER
- Model Number: 726825 B21
- Standard Features :
- Storage interface (SAS/SATA):
- 8 physical links across 2 x4 external ports
- 12Gb/s SAS 6Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives SAS tape autoloaders and SAS tape libraries
- 4 GiBytes Flash Backed Write Cache (FBWC)
- PCI Express Gen3 x8 link
- RAID 0 1 10 5 50 6 60 10 ADM (Advanced Data Mirroring)
- RAID or HBA mode
- Legacy and UEFI boot operation
- Up to 200 physical drives
- Up to 64 logical drives
- Up to 8 daisy chained HPE D3600 Disk Enclosure and HPE D3700 Disk Enclosure in dual domain configuration
- HPE SmartCache (optional license)
- HPE Secure Encryption (optional license)
- HPE SSD Smart Path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Erase
- Performance Optimization Degraded Reads and Read Coalescing
- Power Efficiency
- Seamless upgrades to and from other HPE Smart Array controllers
- Recovery ROM to protect against controller ROM corruption
- Low profile standard PCI Express plug in card
- Dimension (excluding bracket): 7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)
- Ports:
- External: 8 SAS/SATA physical links across 2 x4 port
- Performance
- 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
- PCI Express Gen3 x8 link width
- 4 GiBytes 72 bit wide DDR3 1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
- Read ahead caching
- Write back caching
- Warranty: The warranty for this device is 3 years parts only
HP SMART ARRAY P840 4G CONTROLLER
- Model Number: 726897 B21
- Product features:
- Supports up to 16 drives without need for expander card
- Seamless upgrades to and from other HP Smart Array controllers
- Recovery Read-Only Memory (ROM) protects against ROM corruption
- Capable of supporting both legacy and Unified Extensible Firmware Interface (UEFI) boot operation on Gen9 servers
- 4GB Transportable Flash-backed write cache (Not all of which is available for user data)
- PCIe 3.0 8 x Host interface provides up to 8 GiB/s in each direction
- 12 Gb/s SAS Performance when used on Gen9 servers with 12 Gb/s devices (Hard Disk Drive (HDD) or Solid State Drive (SSD))
- 12 Gb/s SAS Technology delivers up to 1200 MB/s per physical link
- 6 Gb/s SATA Technology delivers up to 600 MB/s for directly attached SATA drives
- Mix And Match SAS and SATA drives
- HP SSD Smart Path feature included in the Smart Array software stack
- HP SmartCache feature included with P840 controller
- HP Secure Encryption, available as an option, is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers
- Performance:
- 12 Gb/s SAS (1200 MB/s Theoretical bandwidth per physical lane)
- 4 GiBytes 72 bit wide DDR3 1866 FBWC provides up to 14.9 GB/s maximum cache bandwidth
- PCI Express Gen3 x 8 link width
- Read ahead caching
- Write Back caching
- Ports: 16 SAS/SATA Physical links distributed across 2 double wide Mini SAS 8i connectors
- Warranty: 1 year Warranty

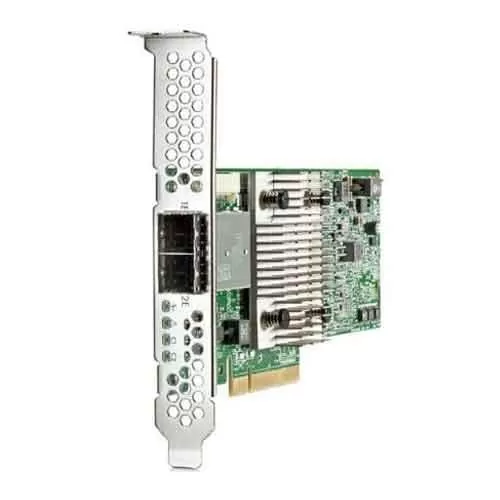

HPE H241 SMART HOST BUS ADAPTER
- Model Number: 726911 B21
- Performance:
- 12Gb/s SAS (bandwidth per physical link)
- 96Gb/s total available bandwidth (8 physical links x 12Gb/s)
- PCIe 3.0 host interface x8 (8GT/s bandwidth per lane)
- Features:
- SAS technology delivers high performance and data bandwidth up to 12Gb/s per physical link
- Mix and match SAS and SATA hard drives; deploy drive technology as needed
- PCIe 3.0 x8 ( 8GB/s bandwidth)
- Ports: Eight (8) SAS physical links distributed across 2 x4 external SFF-8644 Mini-SAS HD connectors
- Capacity:
- Eight 12Gb/s SAS physical links supporting up to 2 simultaneous x4 Wide SAS Ports
- Capacity up to 576TB of SAS or 576TB SATA
- Form factor: Either high profile or low-profile PCIe 3.0 slots (parts included with option)
- Warranty: 1 year Warranty
HP SMART ARRAY P440 2G CONTROLLER
- Model Number: 820834 B21
- Standard Features :
- Storage interface (SAS/SATA):
- 8 physical links across 1 x8 internal port
- 12Gb/s SAS 6Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives SAS tape autoloaders and SAS tape libraries
- 4 GiBytes Flash Backed Write Cache (FBWC)
- PCI Express Gen3 x8 link
- RAID 0 1 10 5 50 6 60 10 ADM (Advanced Data Mirroring)
- RAID or HBA mode
- Legacy and UEFI boot operation
- Up to 200 physical drives
- Up to 64 logical drives
- HPE SmartCache (optional license)
- HPE Secure Encryption (optional license)
- HPE SSD Smart Path
- VMware Virtual SAN certified
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Erase
- Performance Optimization-Degraded Reads and Read Coalescing
- Power Efficiency
- Seamless upgrades to and from other HPE Smart Array controllers
- Recovery ROM to protect against controller ROM corruption
- Low-profile standard PCI Express plug in card
- Ships with a full size and a low profile bracket
- Dimensions (excluding bracket): 6.6 in x 2.7 in x 0.57 in (16.8 cm x 6.86 cm x 1.6 cm)
- Ports
- Internal: 8 SAS/SATA physical links across 1 x8 port
- Performance
- 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
- PCI Express Gen3 x8 link width
- 4 GiBytes 72 bit wide DDR3-1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
- Read ahead caching
- Write back caching
- Warranty: The warranty for this device is 3 years parts only
HPE SMART ARRAY P408E P SR GEN10 CONTROLLER
- Model Number: 804405 B21
- Features:
- Storage interface (SAS/SATA)
- 8 SAS lanes across 2 x4 external Mini-SAS HD ports
- 12 Gb/s SAS 6 Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives SAS tape autoloaders and SAS tape libraries
- 4GB FBWC
- PCI express 3.0 x8 link
- RAID 0 1 5 6 10 50 60 1 Advanced data mirroring (ADM) 10 ADM
- Mixed mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI system utilities (Storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart array SR SmartCache (Optional license)
- HPE Smart array SR secure encryption (Optional license)
- HPE SSD smart path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Rapid rebuild
- Performance optimization degraded reads and read coalescing
- Power efficiency
- Seamless upgrades from HPE Smart array S class and E class controllers
- FIPS 140 2 level 1 implementation under test (Expected validation complete in 2018)
- Ports
- External: 8 SAS/SATA lanes across 2 x4 mini SAS HD ports
- Form factor
- PCIe Plug In controller (Does not occupy a PCIe expansion slot)
- Performance
- 12 Gb/s SAS (1200 Mb/s theoretical bandwidth per SAS lane)
- 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
- PCI express 3.0 x8 link width
- 4GB 72 bit wide DDR4-2100 FBWC provides up to 16.8 GB/s maximum cache bandwidth
- Read ahead caching
- Write Back caching
- Warranty: 1 year Warranty
HPE SMART ARRAY P408I P SR GEN10 CONTROLLER
- Model Number: 830824 B21
- Features:
- Storage interface (SAS/SATA)
- 8 SAS lanes across 2 x 4 internal Mini SAS ports
- 12 Gb/s SAS 6 Gb/s SATA technology
- Mix and Match SAS and SATA drives to the same controller
- Support for SAS tape drives
- 2GB FBWC
- PCI express 3.0 x 8 link
- RAID 0 1 5 6 10 50 60 1 Advanced Data Mirroring (ADM) 10 ADM
- Mixed mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI system utilities (Storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR SmartCache (Optional license)
- HPE Smart Array SR secure encryption (Optional license)
- HPE Solid State Disk (SSD) smart path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive sanitize
- Performance Optimization Degraded reads and read coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array S class and E class controllers
- FIPS 140 2 level 1 implementation under test (Expected validation complete in 2018)
- Ports
- Internal: 8 SAS/SATA lanes across 2 x 4 Mini-SAS ports
- Form factor
- PCIe Plug In controller (Occupies a PCIe expansion slot)
- Performance
- 12 Gb/s SAS (1200 MB/s theoretical bandwidth per SAS lane)
- 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
- PCI express 3.0 x 8 link width
- 2GB 72 bit wide DDR4 2100 FBWC provides up to 16.8 GB/s maximum cache bandwidth
- Read ahead caching
- Write Back caching
- Warranty: 1 year Warranty
HPE SMART ARRAY E208E P SR GEN10 CONTROLLER
- Model Number: 804398 B21
- Standard Features :
- Storage interface (SAS/SATA):
- 8 SAS lanes across 2 x4 external MiniSAS HD ports
- 12Gb/s SAS 6Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- PCI Express 3.0 x8 link
- RAID 0 1 5 10
- Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI System Utilities (storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- Supports up to 8 daisy chained HPE D3610 Disk Enclosure and HPE D3710 Disk Enclosure in dual
- domain configuration
- HPE Smart Array SR Secure Encryption (optional license)
- HPE SSD Smart Path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Sanitize
- Performance Optimization Degraded Reads and Read Coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array Software RAID
- Seamless upgrades to HPE Smart Array P-class Controllers
- Ports
- External: 8 SAS/SATA lanes across 2 x4 external Mini SAS HD ports
- Form Factor: PCIe Plug in Controller (occupies a PCIe expansion slot)
- Performance:
- 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
- PCI Express 3.0 x8 link width
- Warranty: The warranty for this device is 3 years parts only
HPE SMART ARRAY E208I A SR G10 LH CONTROLLER
- Model Number: 869079 B21
- Storage interface (SAS/SATA)
- 8 SAS lanes across 2 x 4 internal mini SAS ports
- 12 Gb/s SAS 6 Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- PCI Express 3.0 x 8 link
- RAID 0 1 5 10
- Mixed mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI System utilities (Storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR secure encryption (Optional license)
- HPE Solid State Disk (SSD) smart path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive sanitize
- Performance optimization Degraded reads and read coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array Software RAID
- Seamless upgrades to HPE Smart Array P class controllers
- Ports (Internal): 8 SAS/SATA lanes across 2 x 4 internal mini SAS ports
- Form factor: Type a Flexible/Modular controller (Does not occupy a PCIe Expansion slot)
- Performance
- 12 Gb/s SAS (1200 Mb/s Theoretical bandwidth per physical lane)
- 6 Gb/s SATA (600 Mb/s Theoretical bandwidth per physical lane)
- PCI Express 3.0 x 8 link width
- Warranty: 1 year Warranty
HPE H240 SMART HOST BUS ADAPTER
- Model Number: 726907 B21
- Performance:
- 12 Gb/s SAS (bandwidth per physical link)
- 96 Gb/s total available bandwidth (8 physical links x 12 Gb/s)
- Features:
- SAS technology delivers high performance and data bandwidth up to 12 Gb/s per physical link
- Mix and match SAS and SATA hard drives; deploy drive technology as needed
- PCIe 3.0 x8 ( 8GB/s bandwidth)
- RAID 0 1 5 10 or HBA mode
- Ports: Eight (8) SAS physical links distributed across 2 x4 internal Mini-SAS connectors
- Capacity
- Eight 12 Gb/s SAS physical links supporting up to 2 simultaneous x4 SAS Ports
- Capacity up to 144TB of SAS or 144TB SATA
- Form factor: Either high profile or low profile PCIe 3.0 slots (parts included with option)
- Warranty: 1 year Warranty
HPE SMART ARRAY P816I A SR GEN10 CONTROLLER
- Model Number: 804338 B21
- Features:
- Storage interface (SAS/SATA)
- 16 SAS lanes across 4 x4 internal mini SAS ports
- 12 Gb/s SAS 6 Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- 4GB FBWC
- PCI express 3.0 x8 link
- RAID 0 1 5 6 10 50 60 1 ADM 10 Advanced Data Mirroring (ADM)
- Mixed mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI system utilities (Storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR SmartCache (License included)
- HPE Smart Array SR secure encryption (Optional license)
- HPE SSD smart path
- HPE SSD smart path
- Rapid rebuild
- Drive sanitize
- Performance optimization - Degraded reads and read coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array S-class and E-class controllers
- FIPS 140-2 Level 1 implementation under test (Expected validation complete in 2018)
- Ports
- Internal: 16 SAS/SATA lanes across 4 x4 mini SAS ports
- Form factor: Type a Flexible/Modular controller (Does not occupy a PCIe expansion slot)
- Performance
- 12 Gb/s SAS (1200 Mb/s theoretical bandwidth per SAS lane)
- 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
- PCI express 3.0 x8 link width
- 4GB 72-bit wide DDR4-2100 flash-backed write cache provides up to 16.8 Gb/s maximum cache bandwidth
- Read ahead caching
- Write back caching
- Warranty: 1 year Warranty
HPE SMART ARRAY E208I P SR GEN10 CONTROLLER
- Model Number: 804394 B21
- Features:
- Storage interface (SAS/SATA)
- 8 SAS lanes across 2 x4 internal mini SAS ports
- 12 Gb/s SAS 6 Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- PCI express 3.0 x8 link
- RAID 0 1 5 10
- Mixed mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI system utilities (Storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR secure encryption (Optional license)
- HPE Solid State Disk (SSD) smart path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive sanitize
- Performance optimization-degraded reads and read coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array software RAID
- Seamless upgrades to HPE Smart Array P-class controllers
- Ports
- Internal: 8 SAS/SATA lanes across 2 x4 internal mini SAS ports
- Performance
- 12 Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
- 6 Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
- PCI express 3.0 x8 link width
- Warranty: 1 year Warranty
HPE SMART ARRAY E208I A SR GEN10 CONTROLLER
- Model Number: 804326 B21
- Standard Features
- Storage interface (SAS/SATA)
- 8 SAS lanes across 2 x4 internal Mini SAS ports
- 12Gb/s SAS 6Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- PCI Express 3.0 x8 link
- RAID 0 1 5 10
- Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
- Windows Storage Spaces Direct validated
- VMware Virtual SAN certified
- Legacy and UEFI boot operation
- UEFI System Utilities (storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR Secure Encryption (optional license)
- HPE SSD Smart Path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Sanitize
- Performance Optimization-Degraded Reads and Read Coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array Software RAID
- Seamless upgrades to HPE Smart Array P-class Controllers
- Ports
- Internal: 8 SAS/SATA lanes across 2 x4 internal Mini SAS ports
- Form Factor
- Type a Flexible/Modular Controller (does not occupy a PCIe Expansion Slot)
- Performance 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
- PCI Express 3.0 x8 link width
- Warranty: The warranty for this device is 3 years parts only
HPE SMART ARRAY P816I A SR G10 LH CONTROLLER
- Model Number: 869083 B21
- Storage interface (SAS/SATA)
- 16 SAS lanes across 4 x4 internal mini-SAS ports
- 12 Gb/s SAS 6 Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- 4GB FBWC
- PCI express 3.0 x8 link
- RAID 0 1 5 6 10 50 60 1 ADM 10 Advanced Data Mirroring (ADM)
- Mixed mode (RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI system utilities (Storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR SmartCache (License included)
- HPE Smart Array SR secure encryption (Optional license)
- HPE SSD smart path
- HPE SSD smart path
- Rapid rebuild
- Drive sanitize
- Performance optimization Degraded reads and read coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array S-class and E class controllers
- FIPS 140-2 Level 1 implementation under test (Expected validation complete in 2018)
- Ports
- Internal: 16 SAS/SATA lanes across 4 x4 mini-SAS ports
- Form factor: Type a Flexible/Modular controller (Does not occupy a PCIe expansion slot)
- Performance
- 12 Gb/s SAS (1200 Mb/s theoretical bandwidth per SAS lane)
- 6 Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
- PCI express 3.0 x8 link width
- 4GB 72 bit wide DDR4-2100 flash backed write cache provides up to 16.8 Gb/s maximum cache bandwidth
- Read ahead caching
- Write back caching
- Warranty: 1 year Warranty
HPE SMART ARRAY P408I A SR GEN10 12G SAS MODULAR LH CONTROLLER
- Model Number: 869081 B21
- Form factor: Type a modular controller
- Ports: Internal: 8 SAS lanes across 2 x4 Mini SAS ports
- Cache: 2 GB Flash Backed Write Cache
- Transfer rate:
- 12Gb/s SAS per lane
- 6Gb/s SATA per lane
- PCI Express 3.0 x8 lane width
- SATA speed: 0 1 5 6 10 50 60 1 ADM 10 ADM
- Warranty: The warranty for this device is 3 years parts only
HPE SMART ARRAY P824I P MR GEN10 12G SAS PCIE CONTROLLER
- Model Number: 870658 B21
- Form factor: PCIe Plug in Controller
- Ports: Internal: 24 SAS lanes across six x4 mini-SAS HD ports
- Cache: 4 GB Flash Backed Write Cache
- RAID levels; 0 1 5 6 10 50 60
- Minimum dimensions ( H x W x D): 19.05 x 24.13 x 5.71 cm
- Weight: 0.34 kg
- Warranty: The warranty for this device is 3 years parts only
HPE SMART ARRAY P408I A SR GEN10 CONTROLLER
- Model Number: 804331 B21
- Standard Features
- Storage interface (SAS/SATA)
- 8 SAS lanes across 2 x4 internal Mini SAS ports
- 12Gb/s SAS 6Gb/s SATA technology
- Mix and match SAS and SATA drives to the same controller
- Support for SAS tape drives
- 2 GB Flash Backed Write Cache (FBWC)
- PCI Express 3.0 x8 link
- RAID 0 1 5 6 10 50 60 1 ADM 10 ADM (Advanced Data Mirroring)
- Mixed Mode (RAID logic drives and HBA physical drives simultaneously)
- Windows Storage Spaces Direct validated
- VMware Virtual SAN certified
- Legacy and UEFI boot operation
- UEFI System Utilities (storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR SmartCache (optional license)
- HPE Smart Array SR Secure Encryption (optional license)
- HPE SSD Smart Path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Sanitize
- Performance Optimization Degraded Reads and Read Coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array S class and E-class controllers
- FIPS 140 2 Level 1 Implementation Under Test (expected validation complete in 2018)
- Ports
- Internal: 8 SAS/SATA lanes across 2 x4 Mini SAS ports
- Form Factor: Type a Flexible/Modular Controller (does not occupy a PCIe Expansion Slot)
- Performance
- 12Gb/s SAS (1200 MB/s theoretical bandwidth per SAS lane)
- 6Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
- PCI Express 3.0 x8 link width
- 2 GB 72 bit wide DDR4-2100 Flash Backed Write Cache provides up to 16.8 GB/s maximum cache bandwidth
- Read ahead caching
- Write back caching
- Warranty: The warranty for this device is 3 years parts only
HPE SMART ARRAY SR SECURE ENCRYPTION E LTU
- Model Number: Q2F26AAE
- Encryption supported on logical volumes only
- Automatic key management
- Broad encryption coverage
- Encrypts SAS/SATA drive and controller cache memory
- Compliance with regulations such as HIPAA and Sarbanes-Oxley
- FIPS 140-2 Level 1validated (see list of validated controllers below)
- High Availability and Scalability:
- Local Key Management Mode
- Remote Key Management Mode
- Instant volume erase
- Security reset function
- Simplified Deployment and Management
- Warranty: 1 year Warranty
HPE SMART ARRAY SR SMARTCACHE LTU
- Model Number: D7S26A
- Standard Features
- Up to 32 SSD Cache volumes
- Up to 64 total number of HDD volumes and cache volumes
- Maximum logical drive size is 281 TB
- 1 TB maximum SSD SmartCache capacity per controller
- Supported with all ProLiant Gen8 Gen9 and Gen10 supported SSDs
- Warranty: 1 year Warranty
HPE SMART ARRAY D7S27A SR SMARTCACHE LTU
- Model Number: D7S27A
- Standard Features
- Up to 32 SSD Cache volumes
- Up to 64 total number of HDD volumes and cache volumes
- Maximum logical drive size is 281 TB
- 1 TB maximum SSD SmartCache capacity per controller
- Supported with all ProLiant Gen8 Gen9 and Gen10 supported SSDs
- Warranty: 1 year Warranty
HPE SMART ARRAY SR SMARTCACHE E LTU
- Model Number: D7S27AAE
- Standard Features
- Up to 32 SSD Cache volumes
- Up to 64 total number of HDD volumes and cache volumes
- Maximum logical drive size is 281 TB
- 1 TB maximum SSD SmartCache capacity per controller
- Supported with all ProLiant Gen8 Gen9 and Gen10 supported SSDs
- Warranty: 1 year Warranty

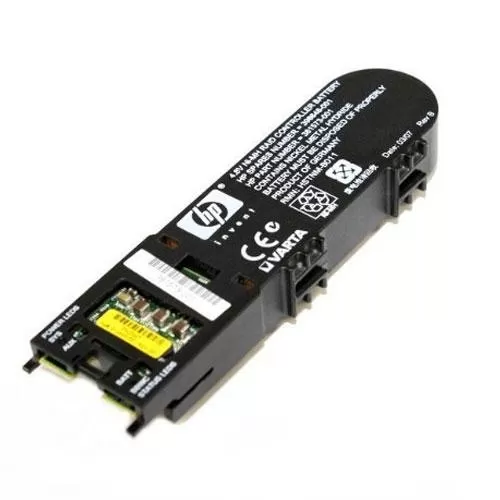

HP 462976 001 SERVER RAID CONTROLLER BATTERY
- Brand:HP
- Part Number: 462976 001, 460499 001
- Usage/Application:Raid Controller Battery
- Product Type:Server Raid Controller Battery
- Packaging:Box
- Manufacturer:HP
- Usage:Industrial,Home
HPE 749796 001 SMART ARRAY CONTROLLER
- SKU :749796-001
- UPC :00887758376928
- MPN :749796-001
- CONDITION :New
HPE 534916 B21 512MB CONTROLLER CACHE MEMORY
- SKU :534916-B21
- UPC :00884420940029
- MPN :534916-B21
- CONDITION :New
HPE 830824 B21 SMART ARRAY CONTROLLER
- SKU :830824 B21
- UPC :00884420940029
- MPN :534916-B21
- CONDITION :New
HPE 830824 B21 SMART ARRAY CONTROLLER
- SKU :830824-B21
- UPC :04514953940192
- MPN :830824-B21
- CONDITION :New
HPE 383280 B21 P SERIES CONTROLLER
- SKU :383280-B21
- UPC :00882780410350
- MPN :383280-B21
- CONDITION :Refurbished
HPE 726825 B21 SMART ARRAY SAS CONTROLLER
- SKU :726825-B21
- UPC :00887758377451
- MPN :726825-B21
- CONDITION : New
HPE 843199 B21 SMART ARRAY 12GBPS SAS CONTROLLER
- SKU :843199-B21
- UPC :00190017011110
- MPN :843199-B21
- CONDITION :New
HPE 766205 B21 4GB PCIE RAID STORAGE CONTROLLER
- SKU :766205-B21
- UPC :00888182876046
- MPN :766205-B21
- CONDITION :New
HPE 804331 B21 SMART ARRAY GEN10 SAS 12G MODULAR CONTROLLER
- SKU :804331-B21
- UPC :00783555176313
- MPN :804331-B21
- CONDITION :New
HPE 405148 B21 512MB FOR SMART ARRAY P400 CONTROLLER
- SKU :405148-B21
- UPC :00882780410343
- MPN :405148-B21
- CONDITION :New
HPE 726736 B21 SMART ARRAY 2 PORT SAS CONTROLLER
- SKU :726736-B21
- UPC :00887758376928
- MPN :726736-B21
- CONDITION :New
HPE 726897 B21 SMART ARRAY RAID CONTROLLER
- SKU :726897-B21
- UPC :00887758379035
- MPN :726897-B21
- CONDITION : New
HPE 804405 B21 SMART ARRAY PCIE CONTROLLER
- SKU :804405-B21
- UPC :00889296143741
- MPN :804405-B21
- CONDITION :New
HPE 836269 001 SMART ARRAY CONTROLLER
- SKU :836269-001
- UPC :00889894092021
- MPN :836269-001
- CONDITION :New
HPE 836270 001 SMART ARRAY CONTROLLER
- SKU :836270-001
- UPC :00889296143741
- MPN :836270-001
- CONDITION :New
HPE 462862 B21 P410 2 PORT ARRAY RAID CONTROLLER
- SKU :462862-B21
- UPC :00883585576883
- MPN :462862-B21
- CONDITION :New
HPE 487204 B21 RAID CONTROLLER
- SKU :487204-B21
- UPC :00777785932689
- MPN :487204-B21
- CONDITION :New
HPE 508226 B21 DUAL PORT SAS STORAGE RAID CONTROLLER
- SKU :508226-B21
- UPC :00884420463603
- MPN :508226-B21
- CONDITION :New
HPE 631671 B21 SMART ARRAY 2 PORTS SAS CONTROLLER
- SKU :631671-B21
- UPC :00885631852903
- MPN :631671-B21
- CONDITION :New
HPE 631922 B21 DYNAMIC SMART ARRAY CONTROLLER
- SKU :631922-B21
- UPC :00885631867129
- MPN :631922-B21
- CONDITION :New
HPE 633538 001 SMART ARRAY 2 PORTS SAS CONTROLLER
- SKU :633538-001
- UPC :00787322300000
- MPN :633538-001
- CONDITION :New
HPE 013027 001 256MB P700M DUAL PORT CONTROLLER
- SKU :013027-001-REF
- UPC :00102645807997
- MPN :013027-001
- CONDITION :Refurbished
HPE 129803 B21 DUAL CHANNEL WIDE ULTRA3 ADAPTER
- SKU :129803-B21
- UPC :00102646039861
- MPN :129803-B21
- CONDITION :Refurbished
HPE 166207 B21 WIDE ULTRA STORAGE RAID CONTROLLER
- SKU :166207-B21
- UPC :00720591292225
- MPN :166207-B21
- CONDITION :New
HPE 238633 B21 128MB RAID CONTROLLER
- SKU :238633-B21
- UPC :04948382212115
- MPN :238633-B21
- CONDITION :New
HPE 435129 B21 E500 PCIE ARRAY RAID CONTROLLER
- SKU :435129-B21
- UPC :00882780748774
- MPN :435129-B21
- CONDITION :Refurbished
HPE 462828 B21 600MBPS MEMORY PCIE 2X8 CONTROLLER
- SKU :462828-B21
- UPC :00883585575312
- MPN :462828-B21
- CONDITION :Refurbished
HPE 462830 B21 P411 DUAL PORT PCIE RAID CONTROLLER
- SKU :462830-B21
- UPC :00883585575329
- MPN :462830-B21
- CONDITION :Refurbished
HPE 462834 B21 256MB RAID STORAGE CONTROLLER
- SKU :462834-B21
- UPC :00883585575343
- MPN :462834-B21
- CONDITION :New
HPE 572532 B21 1GB 2PORT RAID STORAGE CONTROLLER
- SKU :572532-B21
- UPC :00884962119556
- MPN :572532-B21
- CONDITION :New
HPE 578229 B21 P411 RAID CONTROLLER
- SKU :578229-B21
- UP :00695087042939
- MPN :578229-B21
- CONDITION :Refurbished
HP 578230 B21 SMART ARRAY
- SKU: 578230-B21
- UPC: :00884962256107
- MPN :578230-B21
- CONDITION :New
HPE 615418 B21 2GB 2 PORT RAID STORAGE CONTROLLER
- SKU :615418-B21
- UPC :00012300880459
- MPN :615418-B21
- CONDITION :Refurbished
HPE 631667 B21 PCIE RAID STORAGE CONTROLLER
- SKU :631667-B21
- UPC :00885631852873
- MPN :631667-B21
- CONDITION :New
HPE 631670 B21 SMART ARRAY PORTS SAS CONTROLLER
- SKU:631670-B21
- UPC:00885631852897
- MPN:631670-B21
- CONDITION :New
HPE 631681 B21 SMART ARRAY RAID CONTROLLER MEMORY
- SKU :631681-B21
- UPC :00885631852958
- MPN :631681-B21
- CONDITION :New
HPE 726903 B21 SMART ARRAY 4 PORTS CONTROLLER
- SKU :726903-B21
- UPC :00887758379264
- MPN :726903-B21
- CONDITION :New
HPE 749680 B21 P244BR SMART ARRAY STORAGE CONTROLLER
- SKU :749680-B21
- UPC :00888182201954
- MPN :749680-B21
- CONDITION :New
HPE 749797 001 SMART ARRAY P440 4GB SAS CONTROLLER
- SKU :749797-001
- UPC :00887758377444
- MPN :749797-001
- CONDITION :New
HPE 750051 001 SMART ARRAY 4 PORTS CONTROLLER
- SKU :750051-001
- UPC :05712505561119
- MPN :750051-001
- CONDITION :New
HPE 804334 001 SMART ARRAY MODULAR CONTROLLER
- SKU :804334-001
- UPC :00783555176313
- MPN :804334-001
- CONDITION :New
HPE H221 650931 B21 SAS CONTROLLER
- SKU :650931-B21
- UPC :00886111525720
- MPN :650931-B21
- CONDITION :Refurbished
HPE P700M 484823 001 SAS STORAGE CONTROLLER
- SKU :484823-001
- UPC :00102645807065
- MPN :484823-001
- CONDITION :New
HPE P700M 484823 001 DUAL PORT PCIE SAS STORAGE CONTROLLER
- SKU:484823-001-REF
- UPC :00102645807065
- MPN :484823-001
- CONDITION :Refurbished
HPE P700M 507925 B21 RAID STORAGE CONTROLLER
- SKU:507925-B21
- UPC:00884420457343
- MPN:507925-B21
- CONDITION :Refurbished
HPE P700M 507925 B21 PCIE RAID STORAGE CONTROLLER
- SKU :507925-B21-NB
- UPC :00884420457343
- MPN :507925-B21
- CONDITION :New
HPE STOREFABRIC P9D94A SN1100Q 16GB HOST BUS ADAPTER
- Part Number: P9D94A
- UPC: 00190017036816
- Device Type: Host bus adapter
- Form Factor: Plug-in card - low profile
- Interface (Bus) Type: PCI Express 3.0
- Condition :New
HPE H241 726911 B21 12GB SAS EXTERNAL SMART HOST BUS ADAPTER
- Part Number: 726911-B21
- UPC: 00887758379394
- Device Type: Storage Controller - Plug-in Card - Low Profile
- Data Transfer Rate: 12 Gbit/sec
- Interface: SATA 6Gb/sec / SAS 12Gb/sec
- Condition :New
HPE 82Q 489191 001 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 489191-001-NB
- UPC: 00617724237867
- Device Type : Host Bus Adapter - 2 Ports
- Form Factor : Plug-in Card - Low Profile
- Interface (bus) Type : Pci Express X8
- Data Transfer Rate : 8.5 Gbps
- Condition :New

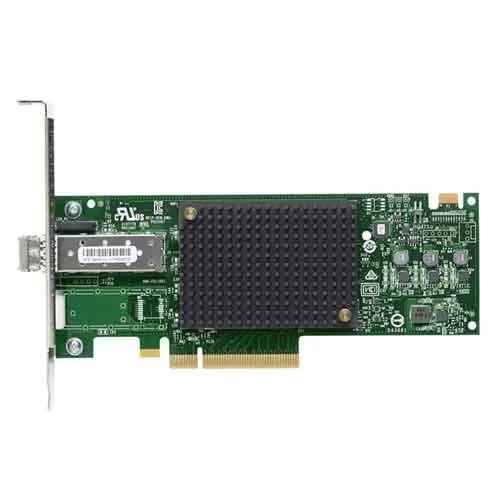

HPE STOREFABRIC SN1200E Q0L13A 16GB HOST BUS ADAPTER
- Part Number: Q0L13A
- UPC: 00190017103747
- Type: Host bus adapter
- Data Transfer Rate: 16 GB/s
- Connector Type: Fibre Channel
- Condition :New
HPE STOREFABRIC SN1200E Q0L14A DUAL PORT HOST BUS ADAPTER
- Part Number: Q0L14A
- UPC: 00190017103754
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Ports: 16gb Fibre Channel X 2
- Interface(bus)type: Fibre Channel
- Condition :New
HPE AJ763B 8GB DUAL PORT FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ763B
- UPC: 00887111179418
- Interface (bus) Type: Pci Express X8
- Data Transfer Rate: 8 Gbps
- Ports/channels: 2 X Lc Fibre Channel
- Condition :New
HPE AJ764A PCIE 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ764A-NB
- UPC: 00883585907199
- Device Type: Host bus adapter
- Form Factor: Plug-in card - low profile
- Interface (Bus) Type: PCI Express x8
- Condition :New
HPE 403621 B21 4GB DUAL PORT EMULEX HOST BUS ADAPTER
- Part Number: 403621-B21
- UPC: 00882780187948
- Device Type: Network Adapter - 2 Ports
- Form Factor: Plug-in Module
- Interface (Bus) Type: PCI Express
- Connectivity Technology: Wired
- Condition :New
HPE H241 750054 001 12GB SAS EXTERNAL SMART HOST BUS ADAPTER
- Part Number: 750054-001
- UPC: 00887758379394
- Device Type: Storage Controller - Plug-in Card - Low Profile
- Host Bus: PCI Express 3.0 x8
- Data Transfer Rate: 12 Gbit/sec
- Interface: SATA 6Gb/sec / SAS 12Gb/sec
- Condition :New
HPE 412911 B21 SC11XE HOST BUS ADAPTER
- Part Number: 412911-B21
- UPC: 00882780414341
- Product Type: Host Bus Adapter
- Data Transfer Rate: 320MB/s
- Condition :New
HPE H220 650933 B21 HOST BUS ADAPTER
- Part Number: 650933-B21
- UPC: 00014445799399
- Device Type: Storage Controller - Plug-in Card - Low Profile
- Host Bus: PCIe 3.0 x8
- Interface: SATA 3Gbps / SAS 6Gbps
- Data Transfer Rate: 6 Gb/sec
- Condition :New
HPE STOREFABRIC SN1000Q 699765 001 16GB HOST BUS ADAPTER
- Part Number: 699765-001
- UPC: 00000886987136
- Ports: 2 x 16Gb Fibre Channel
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Both Brackets (Half Height and Full Height)
- Interface (Bus) Type: PCI Express x4
- Condition :New
HPE 710608 B21 QMH2672 16GB HOST BUS ADAPTER
- Part Number: 710608-B21
- UPC: 00887758020067
- Product Type: Fibre Channel Host Bus Adapter
- Data Transfer Rate: 16 Gbit/s
- Form Factor : Plug-in Module
- Condition :New
HPE STORAGEWORKS AE311A FC1142SR 4GB HOST BUS ADAPTER
- Part Number: AE311A
- UPC: 00882780292444
- Device Type: Host Bus Adapter
- Form Factor: Plug-in card
- Interface (Bus) Type: PCI Express
- Ports: 4Gb Fibre Channel
- Data Transfer Rate: 4.24 Gbps
- Condition :New
HPE AE312A 4GB EXPRESS FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AE312A
- UPC: 00882780292451
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card
- Interface (Bus) Type: PCI Express
- Ports: 4Gb Fibre Channel x 2
- Data Transfer Rate: 4.24 Gbps
- Condition :New

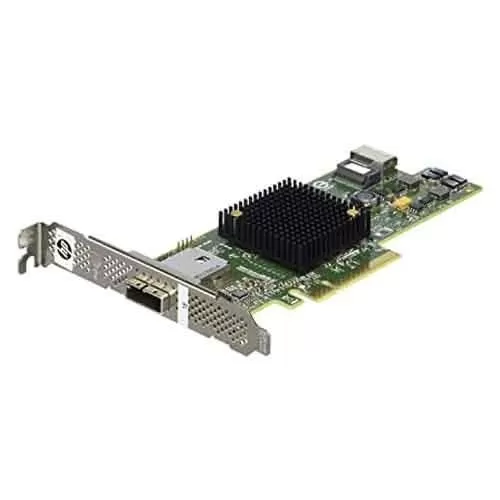

HPE H222 650926 B21 HOST BUS ADAPTER
- Part Number: 650926-B21
- UPC:04948382816030
- Device Type: Host Bus Adapter - Plug-in Module - Low Profile
- Host Bus: PCIe 3.0 x8
- Interface: SATA 6Gb/s / SAS 6Gb/s
- Data Transfer Rate: 600 MBps
- Condition :New
HPE SC44GE 416096 B21 HOST BUS ADAPTER
- Part Number: 416096-B21
- UPC: 00883585042371
- Device Type: Host Bus Adapter - Plug-in Card
- Host Bus: PCIe x8
- Interface: SATA 1.5Gb/s / SAS
- Data Transfer Rate: 300 MBps
- Condition :New
HPE STORAGEWORKS FC1142SR 407620 001 HOST BUS ADAPTER
- Part Number: 407620-001
- UPC: 00658759134363
- Device Type: Host Bus Adapter
- Form Factor: Plug-in card
- Interface (Bus) Type: PCI Express
- Ports: 4Gb Fibre Channel
- Condition :New
HPE STOREFABRIC 870001 001 SN1200E 16GB HOST BUS ADAPTER
- Part Number: 870001-001
- UPC: 00190017103747
- Device Type: Host bus adapter
- Form Factor: Plug-in card - low profile
- Interface (Bus) Type: Fibre Channel
- Ports: 16Gb Fibre Channel x 1
- Condition :New

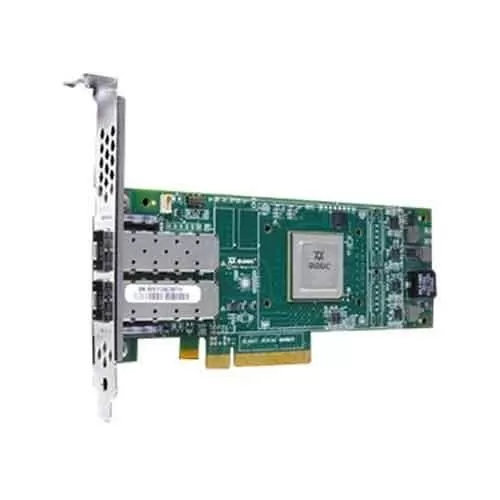

HPE STOREFABRIC SN1000Q QW972A 16GB HOST BUS ADAPTER
- Part Number: QW972A
- UPC: 00887111179654
- Device Type: Host bus adapter
- Form Factor: Plug-in card - low profile
- Interface (Bus) Type: PCI Express 3.0 x4
- Ports: 16Gb Fibre Channel x 2
- Condition :New
HPE 268351 B21 ULTRA320 SCSI ADAPTER
- Part Number: 268351-B21
- UPC: 00613326322598
- Bus Type : Pci-x
- Data Transfer Rate : 320 Mb/sec
- External Connectors : 2
- Maximum Supported Devices : 28
- Condition :New
HPE 374654 B21 64 BIT SINGLE CHANNEL SCSI HOST BUS ADAPTER
- Part Number:374654-B21
- UPC: 00829160725574
- Device Type: Host Bus Adapter
- Channel: Single Channel
- Host Bus: PCI-X/133 MHz
- Interface Type: PCI Express / 133MHz
- Form Factor: Plug in Card
- Condition :New
HPE 403051 001 SINGLE CHANNEL HOST BUS ADAPTER
- Part Number: 403051-001
- UPC: 00102646038482
- Product Type: Storage Controller
- Channel: Single Channel
- Interface Type: PCI Express / 133MHz
- Data Transfer Rate: 320 MB/s
- Controller Interface Type: Ultra-320 SCSI
- Form Factor: Plug in Card
- Condition :New
HPE 416154 001 SINGLE CHANNEL HOST BUS ADAPTER
- Part Number: 416154-001
- UPC: 00703255135021
- Controller Type: Host Bus Adapter
- Bus Type: PCI Express 4x
- Data Transfer Rate: 320 MBPS
- SCSI Interface: Ultra320 SCSI
- Host Bus: PCI Express x4
- Condition :New

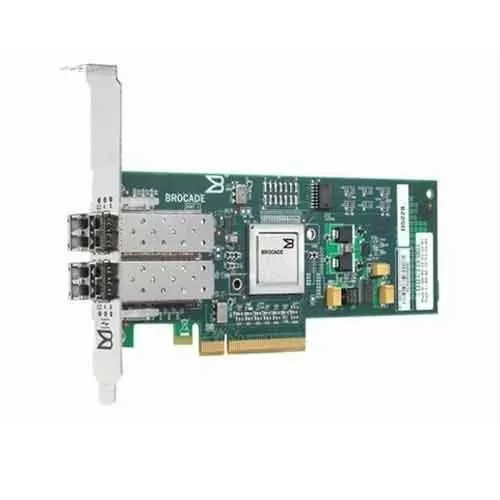

HPE 42B 571519 001 4GB FIBER CHANNEL HOST BUS ADAPTER
- Part Number: 571519-001
- UPC: 00703255136271
- Device Type: Network Adapter
- Port: Dual Ports
- Interface Type: PCIe Fiber Channel
- Connectivity Technology: Wired
- Data Transfer Rate: 4 Gbps
- Condition :New
HPE 456972 B21 BLC EMULEX HOST BUS ADAPTER
- Part Number: 456972-B21
- UPC: 00883585378937
- Device Type: Host bus adapter
- Interface (Bus) Type: PCI Express 2.0 x4
- Ports: 8Gb Fibre Channel x 2
- Data Transfer Rate: 8.5 Gbps
- Condition :Refurbished
HPE 456978 001 BLC EMULEX HOST BUS ADAPTER
- Part Number: 456978-001
- UPC: 00883585378937
- Device Type: Host Bus Adapter
- Interface Type: PCI Express X4
- Interface: 8GB Fiber Channel (Short Wave) - LC Multi-Mode X 2
- Data Transfer Rate: 8.5 GBPS
- Compatible Slots: PCI Express X4
- Condition :New
HPE 488765 B21 SC08E SAS EXTERNAL HOST BUS ADAPTER
- Part Number: 488765-B21
- UPC: 00731303205594
- External Connectors: 2X SAS
- Interface: PCI Express
- Data Transfer Rate: 300 MB/s Per Port
- Condition :Refurbished
HPE 489190 001 8GB SINGLE PORT HOST BUS ADAPTER
- Part Number: 489190-001
- UPC: 00039517485154
- Device Type: Fibre Channel Host Bus Adapter
- Host Type: PCI Express 2.0 GHZ X8
- Data Transfer Rate: 8 Gbps
- Condition :New
HPE 489191 001 8GB HOST BUS ADAPTER
- Part Number: 489191-001
- UPC: 00000886590060
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card
- Interface (Bus) Type: PCI Express x8
- Condition :New
HPE 489192 001 81E 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 489192-001-REF
- UPC: 00703255136431
- Device Type: Host bus adapter
- Form Factor: Plug-in card
- Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8
- Condition :Refurbished
HPE 489193 001 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 489193-001
- UPC: 00709202652795
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card
- Interface (Bus) Type: PCI Express x8
- Condition :New
HPE 614988 B21 SC08E SMART ARRAY SAS HOST BUS ADAPTER
- Part Number: 614988-B21
- UPC: 00885631237663
- Product Type: Host Bus Adapter - Plug-in-Card
- Host Bus: PCIe
- Interface: SAS
- Data Transfer Rate: 600 MBps
- Condition :New
HPE 656911 B21 LPE1205A 8GB HOST BUS ADAPTER
- Part Number: 656911-B21
- UPC: 00886111439324
- Product Type: Fibre Channel Host Bus Adapter
- Form Factor: Plug-in Card
- Data Transfer Rate: 8.50 Gbps Fibre Channel
- Host Interface: Pci Express 2.0 X4
- Condition :New
HPE 659818 B21 BLC EMULEX FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 659818-B21
- UPC: 00886112876555
- Device Type: Host Bus Adapter
- Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8
- Ports: 8Gb Fibre Channel x 2
- Data Transfer Rate: 8.5 Gbps
- Condition :New
HPE 711305 001 QMH2672 16GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 711305-001
- UPC: 04056572574834
- Device Type: Host bus adapter
- Ports: 16Gb Fibre Channel x 2
- Connectivity Technology: Wired
- Data Transfer Rate: 14.025 Gbps
- Condition :New
HPE 81E AJ762A 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ762A-NB
- UPC: 00883585907175
- Interface (bus) Type: Pci Express X8
- Data Transfer Rate: 8gbps Fibre Channel
- Condition :New
HPE 81E AJ762B 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ762B
- UPC: 00887758975428
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8
- Ports: 8Gb Fibre Channel
- Condition :New
HPE 584777 001 82Q 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 584777-001
- UPC: 04056572569939
- Device Type : Host Bus Adapter - 2 Ports
- Form Factor : Plug-in Card - Low Profile
- Interface (bus) Type : Pci Express X8
- Data Transfer Rate : 8.5 Gbps
- Condition :New
HPE AB379B 4GB DUAL PORT HOST BUS ADAPTER
- Part Number: AB379B
- UPC: 00703255136301
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card
- Interface (Bus) Type: PCI-X / 266 MHz
- Ports: 4Gb Fibre Channel x 2
- Condition :Refurbished
HPE AD167A FC2143 4GB HOST BUS ADAPTER
- Part Number: AD167A
- UPC: 00882780188198
- Device Type: Host Bus Adapter
- Ports: 1-Port
- Interface Type: PCI Express 2.0
- Interface: Fiber Channel
- Condition :Refurbished
HPE AH627A DUAL PORT HOST BUS ADAPTER
- Part Number: AH627A
- UPC: 00883585003587
- Device Type: Storage Controller - Plug-in Card
- Host Bus: PCIe x4
- Interface: Ultra320 SCSI
- Data Transfer Rate: 320 MBps
- Condition :Refurbished
HPE AJ763A 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ763A
- UPC: 00883585907182
- Form Factor: Plug-in Card
- Interface (bus) Type: Pci Express X8
- Data Transfer Rate: 8 Gbps
- Condition :New
HPE AJ764 63002 82Q 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ764-63002
- UPC: 00703255136684
- Device Type : Host Bus Adapter - 2 Ports
- Form Factor : Plug-in Card - Low Profile
- Interface (bus) Type : Pci Express X8
- Data Transfer Rate : 8.5 Gbps
- Condition :New
HPE AJ764B 82Q 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AJ764B
- UPC: 00703255136707
- Device Type : Host Bus Adapter - 2 Ports
- Form Factor : Plug-in Card - Low Profile
- Interface (bus) Type : Pci Express X8
- Condition :New
HPE STORAGEWORKS AK344A 8GB HOST BUS ADAPTER
- Part Number: AK344A
- UPC: 00883585616909
- Interface (bus) Type: Pci Express 2.0 X8
- Form Factor: Low Profile Pci-express Card
- Data Link Protocol: 8gb Fibre Channel
- Data Transfer Rate: 8gbps
- Condition :New
HPE AP768A 4GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AP768A
- UPC: 00884962013441
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express
- Ports: 4Gb Fibre Channel x 2
- Condition :New
HPE AP770A 82B 8GB 2 PORT FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AP770A
- UPC: 00884962013465
- Device Type: Host bus adapter
- Form Factor: Plug-in card
- Interface (Bus) Type: PCI Express x8
- Ports: 8Gb Fibre Channel x 2
- Condition :New
HPE FC1143 AB429A 4GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: AB429A
- UPC: 00882780188211
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card
- Interface (Bus) Type: PCI-X
- Ports: 4Gb Fibre Channel
- Condition :New
HPE FC2242SR A8003A 4GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: A8003A
- UPC: 00887111179388
- Device Type: Host bus adapter
- Form Factor: Plug-in card
- Interface (Bus) Type: PCI Express x4
- Ports: 4Gb Fibre Channel x 2
- Condition :New
HPE H240AR 726757 B21 SMART HOST BUS ADAPTER
- Part Number: 726757-B21
- UPC: 00887758376959
- Product Type: SAS Controller
- Form Factor: Plug-in Module
- Controller Type: 12Gb/s SAS
- Condition :New
HPE LPE12002 8GB 2 PORT FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: LPE12002-HP
- UPC: 00883585907182
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8
- Ports: 8Gb Fibre Channel x 2
- Condition :New
HPE QLOGIC 451871 B21 QMH2562 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 451871-B21-REF
- UPC: 00658759132499
- Device Type: Host Bus Adapter
- Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8
- PCI Specification Revision: PCIe 2.0
- Ports: 8Gb Fibre Channel x 2
- Condition :Refurbished
HPE QMH2572 651281 B21 8GB FIBRE CHANNEL HOST BUS ADAPTER
- Part Number: 651281-B21
- UPC: 00886111535712
- Device Type : Host Bus Adapter - 2 Ports
- Interface (bus) Type : Pci Express 2.0 X4
- Pci Specification Revision : Pcie 2.0
- Data Transfer Rate : 8.5 Gbps
- Condition :New
HPE SC08E 617824 001 6GB SAS HOST BUS ADAPTER
- Part Number: 617824-001
- UPC: 00080479598451
- Device Name: SC08Ge 2-Port SAS Controller
- Port: 2 x SFF-8088 6GBs/SAS Mini-SAS External
- Interface Type: Serial ATA/600 Serial Attached SCSI SAS
- Data Transfer Rate: 600 MBps
- Form Factor: Plug in Card
- Condition :New
HPE SC44GE 416155 001 8 PORT HOST BUS ADAPTER
- Part Number: 416155-001
- UPC: 00788490571865
- Device Type: Host Bus Adapter
- Interface Type: PCI-Express
- Data Transfer Rate: 300 MB/s
- Controller Interface Type: SAS
- Form Factor: Plug in Card
- Condition :New
HPE STOREFABRIC 699764 001 SN1000Q HOST BUS ADAPTER
- Part Number: 699764 001 REF
- UPC: 00887111179647
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0 x4
- Ports: 16Gb Fibre Channel x 1
- Port Speed: 16 Gbps
- Condition :Refurbished
HPE STOREFABRIC 853011 001 SN1100Q 16GB HOST BUS ADAPTER
- Part Number: 853011 001
- UPC: 04514953997806
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0
- Ports: 16Gb Fibre Channel x 2
- Condition :New
HPE STOREFABRIC QW971A SN1000Q 16GB HOST BUS ADAPTER
- Part Number: QW971A-REF
- UPC: 00887111179647
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0 x4
- Ports: 16Gb Fibre Channel x 1
- Port Speed: 16 Gbps
- Condition :Refurbished
HPE STOREFABRIC SN1100E 719211 001 16GB HOST BUS ADAPTER
- Part Number: 719211 001
- UPC: 00721762544891
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0 x8
- Data Transfer Rate: 14.025 Gbps
- Ports: 16Gb Fibre Channel x 1
- Condition :New
HPE STOREFABRIC SN1100E C8R38A 16GB HOST BUS ADAPTER
- Part Number: C8R38A
- UPC: 00889296126775
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0 x8
- Ports: 16Gb Fibre Channel x 1
- Condition :New
HPE STOREFABRIC SN1100Q 853010 001 16GB HOST BUS ADAPTER
- Part Number: 853010 001
- UPC: 00190017036809
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0
- Ports: 16Gb Fibre Channel x 1
- Data Transfer Rate: 14.025 Gbps
- Condition :New
HPE STOREFABRIC SN1100Q P9D93A 16GB HOST BUS ADAPTER
- Part Number: P9D93A
- UPC: 00190017036809
- Device Type : Host Bus Adapter
- Form Factor : Plug-in Card - Low Profile
- Interface (bus) Type : Pci Express 3.0
- Ports : 16gb Fibre Channel X 1
- Data Transfer Rate : 14.025 Gbps
- Condition :New
HPE STOREFABRIC SN1100Q P9D96A 16GB HOST BUS ADAPTER
- Part Number: P9D96A
- UPC: 00039062127271
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card - Low Profile
- Interface (Bus) Type: PCI Express 3.0
- Ports: 16Gb Fibre Channel x 2
- Data Transfer Rate: 14.025 Gbps
- Condition :New
