QNAP TS 251D 2 BAY NAS STORAGE
- CPU: Intel Celeron J4005 dual core 2.0 GHz processor (burst up to 2.7 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 600
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 4GB SO DIMM DDR4 (1 x 4 GB)
- Maximum Memory: 8GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR4
- For dual DIMM configuration you must use a pair of identical DDR4 modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a QM2 PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 1 (Expandable with an optional PCIe adapter)
- 5 Gigabit Ethernet Port: Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Expandable with an optional PCIe adapter
- Jumbo Frame: Yes
- PCIe Slot: 1(Slot 1: PCIe Gen 2 x4)
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 2.0 port: 3
- USB 3.2 Gen 1 port: 2
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe expansion card
- IR Sensor: (Optional QNAP RM IR004 remote control)
- HDMI Output: 1 HDMI 2.0
- Form Factor: Tower
- LED Indicators: Power/Status, LAN USB HDD1 2
- Buttons: Power USB copy Reset
- Dimensions (HxWxD): 168 × 105 × 226 mm
- Weight (Net): 1.48 kg
- Weight (Gross): 2.58 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: External Power Adapter 65W 100 240V
- Power Consumption: HDD Sleep Mode: 8.08 W
- Power Consumption: Operating Mode Typical 15.25 W
- Fan: 1 x 70mm
- Sound Level : 16.7 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 800
QNAP TS 451 4 BAY STORAGE
- CPU: Intel Celeron J1900 quad core 2.0 GHz processor (burst up to 2.42 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics
- Floating Point Unit: Yes
- Hardware accelerated Transcoding: up to 1080P
- System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO-DIMM DDR3L (For dual DIMM configurations, you must use a pair of identical DDR3L modules.)
- Flash Memory: 512MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s (The system is shipped without HDD)
- Drive Compatibility
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 2
- IR Sensor: (RM-IR002 & MCE)
- HDMI Output: 1 (up to 1080p)
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 177 × 180 × 235 mm
- Weight (Net): 3kg
- Weight (Gross): 4.3 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode : 15.78 W
- Power Consumption: Operating Mode, Typical 33.88 W
- Fan: 1 x 120mm, 12VDC
- Sound Level: 16.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 800
QNAP TS 251 2 BAY STORAGE
- CPU: Intel Celeron J1900 quad core 2.0 GHz processor (burst up to 2.42 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics
- Floating Point Unit: Yes
- Hardware-accelerated Transcoding: Yes
- System Memory: 2GB SO DIMM DDR3L (1 x 2GB)
- Maximum Memory: 8GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- Flash Memory: 512MB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility :
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot-swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 2
- IR Sensor: (RM-IR002 & MCE)
- HDMI Output: 1 (up to 1080p)
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-2
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 168.5 × 102 × 225 mm
- Weight (Net):1.28 kg
- Weight (Gross): 2.32 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 60W adapter 100-240V
- Power Consumption: HDD Sleep Mode 10.56 W
- Power Consumption: Operating Mode Typical 18.09 W
- Fan: 1 x 70mm 12VDC
- Sound Level: 15.4 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 800
QNAP TS 431P 4 BAY STORAGE
- CPU: AnnapurnaLabs, an Amazon company Alpine AL 212 2 core 1.7GHz
- CPU Architecture: 32 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1GB DDR3
- Maximum Memory: 1GB DDR3
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 4x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame: Yes
- USB 3.2 Gen 1 port: 3
- Form Factor: Tower
- LED Indicators: Power Status LAN USB HDD1-4
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 161 × 160 × 219 mm
- Weight (Net): 3kg
- Weight (Gross): 4.3kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W Adapter 100-240V
- Power Consumption: HDD Sleep Mode 11.65 W
- Power Consumption: Operating Mode Typical 26.7 W With drives fully populated
- Fan: 1 x 120mm, 12VDC
- Sound Level: 19.5 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 400
QNAP TS 231P 2 BAY STORAGE
- CPU: AnnapurnaLabs an Amazon company Alpine AL 212 2 core 1.7GHz
- CPU Architecture: 32 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1GB DDR3
- Maximum Memory: 1GB DDR3
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Form Factor: Tower
- LED Indicators: Power Status LAN USB HDD1-2
- Buttons Power Reset USB Auto Copy
- Dimensions (HxWxD): 161 × 102 × 219 mm
- Weight (Net): 1.35 kg
- Weight (Gross): 2.39 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 60W/65W Adapter 100-240V
- Power Consumption: HDD Sleep Mode 8.46 W
- Power Consumption: Operating Mode Typical 15.6 W
- With drives fully populated
- Fan: 1 x 7 cm smart fan (12V DC)
- Sound Level: 19.2 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 400
QNAP TS 328 3 BAY STORAGE
- CPU: Realtek RTD 1296 ARM Cortex A53 quad core 1.4 GHz processor
- Note: The TS 328 reserves some RAM for use as shared graphics
- CPU Architecture: 64 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- Hardware accelerated Transcoding: up to 1080P
- System Memory: 2GB DDR4 RAM not expandable
- Maximum Memory: 2GB DDR4 RAM not expandable
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 3 x 3.5 inch SATA 6Gb/s 3Gb/s
- bundled one 2.5 tray base for installing 2.5 HDD/SSD; additional purchase can be made from QNAP shop
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
- Hot swappable: Yes
- Gigabit Ethernet Port (RJ45): 2
- Note: You can set the MTU of LAN 1 up to 1500 while the MTU of LAN 2 can be set up to 9000
- Jumbo Frame: Yes
- USB 2.0 port: 1
- USB 3.2 Gen 1 port: 2
- Audio Output: 1 x built-in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~3
- Buttons: Power Reset USB Copy
- Dimensions (HxWxD): 142 × 150 × 260.1 mm
- Weight (Net): 1.64 kg
- Weight (Gross): 2.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 65 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 7.24 W
- Power Consumption: Operating Mode Typical 18.35W With drives fully populated
- Fan: 1 x 90mm 12VDC
- Sound Level: 16.5 db(A)
- Other Interfaces: Kensington security slot
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS): 128
QNAP TS 228A 2 BAY STORAGE
- CPU: Realtek RTD1295 quad core 1.4GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1GB DDR4 not expandable
- Maximum Memory: 1GB DDR4 not expandable
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- Gigabit Ethernet Port (RJ45): 1
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 1
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~2
- Buttons: Power Reset USB Copy
- Dimensions (HxWxD): 187.7 × 90 × 125 mm
- Weight (Net): 0.69 kg
- Weight (Gross): 1.54 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 65 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 5.3W
- Power Consumption: Operating Mode Typical 12.09 W With drives fully populated
- Fan: 1 x 7612 cooling blower for system
- Sound Level: 17.8 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 128
QNAP TS 128A 1 BAY STORAGE
- CPU: Realtek RTD1295 quad core 1.4GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1 GB DDR4, not expandable
- Maximum Memory: 1 GB DDR4 not expandable
- Flash Memory: 4 GB (Dual boot OS protection)
- Drive Bay: 1 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- Gigabit Ethernet Port (RJ45): 1
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 1
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~2
- Buttons: Power Reset USB Copy
- Dimensions (HxWxD): 187.7 × 60 × 125 mm
- Weight (Net): 0.56 kg
- Weight (Gross): 1.21 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 36 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 3.09 W
- Power Consumption: Operating Mode Typical 7.12 W With drives fully populated
- Fan: 1 x 7612 cooling blower for system
- Sound Level: 15.8 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 128
QNAP TVS 1582TU 15 BAY STORAGE
- CPU: Intel Core i7 7700 quad core 3.6 GHz processor Max turbo to 4.2 GHz
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding : Yes
- System Memory: 32GB UDIMM DDR4 (4 x 8GB)
- Maximum Memory: 64GB (4 x 16 GB)
- Memory Slot: 4 x Long DIMM DDR4
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 9 x 3.5 inch + 6 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: SSD slot 1 2 3 4
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+
- Jumbo Frame: Yes
- Thunderbolt Port: 4 (Thunderbolt 3)
- PCIe Slot: 3
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x8
- Slot 3: PCIe Gen 3 x4
- Three PCle slots are occupied by two Thunderbolt 3 card and a 10GbE adapter
- USB 2.0 port: 4
- USB 3.2 Gen1 port: 4
- HDMI Output: 1 HDMI 1.4b
- Form Factor: 2U Rackmount
- LED Indicators: HDD, Status 10 GbE LAN storage expansion port status
- Buttons: Power Reset
- Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
- Weight (Net): 14.18 kg
- Weight (Gross): 21.41 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Redundant/ Hot Swap ATX Power Supply
- Input: 50-60 Hz
- 100-127V~/ 5,5A
- 200-240V/ 3A
- Output: 450W
- Power Consumption: HDD Sleep Mode 10.833W
- Power Consumption: Operating Mode Typical 242.77W
- Fan: 4 x 60mm smart cooling fan
- Sound Level: 53.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TVS 1282 12 BAY STORAGE
- CPU: Intel Core i3 7100 dual core 3.9 GHz processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 8GB UDIMM DDR4 (2 x 4GB)
- Maximum Memory: 64GB (4 x 16GB)
- Memory Slot: 4 x DDR4 Long DIMM
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 8 x 3.5 inch + 4 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility:
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- M.2 SSD Slot: 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s slots
- The M.2 SSD is not included as standard
- M.2 SSD operations can easily generate excessive heat It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD
- SSD Cache Acceleration Support: SSD slot 1 2 3 4
- Gigabit Ethernet Port (RJ45): 4
- For a list of compatible network adapters please visit the Compatibility List
- For instructions on how to install network adapters please refer to Chapter 6 of the QNAP NAS Hardware Manual
- Jumbo Frame: Yes
- PCIe Slot: 3
- Slot 1: PCIe Gen 3 x16
- Slot 2: PCIe Gen 3 x4
- Slot 3: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 5
- HDMI Output: 3
- Audio Input: 2 x 6.3mm dynamic microphone input jacks
- Audio Output: 2 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status 2.5 SSD M.2 SSD 3.5 HDD
- Buttons Power Reset USB Auto Copy
- Dimensions (HxWxD): 234.6 × 369.9 × 319.8 mm
- Weight (Net): 11.34 kg
- Weight (Gross): 13.65 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Input: 100-240V~ 3-1.5A 60-50Hz; Output 250W
- Power Consumption: HDD Sleep Mode 35.39 W
- Power Consumption: Operating Mode Typical 65.87 W
- Fan System fan: 3 x 80mm
- CPU fan: 1 x 90mm
- Sound Level: 21 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TVS 882 8 BAY STORAGE
- CPU: Intel Core i3 7100 dual core 3.9 GHz processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 8GB UDIMM DDR4 (2 x 4GB)
- Maximum Memory: 64GB (4 x 16GB)
- Memory Slot: 4 x DDR4 Long DIMM
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot-swappable: Yes
- M.2 SSD Slot 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s slots
- The M.2 SSD is not included as standard
- M.2 SSD operations can easily generate excessive heat It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD
- SSD Cache Acceleration Support: SSD slot 1 2
- Gigabit Ethernet Port (RJ45): 4
- For a list of compatible network adapters please visit the Compatibility List
- For instructions on how to install network adapters please refer to Chapter 6 of the QNAP NAS Hardware Manual
- Jumbo Frame: Yes
- PCIe Slot: 2
- Slot 1: PCIe Gen 3 x16
- Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 5
- HDMI Output: 3
- Audio Input: 2 x 6.3mm dynamic microphone input jacks
- Audio Output: 2 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status, 2.5 SSD M.2 SSD 3.5 HDD
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 231.9 × 292.8 × 319.8 mm
- Weight (Net): 8.85 kg
- Weight (Gross): 10.73 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit : TVS-882-i3-8G / TVS-882-i5-16: Input: 100-240V~ 3-1.5A 60-50Hz; Output: 250W
- TVS-882-i5-16G-45W: Input: 100-240V~ 8-4A 60-50Hz; Output: 450W
- Power Consumption: HDD Sleep Mode 32.09 W
- Power Consumption: Operating Mode Typical 58.63W
- Fan System fan: 2 x 80mm
- CPU fan: 1 x 90mm
- Sound Level: 21.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TVS 682 6 BAY STORAGE
- CPU: Intel Core i3 7100 dual core 3.9 GHz processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 8GB UDIMM DDR4 (2 x 4GB)
- Maximum Memory: 64GB (4 x 16GB)
- Memory Slot: 4 x DDR4 Long-DIMM
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 4 x 3.5 inch + 2 x 2.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility:
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: SSD slot 1 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame: Yes
- PCIe Slot: 2
- Slot 1: PCIe Gen 3 x16
- Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 5
- HDMI Output: 3
- Audio Input: 2 x 6.3mm dynamic microphone input jacks
- Audio Output: 2 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status 2.5 SSD M.2 SSD 3.5 HDD
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 231.9 × 224.9 × 319.8 mm
- Weight (Net): 7.7 kg
- Weight (Gross): 9.21 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Input: 100-240V~ 3-1.5A 60-50Hz; Output: 250W
- Power Consumption: HDD Sleep Mode 29.15 W
- Power Consumption: Operating Mode Typical 46.65 W
- System fan: 1 x 80mm
- CPU fan: 1 x 90mm
- Sound Level: 20.1 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS): 1500
QNAP TVS 1272XU RP 12 BAY STORAGE
- CPU: Intel Core i3 8100 4 core 3.6 GHz Processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel UHD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 4GB UDIMM DDR4 (1 x 4GB)
- Maximum Memory: 64GB (4 x 16 GB)
- Memory Slot: 4xLong DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: Yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU)
- Slot 4 is preinstalled with a 10GbE network adapter
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
- HDMI Output: 1 HDMI 2.0 (up to 3840 x 2160 60Hz)
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-12 Status LAN storage expansion port status
- Buttons: Power, Reset
- Dimensions (HxWxD) : 88.3 × 482 × 562 mm
- Weight (Net): 12.25 kg
- Weight (Gross): 15.85 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 300W(x2) 100-240V
- Power Consumption: Operating Mode Typical 105.37W With WD10EFRX drives fully populated
- Fan System fan: 2 x 60mm 12VDC
- Sound Level: 52.7 db(A)
- System Warning : Buzzer
- Max. Number of Concurrent Connections (CIFS): 700

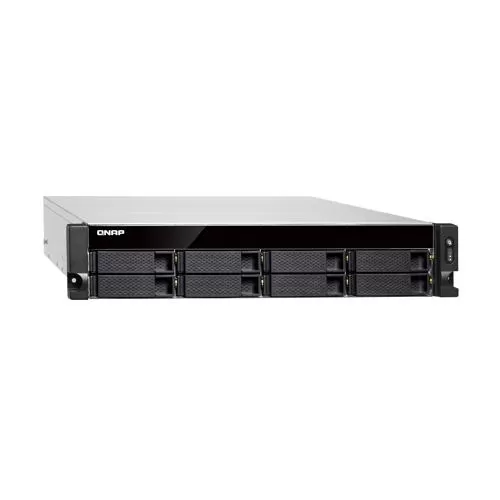

QNAP TVS 872XU RP BAY STORAGE
- CPU: Intel Core i3 8100 4 core 3.6 GHz Processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel UHD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 4GB UDIMM DDR4 (1x4GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: Yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU)
- Slot 4 is preinstalled with a 10GbE network adapter
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
- HDMI Output: 1 HDMI 2.0 (up to 3840 x 2160 60Hz)
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-8 Status LAN storage expansion port status
- Buttons: Power, Reset
- Dimensions (HxWxD): 88.3 × 482 × 562 mm
- Weight (Net): 11.89 kg
- Weight (Gross): 15.49 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 300W(x2) 100-240V
- Power Consumption: Operating Mode Typical 90.02W With WD10EFRX drives fully populated
- Fan System fan: 2 x 60mm 12VDC
- Sound Level: 52.1 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS): 700
QNAP TS 473 4 BAY STORAGE
- CPU: AMD R Series RX 421ND quad core 2.1 GHz processor (Turbo Core to 3.4 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Optional via a PCIe adapter
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding : Optional via a PCIe adapter
- System Memory: 8GB SO DIMM DDR4 (2 x 4 GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x SO DIMM DDR4
- For dual or quad-DIMM configurations you must use a pair of identical DDR4 modules
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame: Yes
- PCIe Slot: 2
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (QNAP RM-IR004)
- HDMI Output: Optional via a PCIe adapter
- Audio Input: 2 x 3.5 mm dynamic microphone jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: Status/Power USB, LAN, Drive 1-4 M.2 SSD 1-2
- Buttons: Power, Reset, USB Auto Copy
- Dimensions (HxWxD): 188.2 × 199.3 × 279.6 mm
- Weight (Net): 4.9 kg
- Weight (Gross): 6.05 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W 100-240V AC 50-60Hz 3.5A
- Power Consumption: HDD Sleep Mode : 33.24W
- Power Consumption: Operating Mode Typical 56.23W With 4 x 2TB HDDs installed
- System fan: 1 x 120mm
- CPU fan: 1 x 60mm
- Sound Level: 21.7 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 1200
QNAP TS 1253BU RP 12 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- System Memory: 4 GB SODIMM DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- When installing two memory modules please ensure that they are the same size and ideally use the same type of RAM for both memory slots
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support: Drive bays 1 to 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame: Yes
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- HDMI Output: 1, HDMI 1.4b
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-12 Status LAN Expansion Power
- Buttons: Power, Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 11.64 kg
- Weight (Gross): 15.27 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: ATX 250W (x2) Input: 100V-240V ~ / 5A-2.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 42.7 W
- Power Consumption: Operating Mode Typical 75.9W With drives fully populated
- Fan: 2 x 70mm, 12VDC
- Sound Level: 33.2 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TS 853BU RP 8 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 4GB DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- When installing two memory modules please ensure that they are the same size and ideally use the same type of RAM for both memory slots
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support Drive bays 1 to 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- HDMI Output: 1 HDMI 1.4b
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-8 Status LAN Expansion Power
- Buttons Power, Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 11.25 kg
- Weight (Gross): 14.88 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: ATX 250W (x2) Input: 100V-240V ~ / 5A-2.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 40.5 W
- Power Consumption: Operating Mode Typical 63.3 W
- With drives fully populated
- Fan: 2 x 70mm 12VDC
- Sound Level: 31.6 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TS 453BU RP 4 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 4GB DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- When installing two memory modules please ensure that they are the same size and ideally use the same type of RAM for both memory slots
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support Drive bays 1 to 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- HDMI Output: 1 HDMI 1.4b
- Form Factor: 1U Rackmount
- LED Indicators: HDD 1-4 Status LAN Expansion Power
- Buttons Power Reset
- Dimensions (HxWxD): 44 × 439 × 499 mm
- Weight (Net): 9.27 kg
- Weight (Gross): 11.3 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: ATX 250W (x2) Input: 100V-240V ~ / 5A-2.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 35.4 W
- Power Consumption: Operating Mode Typical 47.61 W
- With drives fully populated
- Fan: 2 x 40mm 12VDC
- Sound Level: 36.9 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS): 1500
QNAP TS 453BT3 4 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 8 GB SO DIMM DDR3L (2 x 4 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- The following are not hot swappable: M.2 SSDs SSD cache drives SSDs using PCIe expansion slots
- M.2 SSD Slot: 2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card)
- The M.2 SSD is not included as standard
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
- Pre installed QM2 PCIe card
- Jumbo Frame
- Thunderbolt Port: 2 (Thunderbolt 3)
- PCIe Slot: 1 x PCIe Gen 2 (x2) pre installed with a QM2 expansion card (QM2 2S10G1TB) that includes a 10GbE 10GBASE T port and two M.2 SATA SSD slots
- The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD please check the compatibilities before purchase
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter (need to replace the pre-installed QM2 card)
- IR Sensor: (RM-IR004 RM-IR002 & MCE)
- HDMI Output: 2 HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- LCD Display/ Button Monochrome OLED display with capacitive sensing Enter and Select buttons
- Buttons Power USB copy Reset Capacitive touch buttons (select, enter)
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.51 kg
- Weight (Gross): 4.05 kg
- Operating temperature: 0 ~ 40?C (32?F ~ 104?F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 120W adapter 100-240V
- Power Consumption: Operating Mode, Typical 38.101 W
- Fan System: 1 x 120mm
- Sound Level: 16.1 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 800
QNAP TS 653B 6 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 4 GB SO DIMM DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4 GB (Dual boot OS protection)
- Drive Bay: 6 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- USB QuickAccess: 1 x USB 3.2 Gen 1 Type C
- SDXC Card Reader: 1
- IR Sensor: (RM IR004 RM IR002, & MCE)
- HDMI Output: 2 HDMI v1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built-in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-6 SD card USB QuickAccess
- LCD Display/ Button OLED with capacitive touch buttons
- Buttons Power USB copy Reset Capacitive touch buttons (select enter)
- Dimensions (HxWxD): 168 × 235 × 226 mm
- Weight (Net): 3.02 kg
- Weight (Gross): 4.63 kg
- Operating temperature: 0 ~ 40?C (32?F ~ 104?F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External Power Adapter 120W 100-240V
- Power Consumption: HDD Sleep Mode 20.62 W
- Power Consumption: Operating Mode Typical 40.33 W
- Fan: 2 x 90mm
- Sound Level: 19.6 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 800
QNAP TS 453BE 4 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (RM IR004 RM IR002 & MCE)
- HDMI Output: 2, HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons Power USB copy Reset
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.37 kg
- Weight (Gross): 3.71 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode 15 W
- Power Consumption: Operating Mode Typical 30.04 W
- Fan: 1 x 120mm 12VDC
- Sound Level: 18.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 800
QNAP TS 453BE 2G STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (RM IR004 RM IR002 & MCE)
- HDMI Output: 2
- HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons Power USB copy Reset
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.37 kg
- Weight (Gross): 3.71 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode 15 W
- Power Consumption: Operating Mode Typical 30.04 W
- Fan: 1 x 120mm 12VDC
- Sound Level: 18.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 800

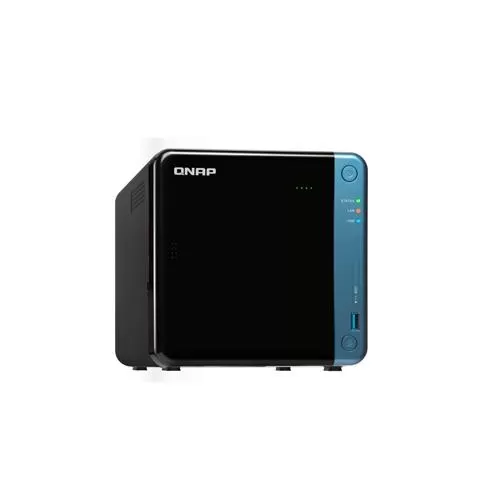

QNAP TS 453BE 4G 4 BAY STORAGE
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 4 GB SO DIMM DDR3L (1 x 4 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list please visit
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (RM IR004 RM IR002 & MCE)
- HDMI Output: 2 HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons Power USB copy Reset
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.37 kg
- Weight (Gross): 3.71 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode 15 W
- Power Consumption: Operating Mode Typical 30.04 W
- Fan: 1 x 120mm 12VDC
- Sound Level: 18.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 800
QNAP TS 932X 9 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR4 (1x 2 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 5x 3.5 inch+ 4 x 2.5 inch SATA 6Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays
- 2.5 inch solid state drives
- Hot swappable
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~5 SSD1-4
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 182.7 × 224.7 × 223.6 mm
- Weight (Net): 3.53 kg
- Weight (Gross): 5.06 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 120 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 21.66 W
- Power Consumption: Operating Mode Typical 42.15 W
- With drives fully populated
- Fan: 1 x 140mm 12VDC
- Sound Level: 18.7 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TS 832X 8 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR4(1 x 2 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 2
- Slot 1: PCIe Gen 2 x1
- Slot 2: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~8
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
- Weight (Net): 6.38 kg
- Weight (Gross): 8.61 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W 100-240V AC 50/60Hz 3.5A
- Power Consumption: HDD Sleep Mode 24.53 W
- Power Consumption: Operating Mode Typical 49.43 W
- With drives fully populated
- Fan System fan: 2 x 120mm 12VDC
- CPU fan: 1 x 60mm
- Sound Level: 20.7 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TS 332X 4G 3 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 64 bit ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 4 GB SODIMM DDR4 (1 x 4GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 3 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
- Hot swappable
- M.2 SSD Slot: 3 x M.2 2280 SATA 6Gb/s slots
- M.2 SSD is sold separately
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously.
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~3 M.2 SSD1~3
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 142 × 150 × 260.1 mm
- Weight (Net): 1.64 kg
- Weight (Gross): 2.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100 - 240V
- Power Consumption: HDD Sleep Mode 18.56 W
- Power Consumption: Operating Mode Typical 26.22 W
- With drives fully populated
- Fan: 1 x 90mm 12VDC
- Sound Level: 17.5 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 700
QNAP TS 332X 2G 3 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 64 bit ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR4 (1 x 2GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 3 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
- Hot swappable: Yes
- M.2 SSD Slot: 3 x M.2 2280 SATA 6Gb/s slots
- M.2 SSD is sold separately
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~3 M.2 SSD1~3
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 142 × 150 × 260.1 mm
- Weight (Net): 1.64 kg
- Weight (Gross): 2.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100 - 240V
- Power Consumption: HDD Sleep Mode 18.56 W
- Power Consumption: Operating Mode Typical 26.22 W
- With drives fully populated
- Fan: 1 x 90mm, 12VDC
- Sound Level: 17.5 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 700
QNAP TS 431XEU 3 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 314 32 bit ARM Cortex A15 quad core 1.7GHz processor
- CPU Architecture: 32 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR3 (1 x 2 GB)
- Maximum Memory: 8 GB (1 x 8 GB)
- Memory Slot: 1 x SO-DIMM DDR3
- Flash Memory: 512MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 4
- Form Factor: 1U Rackmount
- LED Indicators: HDD 1-4, Status, USB, LAN1 3
- Buttons Power, Reset
- Dimensions (HxWxD): 44 × 439 × 291 mm
- Weight (Net): 4.15 kg
- Weight (Gross): 5.78 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Open-frame 100W Input: 100V-240V ~ / 3.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 12.42 W
- Power Consumption: Operating Mode Typical 30.99 W
- With drives fully populated
- Fan System fan: 3 x 40mm 12VDC
- Sound Level: 20.3 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 700
QNAP TS 1232XU RP 12 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x Long DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-12 Status LAN Storage expansion
- Buttons Power Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 11.34 kg
- Weight (Gross): 17.27 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W (x2) PSU 100 - 240V
- Power Consumption: HDD Sleep Mode 42.61 W
- Power Consumption: Operating Mode Typical 77.09 W
- With drives fully populated
- Fan: 2 x 70mm, 12VDC
- Sound Level: 31.7 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700
QNAP TS 832XU 4G RP 8 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x Long DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-8 Status LAN Storage expansion
- Buttons Power Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 10.94 kg
- Weight (Gross): 16.87 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W (x2) PSU 100 - 240V
- Power Consumption: HDD Sleep Mode 38.1 W
- Power Consumption: Operating Mode Typical 60.74 W
- With drives fully populated
- Fan: 2 x 70mm, 12VDC
- Sound Level: 31.1 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700
QNAP TS 432XU RP 4 BAY STORAGE
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x Long-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- Form Factor: 1U Rackmount
- LED Indicators: HDD 1 4 Status LAN Storage expansion
- Buttons Power Reset
- Dimensions (HxWxD): 44 × 439 × 499 mm
- Weight (Net): 8.06 kg
- Weight (Gross): 11.06 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W (x2) PSU 100 - 240V
- Power Consumption: HDD Sleep Mode 35.12 W
- Power Consumption: Operating Mode Typical 48.75 W
- With drives fully populated
- Fan: 2 x 40mm, 12VDC
- Sound Level: 38.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700
QNAP TS 1886XU RP D1622 8G 18 BAY STORAGE
- CPU: Intel Xeon D 1622 quad core 2.60 GHz processor (burst up to 3.2 GHz)
- CPU Architecture: 64 bit x86
- System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB)
- Maximum Memory: 128 GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: Front: 12 x 3.5-inch SATA 6Gb/s 3Gb/s
- Rear: 6 x 2.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Pre installed with a 10GbE PCIe adapter
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x8 or x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x8 or x4
- Slot 4 is preinstalled with a 10GbE network adapter
- Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use
- Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use
- USB 3.2 Gen 1 port
- Form Factor: Rackmount
- LED Indicators: HDD SSD Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
- Weight (Net): 12.73 kg
- Weight (Gross): 18.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 550W(x2) 100-240V
- Power Consumption: Operating Mode Typical 117.92 W
- Fan System fan: 3 x 60mm 12VDC
- Sound Level: 56.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TS 1886XU RP D1602 4G 18 BAY STORAGE
- CPU: Intel Xeon D 1602 dual core 2.50 GHz processor (burst up to 3.2 GHz)
- CPU Architecture: 64 bit x86
- System Memory: 4 GB UDIMM DDR4 ECC (1 x 4GB)
- Maximum Memory: 128 GB (4 x 32 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: Front: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Rear: 6 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Pre installed with a 10GbE PCIe adapter
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x8 or x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x8 or x4
- Slot 4 is preinstalled with a 10GbE network adapter
- Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use and provides the width of PCIe Gen 3 x4 when Slot 1 is in use
- Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use and provides the width of PCIe Gen 3 x4 when Slot 3 is in use
- USB 3.2 Gen 1 port 2
- Form Factor: Rackmount
- LED Indicators: HDD SSD Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
- Weight (Net): 12.73 kg
- Weight (Gross): 18.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 550W(x2) 100-240V
- Power Consumption: Operating Mode Typical 117.92 W
- Fan System: 3 x 60mm, 12VDC
- Sound Level: 56.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TES 1885U D1521 8GR 18 BAY STORAGE
- CPU: Intel Xeon D 1521 quad core 2.4 GHz processor Max turbo to 2.7 GHz
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 8 GB RDIMM DDR4 ECC (1 x 8GB)
- Maximum Memory UDIMM: 64 GB (4 x 16 GB)
- RDIMM: 128GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- 32 GB (above) RAM is required for QES operating system
- You can only use one type of dual in-line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
- Flash Memory: 4GB (DOM for dual OS)
- Drive Bay: Front: 12 x 3.5 inch
- Rear: 6 x 2.5 inch
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x8
- Slot 2: PCIe Gen 2 x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
- Slot 4 provides the width of PCIe Gen 3 x8 when slot 3 is not in use Slot 4 then provides the width of PCIe Gen 3 x4 only when an expansion board is installed in slot 3
- USB 3.2 Gen 1 port: 2
- Form Factor: 2U Rackmount
- LED Indicators: HDD Status 10 GbE LAN storage expansion port status
- Buttons Power Reset
- Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
- Weight (Net): 15.34 kg
- Weight (Gross): 21.25 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Redundant/ Hot Swap ATX Power Supply,Input: 47-63 Hz
- 100-127V~/ 8A
- 200-240V/ 4A
- Output: 450W
- Power Consumption: Operating Mode Typical 229.53 W
- Fan: 4 x 60mm
- Sound Level: 58.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS) QTS: 1500
- QES: 1500
QNAP TES 1885U D1521 8GR 18 BAY STORAGE
- CPU: Intel Xeon D 1521 quad core 2.4 GHz processor Max turbo to 2.7 GHz
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 8 GB RDIMM DDR4 ECC (1 x 8GB)
- Maximum Memory UDIMM: 64 GB (4 x 16 GB)
- RDIMM: 128GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- 32 GB (above) RAM is required for QES operating system
- You can only use one type of dual in-line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
- Flash Memory: 4GB (DOM for dual OS)
- Drive Bay: Front: 12 x 3.5 inch
- Rear: 6 x 2.5 inch
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x8
- Slot 2: PCIe Gen 2 x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
- Slot 4 provides the width of PCIe Gen 3 x8 when slot 3 is not in use Slot 4 then provides the width of PCIe Gen 3 x4 only when an expansion board is installed in slot 3
- USB 3.2 Gen 1 port: 2
- Form Factor: 2U Rackmount
- LED Indicators: HDD Status 10 GbE LAN storage expansion port status
- Buttons Power Reset
- Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
- Weight (Net): 15.34 kg
- Weight (Gross): 21.25 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Redundant/ Hot Swap ATX Power Supply Input: 47-63 Hz
- 100-127V~/ 8A
- 200-240V/ 4A
- Output: 450W
- Power Consumption: Operating Mode Typical 229.53 W
- Fan: 4 x 60mm
- Sound Level: 58.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS) QTS: 1500
- QES: 1500
QNAP TS 1685 D1521 8G 16 BAY STORAGE
- CPU: Intel Xeon D 1521 quad core 2.4 GHz processor Max turbo to 2.7 GHz
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 8GB UDIMM DDR4 (1 x 8GB)
- Maximum Memory UDIMM: 64 GB (4 x 16 GB)
- RDIMM: 128GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- IMPORTANT: You can only use one type of dual in line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 12 x 3.5 inch + 4 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: 6 x M.2 22110/2280/2260/2242 SATA 6Gb/s slot
- The M.2 SSD is not included as standard
- M.2 SSD operations can easily generate excessive heat,It is recommended to install a heatsink (from QNAP or a third party provider) on the M.2 SSD
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GBASE T
- Jumbo Frame
- PCIe Slot: 3
- Slot 1: PCIe Gen 3 x8
- Slot 2: PCIe Gen 2 x4
- Slot 3: PCIe Gen 3 x8
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status 2.5 SSD M.2 SSD 3.5 HDD
- LCD Display/ Button
- Buttons Power Reset USB Auto Copy
- Dimensions (HxWxD): 303.84 × 369.89 × 319.8 mm
- Weight (Net): 13.39 kg
- Weight (Gross): 15.96 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Input: 100-240V~ 3-1.5A 60-50Hz; Output: 250W
- Power Consumption: HDD Sleep Mode 61.36 W
- Power Consumption: Operating Mode Typical 127 W
- Fan System fan: 3 x 92mm 12VDC
- CPU fan: 2 x 90mm
- Sound Level: 22.5 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 1500
QNAP TS 2483XU RP E2136 16G 24 BAY STORAGE
- CPU: Intel Xeon E 2136 6 core 3.3 GHz processor (burst up to 4.5 GHz)
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 24 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5-inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame
- PCIe Slot: 5
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x4 (CPU)
- Slot 3: PCIe Gen 2 x4 (PCH)
- Slot 4: PCIe Gen 3 x8 (CPU)
- Slot 5: PCIe Gen 2 x4 (PCH)
- Slot 5 is preinstalled with a 10GbE network adapter
- USB: 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
- Form Factor: 4U Rackmount
- LED Indicators: HDD 1-24 Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 176.15 × 481.04 × 672.02 mm
- Weight (Net): 20.67 kg
- Weight (Gross): 28.56 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 800W(x2) 100-240V
- Power Consumption: Operating Mode Typical 168.97 W With drives fully populated
- Fan System fan: 4 x 92mm 12VDC
- Sound Level: 28.7 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS): 700
QNAP TS 1683XU RP E2124 16G 16 BAY STORAGE
- CPU: Intel Xeon E 2124 quad core 3.3 GHz processor (burst up to 4.3 GHz)
- CPU Architecture: 64 bit x86
- Floating Point Unit: yes
- Encryption Engine: (AES-NI)
- System Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 16 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5-inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: yes
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU) / Slot 4 is preinstalled with a 10GbE network adapter
- USB: 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
- Form Factor: 3U Rackmount
- LED Indicators: HDD 1-16 Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 130 × 481 × 573.5 mm
- Weight (Net): 13.76 kg
- Weight (Gross): 21.79 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 500W(x2) 100-240V
- Power Consumption: Operating Mode Typical 130.43 W With drives fully populated
- Fan System fan: 4 x 92mm, 12VDC
- Sound Level: 53 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700
QNAP TS 1283XU RP 12 BAY STORAGE
- CPU: Intel Xeon E 2124 quad core 3.3 GHz processor (burst up to 4.3 GHz)
- CPU Architecture: 64 bit x86
- Floating Point Unit: yes
- Encryption Engine: (AES-NI)
- System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5-inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: Yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU)
- Slot 4: is preinstalled with a 10GbE network adapter
- USB 3.2: Gen 2 (10Gbps) Port 2 x Type C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1 12 Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 88.3 × 482 × 562 mm
- Weight (Net): 11.75 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 300W(x2) 100-240V
- Power Consumption: Operating Mode Typical 105.12 W With drives fully populated
- Fan System fan: 2 x 60mm 12VDC
- Sound Level: 40.6 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700
