CISCO USC C4200 RACK SERVER
Networking
Type : Modular expansion base
Form Factor : External
Connectivity Technology : Wired
Status Indicators : Status
Features : 2 fans
Expansion Bays
Expansion Bays : 24 (total) / 24 (free) x hot-swap - 2.5"
Expansion Slots
Expansion Slots : 4 (total) / 4 (free) x expansion slot
Power Device
Type : Internal power supply
Hot-Plug : Hot-plug
Power Redundancy : Optional
Installed Qty : 0
Max Supported Qty : 2
Miscellaneous
Color Category : Gray
Included Accessories :
Rack rails kit, Bezel
Rack rails kit, Bezel
Height (Rack Units) : 2
Dimensions & Weight
Width : 16.9 inch
Depth : 32.6 inch
Height : 3.4 inch
Weight : 95.9 lbs
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty - replacement - 3 years - response time: next business day
CISCO UCS 480 ML M5 RACK SERVER
Form Factor :
4RU rack server
4RU rack server
Processors :
Intel® Xeon® Scalable CPUs (2)
Intel® Xeon® Scalable CPUs (2)
Memory :
24 DDR4 DIMM slots: 16, 32, 64, and 128 GB; up to 2666 MHz
24 DDR4 DIMM slots: 16, 32, 64, and 128 GB; up to 2666 MHz
PCIe slots :
4 PCIe 3.0 slots
4 PCIe 3.0 slots
RAID controllers :
Internal controllers : Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 24 SAS/SATA HDDs and SSDs
Internal storage :
Support for up to 24 hot-swappable 2.5-inch Small-Form-Factor (SFF) drives with up to 6 PCIe NVMe drives
DVD drive option
Embedded Network Interface Cards (NICs) :
Dual 10GBASE-T Intel x550 Ethernet ports
Dual 10GBASE-T Intel x550 Ethernet ports
Power supplies :
Hot-pluggable, redundant 1600W AC
Hot-pluggable, redundant 1600W AC
Other storage :
Dual M.2 SATA SSD drives for installing an operating system or hypervisor
Dual M.2 SATA SSD drives for installing an operating system or hypervisor
Management :
Cisco Intersight™
Cisco IMC
Cisco UCS Manager
Rack options :
Cisco ball-bearing rail kit with optional reversible cable management arm
Cisco ball-bearing rail kit with optional reversible cable management arm
Hardware and software interoperability :
See the Cisco Hardware and Software Interoperability List for a complete listing of supported operating systems and peripheral options
See the Cisco Hardware and Software Interoperability List for a complete listing of supported operating systems and peripheral options

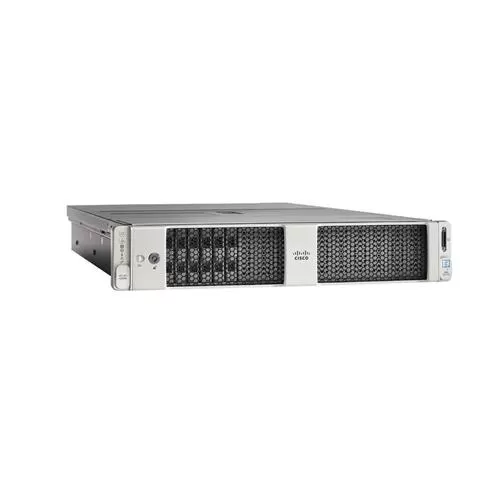

CISCO UCS C240 M5 RACK SERVER
General
Built-in Devices : Backplane
Hot-Swap Bays Qty : 10
Product Form Factor : Rack-mountable - 2U
Server Scalability : 2-way
Type : Server
Dimensions & Weight
Depth : 29.1 in
Height :3.4 in
Width : 17.6 in
Expansion / Connectivity
Bays : 10 (total) / 10 (free) x hot-swap 2.5" SFF
Interfaces : 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x KVM ¦ 1 x management ¦ 2 x USB 3.0 ¦ 1 x serial - RJ-45
Slots : 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 6 PCIe 3.0 ¦ 1 (total) / 1 (free) x PCIe ¦ 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x M.2 Card ¦ 5 PCIe x8 ¦ 1 PCIe x16
Hard Drive
Type : No HDD
Manufacturer Warranty
Service & Support : Limited warranty - replacement - 3 years - response time: next business day
Networking
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet Controller : Intel X550
Optical Storage
Type : No optical drive
Power
Device Type : Power supply - hot-plug
Installed Qty : 0
Max Supported Qty : 2
Power Redundancy : Optional
Processor / Chipset
CPU No CPU
CPU Upgradability Upgradable
Max CPU Qty 2
RAM
Features : Registered, Load-Reduced DIMM (LRDIMM), through-silicon via DIMMs (TSV DIMMs)
Form Factor : DIMM 288-pin
Installed Size : 0 GB
Slots : 24 (total) / 24 (empty)
Technology : DDR4 SDRAM - ECC
Storage Controller
Channel Qty : 8
Controller Interface Type : SATA 3Gb/s
RAID Level : RAID 0, RAID 1, RAID 10
Type : RAID
CISCO UCS C220 M5 SFF RACK SERVER
Chassis Form Factor: Rack-mountable
Color: Silver
Memory
RAM (installed): 0 GB
RAM (max): 3072 GB
RAM Technology: DDR4 SDRAM
Optical Drive Information
CD/DVD Type: No Optical Drive
Processor
# Processors Supported: 2
Processor Type: No CPU
Processor Upgradability: Upgradable
Protocols
Networking Protocol: 10 Gigabit Ethernet
Returns Policy Due to manufacturer restrictions, all sales on this item are final.
Standards
Compliant Standards: EPEAT Bronze
Storage
Hard Drive Type: Hot-swap No HDD
Storage Controller RAID Level: RAID 0 RAID 1 RAID 10
Storage Controller Type: SATA/SAS
Video
Video Card: ASPEED Pilot 4
Video RAM (installed): 16 MB
Warranty - Labor 3 Years
Warranty - Parts 3 Years

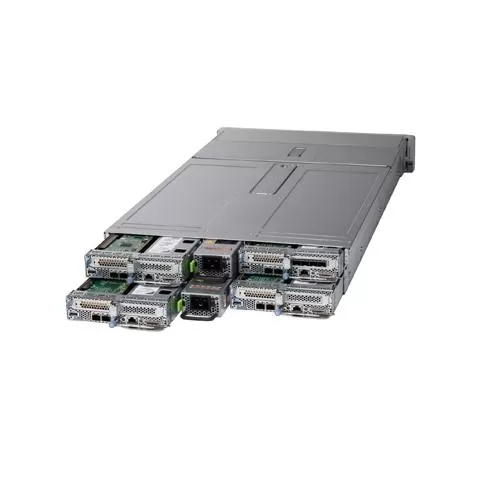

CISCO UCS C125 M5 RACK SERVER
Number of processors: Up to 2
Processors supported: 2 AMD EPYC 7000 processors
Cores per processor: Up to 32
Maximum processor frequency/cache: 2.5GHz / 64 MB
I/O expansion slots: 2 PCIe Gen3, 1 OCP 2.0
Maximum memory/# slots/speed: 2 TB / 16 / 2666MHz
Maximum Persistent Memory: None
Storage controller: Embedded SATA AHCI Controller
Cisco 12G SAS RAID PCIe Controller
Support:Support for the Cisco C125 varies from the base package, which offers support from 8 AM to 5 PM, up to an advanced option of 24 hours a day, 7 days a week
