hp switches

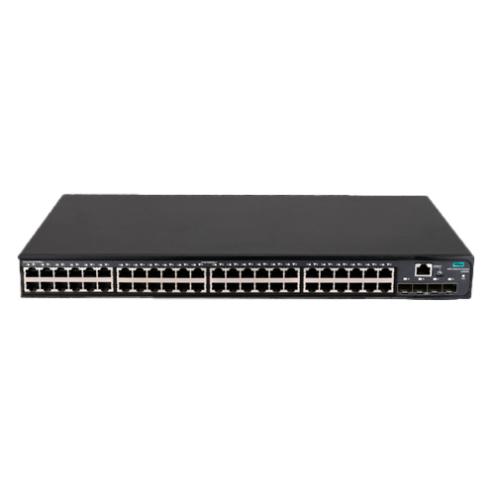

Brand: HPE

Power consumption: 76W at 230 VAC, max, depending on model

Input voltage: 100V-120V/200V-240V

Ports:
48x 10/100/1000BASE-T ports, max, depending on model
4x 1/10G SFP ports
PoE available with select models

Latency:
1 Gbps: 2.28 ?Sec
10 Gbps: 1.46 ?Sec

Routing/switching capacity: 176 Gbps, max, depending on model

Stacking capabilities: 8 members

Throughput: Up to 130.9 Mpps, depending on model

Memory and processor: CPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC

PoE capability: Up to 740W of Class 4 PoE power, depending on model

Weight: 5.10 kg, max, depending on model (11.24 lbs, max, depending on model)

Dimensions: 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)

Warranty: Limited lifetime warranty. See the warranty duration.

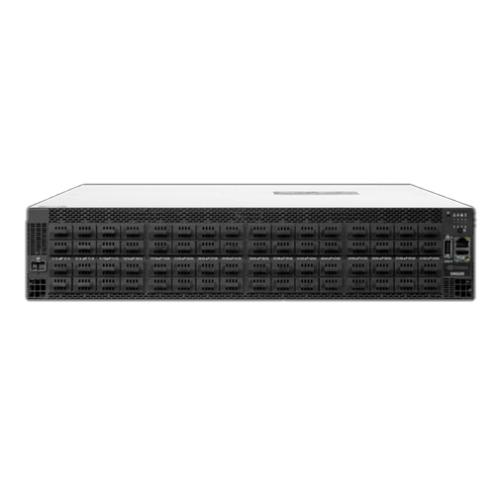

• Spectrum-X Ethernet solution including SN5600 and SN2201 from NVIDIA
• Reverse airflow (connector to power) InfiniBand (IB) Quantum-2 switch
• Warranty: Switches carry a 3-year warranty, on-site, next business day response; cables carry a 1-year warranty, parts exchange.
• Port configurations: 64-ports of 800 Gbps, 128-ports of 400 Gbps
• Protocol supported: Ethernet
• Technology: NVIDIA Spectrum-X
• Connector type: OSFP ports; passive or active copper or optical module with fiber cables
• Server type supported: HPE ProLiant XL / DL and HPE Cray servers using Ethernet technology

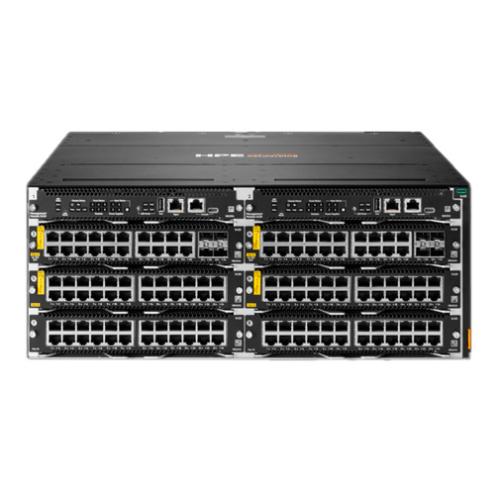

Brand: HPE

Input voltage: 110-127 / 200-240 VAC (power supplies sold separately)

Ports: 10 I/O module slots, maximum, depending on model

Switching capacity: Up to 28 Tbps, depending on model and configuration

Throughput: Up to 20 Bpps, depending on model and configuration

Memory and processor: Management module: Quad Core ARM Cortex A72 @ 1.8GHz, 16GB DDR4 ECC memory, 32GB eMMC Flash memory
Line card: Dual Core ARM Cortex™ A72 @ 1.8GHz, 4GB DDR4 memory
Line card: 8MB shared packet buffer memory(R0X38A, R0X39A, R0X40A, R0X41A, R0X42A, R0X43A), 32MB shared packet buffer memory (R0X44A, R0X45A)

PoE capability: Available IEEE 802.3af, 802.3at, 802.3bt PoE support, depending on model and configuration

Management features:
HPE Aruba Networking AirWave
HPE Aruba Networking Central Network Management
HPE Aruba Networking Switch Multi-Edit Software
HPE Aruba Networking CX Mobile App
Command-line interface
SNMP v2c/v3
RMON

Warranty: Limited lifetime warranty. See the warranty duration.Weight: 53.5 kg, maximum, depending on model (118.2 lbs, maximum, depending on model)Dimensions: 52.88 x 44.26 x 44.85 cm, maximum, depending on model (20.8 x 17.5 x 17.7 in, maximum, depending on model)

Brand: HPE

Input voltage:
90 - 264 VAC, rated
-40 to -75 VDC
Depending on configuration

Ports: (48) 1/10GbE with (6) 40GbE or (6) 100GbE uplink ports, or (32) 40GbE ports, depending on modelLatency: 10 Gbps

Latency: < 1 µsRouting/switching capacity: 2560 Gbps
Maximum, depending on model and configuration

Stacking capabilities: IRF
9 switches

Throughput: 1904 Mpps
Maximum, depending on model and configuration

Memory and processor: 1 GB flash
Packet buffer size: 16 MB
4 GB SDRAM

Management features: IMC - Intelligent Management Center
Command-line interface
Out-of-band management
SNMP manager
Telnet
FTP

Warranty: 1-year Warranty

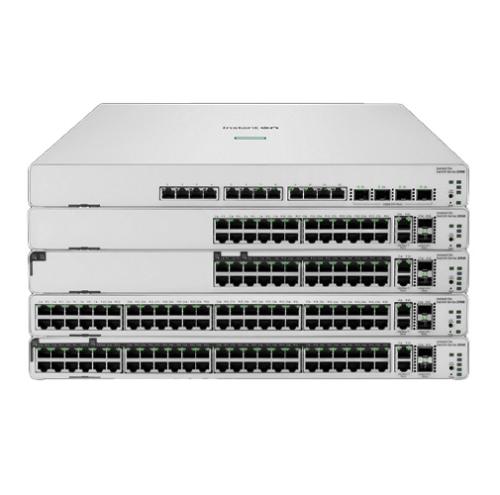

• Brand: HPE
• Power consumption: 790W maximum, depending on model
• Input voltage: 100-127VAC / 200-240VAC
• Ports: Maximum 48 10/100/1000 RJ-45 ports, 2 SFP+ 10 GbE ports, 2 10 GBASE-T ports, depending on model, PoE/PoE+ available on select models
• Switching capacity: 320 Gbps maximum, depending on model
• Stacking capabilities: 4H height
• Throughput: 238 Mpps maximum, depending on model
• Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB
• PoE capability: 600W maximum, depending on model
• Operating temperature: 0-40°C, 0-10,000 ft
• Management features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
• Weight: 4.9 kg, maximum, depending on model (10.8 lb, maximum, depending on model)
• Dimensions: 40.28 x 44.25 x 4.40 cm (15.86 x 17.42 x 1.73 in)
• Warranty: Limited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration.
• Community support is available for the life of the product.

• Brand: HPE
• Power consumption: Idle: Single AC: 14W, Dual AC: 16W; Single DC:18W, Dual DC: 25W
  Full Load: Single AC: 53W, Dual AC: 56W; Single DC: 54W, Dual DC: 61W
• Input voltageAC: 90V to 264V, DC: -36V to -72V
• Latency: GE: < 5 µs, 10GE: < 3 µs, 40GE: <1.2µs
• Routing capabilities: RIP, OSPF, ISIS, BGP, DHCP, VRRP, VRRP PE, ECMP, BFD, IPv6
• Switching capacity: 348 - 396 Gbps, depending on model
• Stacking capabilities: 9 member IRF stack
• Throughput: 259 - 295 Mpps, depending on model
• Memory and processor: Arm 1.6GHz dual core CPU
  4 GB SDRAM; 4GB flash, 3MB packet buffer
• Power supply name: PSU: 1+1, hot swappable, 1 min PSU required
  Fans: 1+1, hot swappable
• Operating temperature: 23°F to 122°F (–5°C to 50°C)
• Management features: HPE IMC; Smart MC, command-line interface; web browser; SNMP manager
• Warranty: Limited lifetime warranty

• High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
• New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.
• Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
• IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
• HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.
• New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to
• address common programming issues, easing concerns about "made in China" products.

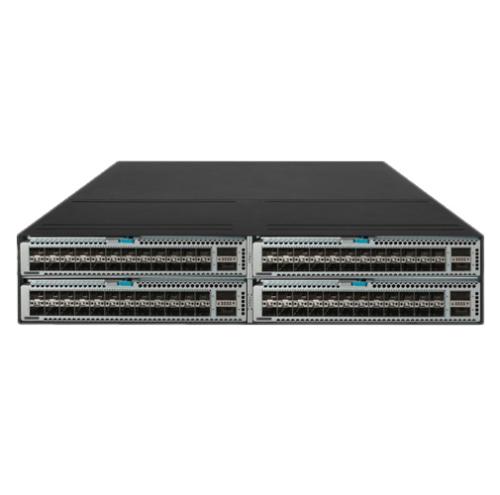

Power consumption: 650W maximum

Heat dissipation:
Maximum heat dissipation:
- JQ074A/S3K87A: 1381 BTU/hr (1458 kJ/hr)
- JQ075A/S3K88A: 1392 BTU/hr (1458 kJ/hr)
- JQ076A/S3K89A: 2348 BTU/hr (2478 kJ/hr)
- JQ077A/S3K90A: 1283 BTU/hr (1458 kJ/hr)Notes: Maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Input voltage: 100 VAC to 240 VAC V rated, 90 VAC to 264 VAC max;
–40 VDC to –60 VDC rated –40 VDC to –72 VDC max

Ports:
I/O ports and slots:
- JQ074A/S3K87A: 48 x 25 Gb SFP28 ports, 8 x 100 Gb QSFP28 ports, 2 x 1 Gb SFP ports. Supports 48 x 10/25GbE and 8 x 100GbE fixed ports, or up to 80 x 10GbE ports when using splitter cables;
- JQ075A/S3K88A: 2 module slots, 2 x 100 Gb QSFP28 ports. Supports up to a maximum of 48 x 10/25GbE and 4 x 100GbE ports, or up to 16 x 100GbE ports from modules;
- JQ077A/S3K90A: 32 x 100 Gb QSFP28 ports, 2 x 1 Gb SFP ports;
- JQ076A/S3K89A: 4 module slots, 2 x 1 Gb SFP ports. Supports up to a maximum of 96 x 10/25GbE and 8 x 100GbE ports, or up to 32 x 100GbE ports

Additional ports and slots:
- 1 x console port;
- 1 x mini USB port;
- 1 x USB port;
- 2 x out-of-band management ports (one fiber port and one copper port)

Latency: < 1 ?s (64-byte packets)

Switching capacity: 6.4 Tbps, maximum, depending on model and configuration

Stacking capabilities: Up to 10 HPE 5945 switches

Throughput: Up to 2024 Mpps

Memory and processor: 1 GB flash Packet buffer size: 16 MB, 4 GB SDRAM or 32 MB 8 GB SDRAM

Power supply name: 2 power supply slots 1 minimum power supply required (ordered separately)

Management features: IMC, CLI, out-of-band management, SNMP Manager, Telnet, FTP

Warranty: 1-year

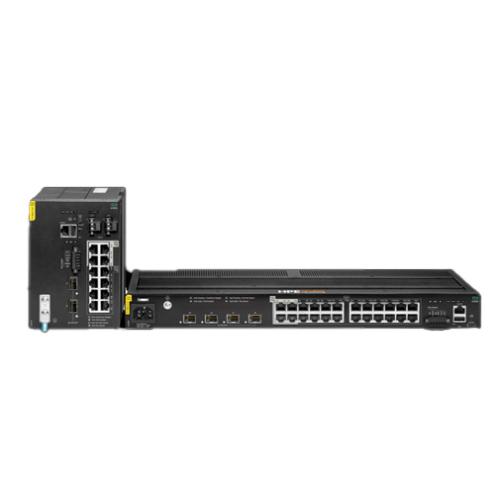

• Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
• Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
• Layer 2 feature set with static routing and no switch software licensing required.
  HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
• Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Stacking capabilities: No stacking capability

Memory and processor:
CPU: Dual Core Arm® Cortex A9 @ 1016 MHz
Memory and flash: 4 GB DDR3 32 GB eMMC

Operating temperature:
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)

Management features: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Warranty: 5-year warranty

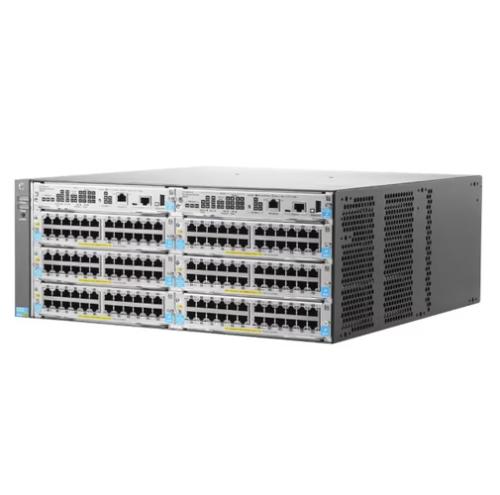

• Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
• HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
• HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
• Scalable line rate 40 GbE for wireless traffic aggregation.
• Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
• Ready for the software defined network with REST APIs and OpenFlow support.

Ports: Up to (12) open module slots, maximum. Supports a maximum of (288) 10/100/1000 ports or (288) SFP ports or (96) SFP+ ports or (96) HPE Smart Rate Multi-Gigabit or (24) 40 GbE ports, or a combination. Pre-configured models, some with PoE/PoE+, can support 10/100/1000 GbE, 10 GbE and 40GbE.Latency: 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps

Latency: < 1.5 µs

Memory and processor:
Depend on the model:
Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal.
Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal.
Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.

PoE capability:
PoE allocations supports multiple methods (automatic, IEEE 802.3af class, LLDP?MED, or user?specified) to allocate PoE power for more efficient energy savings on select models.

Management features:
HPE Aruba Networking Management Software
HPE Aruba Networking Central
HPE Intelligent Management Center Basic Software Platform (IMC)
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
Out-of-band management (serial RS-232C or micro USB)
SNMP manager

Warranty: Limited lifetime warranty.

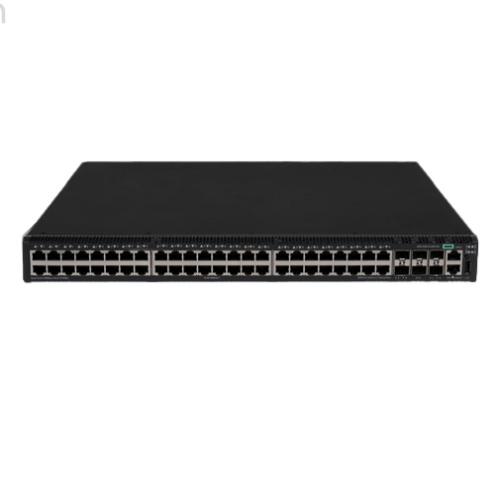

• Gigabit Ethernet access switch with intermediate L3 routing features such as OSPF V2 / OSPF V3 / VRRP / VRRPE / Routed Ports, RIP, 10GbE uplinks, and PoE+ models for voice, video, and wireless.
• Higher port switching capacity, forwarding performance and port line rate granularity, 2X dynamic ARP, 2X IPv6 unicast routing, and introduction of IGMP proxy for improved performance.
• DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
• Intelligent Network Quality Analyzer (iNQA) measures network packet loss performance and provides visibility into real-time application performance and health.
• Industry standard AES 256 MACsec support, higher MAC port binding and link group capacity for improved end-to-end network security. 2-port AES256 MACsec module R9L65A has been introduced.
• Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.

• Power consumption: 95W (dual DC), 96W (dual DC), 928W (dual AC), 1742W (dual AC), depending on the model
• Input voltage: 100VAC–240VAC, 48 to -60VDC Maximum, depending on model and configuration
• Ports: 48 10/100/1000 ports, maximum; or 24 10/100/1000 Mbps SFP and 8 dual-personality 100/1000 ports 4 SFP+ fixed 1000/10000 SFP+ ports, maximum; 2 1/10GBASE-T ports available on select models PoE+ available, depending on model
• Latency: < 5 microseconds (64-byte packets)
• Switching capacity: 288 Gbps and 336 Gbps depending on the model
• Stacking capabilities: IRF 9 switches
• Throughput: 180 Mpps
• Memory and processor: 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
• Power supply name:
• 2 power supply slots
• 1 minimum power supply required
• PoE capability: 720W (PoE power), 1440W (PoE power) depending on the model
• Management features: HPE IMC; Smart MC, command-line interface; web browser; SNMP manager
• Warranty: Limited lifetime warranty. See the warranty duration guide.
• Weight: From 3.8 kg to 5.8 kg depending on the model (From 8.49 lb to 12.79 lb depending on the model)
• Dimensions: 4.37 x 44 x 36 cm and 4.37 x 44 x 46 cm depending on the model (1.72 x 17.32 x 14.17 in and 1.72 x 17.32 x 18.11 in depending on the model)

• High-performance campus core and aggregation switch with 2.5 Tbps switching capacity.
• HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts.
• Monitor and troubleshoot with HPE Aruba Networking Network Analytics Engine (NAE).
• High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX).
• Compact 1U switches with 10 GbE (SFP/SFP+ or 10 GBASE-T) and 40 GbE connectivity.
• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.

• Brand: HPE
• Power consumption: 357W Max Power depending on the model
• Input voltage: 100-127 and 200-240 with either 50 or 60Hz VAC
• Switching capacity: 2.5 Tbps
• Memory and processor: 16 GB RAM, 64 GB SSD, and 8 GB Flash
• Power supply name: Field, replaceable, hot swappable, and up to 2 power supplies. Bundles (JL479A, JL579A, JL581A) include 2 power supplies.
• Management features:
• SNMP
• RJ45 for Serial Console
• USB Type A for file management only RJ45
• Ethernet for OOBM
• Warranty: Limited lifetime warranty.

• High-density, high-performance top-of-rack switch with 48 x 1/10 GbE Base-T ports and 6 x 40 or 100 GbE QSFP28 uplink ports.
• HPE FlexFabric Network Analytics solution supporting application telemetry and real time microburst congestion detection.
• HPE IMC Orchestrator and Analyzer offers enhanced network operations and centralized management with orchestration, automation, and analytical capabilities.
• Virtual Extensible LAN (VXLAN) supports greater scalability of Layer 2 and L3 overlay service and multicast.
• Industry-standard Distributed Resilient Network Interconnection (DRNI) enables device level link aggregation for simpler network topology and ease of operation.
• HPE Intelligent Resilient Fabric (IRF) technology allows greater resilience and scalability with IRF stacking.

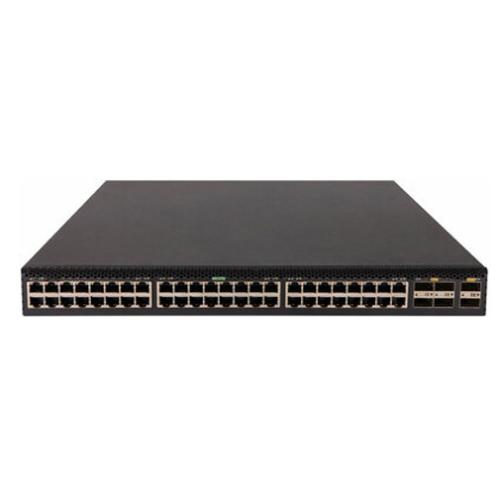

• Brand: HPE
• Power consumption: 320W maximum
• Heat dissipation: 887 BTU/hr
• Input voltage: 100VAC to 240VAC, or –40VDC to –60VDC, depending on installed power supplies
• Ports:
• 48 x 1/10GBASE-T ports
• 6 x QSFP28 100GbE ports
• Latency: < 1 µs (64-byte packets)
• Routing/switching capacity: 2.16 Tbps, maximum
• Stacking capabilities: Up to 10 HPE FlexFabric 5944 switches
• Throughput: Up to 1001.7 Mpps
• Memory and processor: 4 GB flash; 8 GB SDRAM
• Management features: In-band & out-of-band management; CLI, Telnet/SSHv2 / FTP / HPE Intelligent Management Console (IMC)
• Weight: 10 kg (22.05 lb)
• Dimensions: 44 x 440 x 460 mm (1.72 x 17.32 x 18.11 in)
• Warranty: 1-year Warranty

• Brand: HPE

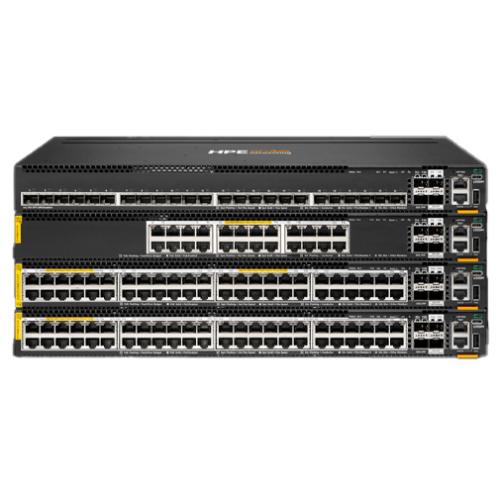

• Features: 48-port 1/10/25 G with 4 MACsec, 6-port of 40/100 G with 2 MACsec. MACsec secured connectivity over untrusted domains.
• High-performance 4.8 Tbps and 2,678 Mpps. 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches. Addition of HPE Smart Rate (1/2.5/5/10 G) ports on the 836048XT4C
• Intelligent monitoring and visibility delivered by the HPE Aruba Networking Network Analytics Engine (NAE)
• High availability with industry-leading VSX redundancy and redundant power supplies and fans.
• Power consumption:From 110W to 230W (Idle Power), from 350W to 725W (Max Power) depends on the model
• Heat dissipation:From 1,109 to 1,450 BTU/hr depends on the model
• Ports: Depends on the model: 12-port of 40 GbE/100 GbE (QSFP+/QSFP28) (optional 4x10G/25G breakout cables supported);
• 24-port of 1 GbE/10 GbE (SFP/SFP+) 2-port of 40 GbE/100 GbE (QSFP+/QSFP28) (optional 1 GBASE-T SFP and 10 GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported);
• 48-port of 100M/1GbE/10GBASE-T 4-port of 40 GbE/100 GbE (QSFP+/QSFP28)
• Switch fabric speed:From 1.2 Tbps to 4.8 Tbps depends on the model
• Routing capabilities:Static (IPv4/IPv6): RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; GRE, MPLS
• Memory and processor:CPU: 1.8 GHz 4-core 64-bit; RAM: 16 GB; Flash/Storage: 32 GB; Packet Buffer: 32 MB
• Power supply name:2 field-replaceable and hot-swappable power supplies depends on the model
• Management features:RJ45 serial and USB-C console; RJ45 Ethernet port; USB-Type A
• Weight:From 7.71 kg to 10.73 kg depends on the model (From 17.00 lb to 23.65 lb depends on the model)
• Dimensions:From 4.40 x 4.42 x 40.6 cm to 4.40 x 4.42 x 55.9 cm (From 1.73 x 17.4 x 16.0 in to 1.73 x 17.4 x 22.0 in)
• Warranty:Limited lifetime warranty. See the warranty duration.

• Brand: HPE

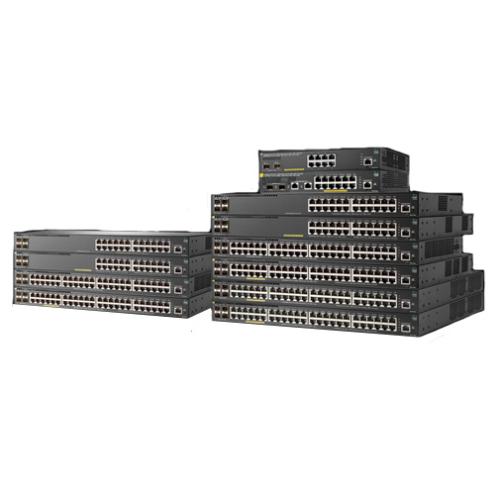

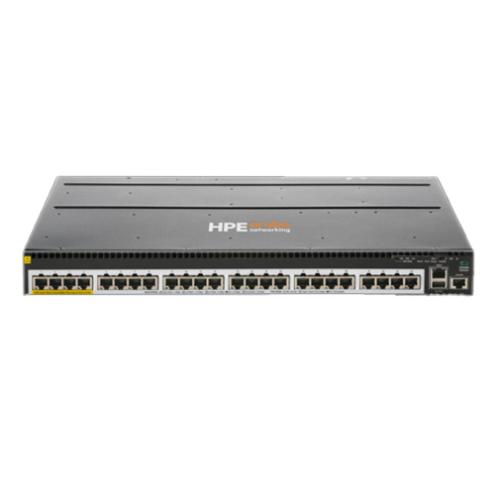

• The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
• Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
• Scale with modular 10 chassis stacking and up to 1440W PoE.
• Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
• Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
• High Power PoE models deliver up to 60W of PoE per port.
• Power consumption:860W (maximum), depending on model and configuration
• Heat dissipation:200 BTU/hr 216 kJ/hr (maximum), depending on model and configuration
• Input voltage:110-240 VAC, depending on power supply
• Ports:(20 or 44) 10/100/1000 ports, (4) Dual Personality 10/100/1000 or 100/1000 Mbps SFP Ports. PoE+ on selected models, (1) uplink module slot, (1) stacking module
• Latency:
• 1000 Mb Latency: < 3.1 µs
• 10 Gbps Latency: < 3.4 µs
• Switching capacity:320 Gbps maximum, depending on model and configuration
• Throughput:112 Mpps maximum, depending on model and configuration
• Memory and processor:
• Dual Core ARM Coretex A9 @ 1016 MHz
• 1 GB DDR3 SDRAM
• Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress
• 4 GB eMMC
• PoE capability:Up to 1440W of PoE Power
• Management features:
• HPE Aruba Networking Management Software (AirWave)
• HPE Aruba Networking Central
• IMC - Intelligent Management Center
• Command-line interface
• Web browser
• Configuration menu
• SNMP manager
• Telnet
• RMON1
• FTP
• Out-of-band management (serial RS-232C or micro USB)
• Warranty:Limited lifetime warranty.

• Brand: HPE
• Improved hardware specification and scale: faster CPU, increased memory, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast and MPLS LSP scale.
• Diverse I/O options and upgraded uplinks: Flexible I/O 36 and 48 port copper, fiber and combo GE ports downlink, and expanded uplink ports 8x25G and 2x100G via the expansion model.
• Enhanced security with all ports MacSec AES-256.
• L3 multicast support.
• High Densify PoE++: up to 48 port 90W PoE++/port.
• Support containerizaton for application hosting
• Power consumption:
• Idle: Single AC: 29 - 54W, Dual AC: 36-66W; Single DC: 34-35W; dual DC: 39 - 41W, selected models
• Full load: Single AC: 90 - 1705W, Dual AC: 96-3201W; Single DC: 90-135W; dual DC: 95-140W, selected models
• Input voltage:AC: 90V to 290V, and DC: -36V to -72V on selected models
• Latency:GE: < 5 µs, 10GE: < 3 µs, 40GE: <1.2µs
• Routing capabilities:MAC table: 128K IPv4/IPv6 routes: 266K/133K ARP table: 80K ACL (Ingress/Egress): 4864/512
• Switching capacity:696 Gbps - 744 Gbps
• Stacking capabilities:9 member IRF
• Throughput:518 Mpps - 554 Mpps
• Memory and processor:CPU: ARM 2GHz Quard core, 4GB SDRAM, 4GB Flash, 8M Packet buffer
• Ports:48x 100/1000Base-X SFP ports; or 32x 10/100/1000Base-T ports and 4x 1G/10GBase-X SFP+ ports; or 48x 10/100/1000Base-T ports; or 32x 10/100/1000Base-T PoE++ ports and 4x 1G/10GBase-X SFP+ ports; or 48x 10/100/1000Base-T PoE++ ports Plus 4x 10G/25GBase-X SFP28 ports, selected models
• Management features:IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC Web GUI
• Warranty:Limited lifetime warranty. See the warranty duration guide.

• Brand: HPE
• High-density, high-performance Top-of-Rack (ToR) switch that bridges the gap between legacy and modern networks with 48 x 10/100/1000Mbps RJ-45 ports, 4 x 1/10 SFP+ ports, and 2 x 40 QFSP+ ports.
• HPE Intelligent Resilient Fabric (IRF) technology provides greater resilience and scalability.
• Cut-through with low-latency and varying wire speed performance.
• Rich feature sets with IPv4 and IPv6 support Layer 2, Layer 3, and QoS /ACL features.
• OpenFlow and NETCONF for automating manual tasks and improving service delivery.
• Dual, redundant hot-pluggable power supplies with reversible airflow help reduce power consumption.
• Power consumption:Up to 175W, depending on the model
• Heat dissipation:UP to 597 BTU/hr, depending on the model
• Input voltage:-48 to -60 VDC, depending on the model
• Ports:(48) 10/100/1000, 1000/10000 SFP+, or 1/10GbE RJ-45 ports
• (4) QSFP+ 40-GbE ports, maximum
• (4) additional 1000/10000 SFP+ ports on selected models
• Latency:<1.2µs refer to QuickSpecs for model details
• Routing/switching capacity:336Gbps
• Switching capacity:336Gbps
• Stacking capabilities:IRF 9 switches
• Throughput:250Mpps
• Maximum, depending on model and configuration
• Memory and processor:512 MB flash
• Packet buffer size: 9 MB
• 2 GB SDRAM
• Management features:IMC - Intelligent Management Center
• Command-line interface
• Out-of-band management
• SNMP manager
• Telnet
• FTP
• Warranty:Limited Lifetime Warranty

• Brand: HPE
• A category of distributed services switch with embedded programmable DPUs overcoming legacy network and security design limitations
• CX 10000 offer 3.2 Tbps of switching capacity supporting 1/10/25 GbE
• CX 10040 offer 8 Tbps of switching capacity supporting 32x100G, 6x400G connectivity
• Unified network and security policy through HPE Aruba Networking Fabric Composer
• Security ecosystem integration with third-party vendors
• Leverages existing AOS-CX Cloud Native Switching
• Distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline
• Power consumption: CX 10000 - 753W (maximum), 550W (typical), 400W (idle), CX 10040 - 1700W (maximum), 1200W (typical)
• Heat dissipation:1,876 BTU/hr
• Input voltage:100-240 VAC
• Ports:CX 10000 - 48 SFP28; 6 QSFP28
• CX 10040 - 32x100 GbE QSFP, 6x400 GbE QSFP-DD, 2x10 GbE SFP+.
• Latency:<1 µs (without redirect)
• <5 µs (with redirect)
• Routing capabilities:Static (IPv4/IPv6): RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; GRE
• Switching capacity:CX 10000 - 3.2 Tbps full-duplex
• CX 10040 - 8 Tbps full-duplex
• Stacking capabilities:Yes
• Throughput:CX 10000 provides 3.2 Tbps for bidirectional switching and 2000 Mpps for forwarding
• CX 10040 provides 8 Tbps for bidirectional switching
• Memory and processor:CX 10000 - CPU: 2.9 GHz, 32 GB 92x16 GB) SODIMM, 64 GB SSD, 32 MB SPI Flash (BIOS), 64 MB SPI Flash (SVOS); Packet Buffer - 32 MB; DPU: 2 x Pensando Elba 3 GHz
• CX 10040 - AMD V3C48 as main system CPU, resides on Ryder; 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
• Packet Buffer - 82 MB; DPU: 4 x Pensando Elba
• Power supply name:CX 10000 - 2x R8R51A (Front-to-Back) or 2x R8R52A (Back-to-Front)
• CX 10040 - 2x S4R52A (Front-to-Back) or 2x S4R53A (Back-to-Front)
• Operating temperature:CX 10000 - 0°C to 40°C (32°F to 104°F)
• CX 10040 - Front-to-Back: 0°C to 40°C (32°F to 104°F); Back-to-Front: 32°F to 104°F (0°C to 40°C)
• Management features:CLI; REST API; SNMP; Fabric Composer; Multi-Edit; RJ-45 console Port; USB micro console port; RJ-45 out-of-band management port
• Warranty:1-year warranty. See the warranty duration.

• Brand: HPE
• High-performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
• Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
• High availability with industry-leading VSX redundancy and redundant power supplies and fans.
• HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts
• Intelligent monitoring and visibility delivered by the HPE Aruba Networking Networks Analytics Engine (NAE)
• Power consumption120W Idle Power / 500W Max Power depending on the model
• Input voltage:100-127V 7.1A for 100-127 VAC: 200-240V 3.4A for 200-240 VAC
• Ports:Includes industry-leading line rate ports with 1/10 GbE (SFP/SFP+) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100 G ports offer advanced flexibility in connectivity and aggregation.
• Switching capacity:High-performance 1.76 Tbps and 1,309 Mpps
• Memory and processor:Quad Core ARM Cortex A72 @ 1.8 GHz
• Power supply name:2 field-replaceable and hot-swappable power supplies
• Operating temperature:Up to 32°F to 113°F (0°C to 45°C) up to 5000 ft depending on the model
• Management features:RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A
• Warranty:Limited lifetime warranty

• Brand: HPE
• High-performance with 2,000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or End of Row (EoR).
• AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High availability with industry-leading VSX redundancy, and redundant power supplies and fans.
• Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN.
• Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity.
• Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, and IPv6.
• CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock.

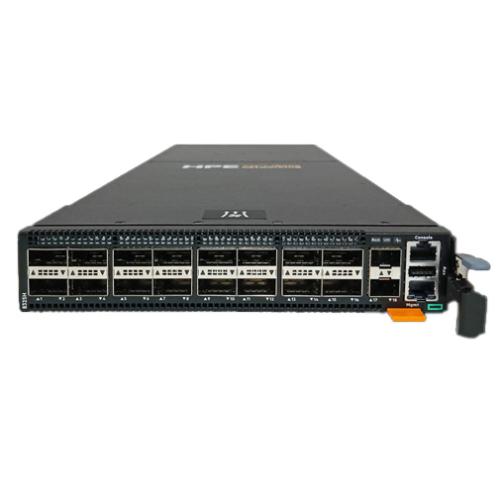

• CX 8325H has two variations:
• 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE
• 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE
• Power consumption:618W maximum, depending on model
• Input voltage:100 to 240 VAC: -36 to -72 VDC
• Ports:(48) 25G SFP28 ports and (8) 100G QSFP28 ports, or (32) 100G QSFP28 ports, maximum depending on model
• Switch fabric speed:6.4 Tbps maximum, depending on model
• Stacking capabilities:These switches serve the needs of the next-generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR).
• Throughput:For CX 8325 and CX 8325P - 2000 Mpps maximum, depending on model
• For CX 8325H 18Y4C - 1000 Mpps
• For CX 8325H 16C - 2000 Mpps
• Memory and processor:For CX 8325 modes:
• CPU: 2.2 GHz
• Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash
• Packet Buffer: 32 MB
• For CX 8325H modes:
• CPU: AMD x86 8 Core
• Memory: 32 GB, 128 GB SSD
• Packet Buffer: 32 MB
• Power supply name:Field-replaceable, hot-swappable, and up to 2 power supplies, except CX 8325H models (Fixed).
• Management features:Industry-standard CLI with a hierarchical structure;
• SNMP v2c/v3;
• sFlow (RFC 3176);
• Remote monitoring (RMON);
• Precision Time Protocol (PTP Class C (G.8275.1/.2)
• Weight:(48) 10 kg (32) 10.87 kg ((48) 22.05 lb (32) 23.96 lb)
• Dimensions:(48) 4.35 x 43.84 x 53.6 cm (32) 4.395 x 44.25 x 47.3 cm ((48) 1.71 x 17.26 x 21.1 in (32) 1.73 x 17.42 x 18.62 in)
• Warranty:- 5-year Warranty (purchased prior to November 1st, 2019) - Limited Lifetime (purchased after November 1st, 2019)

• Brand: HPE

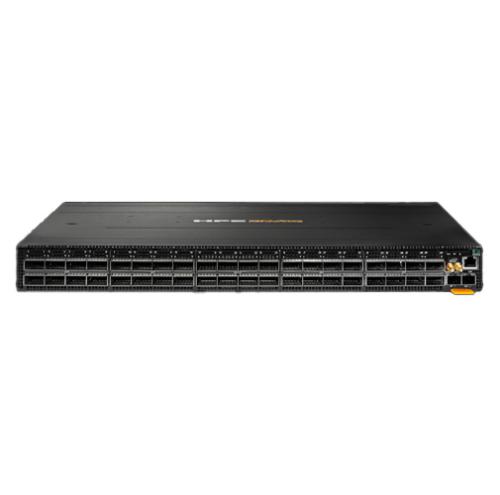

• Features: 25.6Tbps, 1U fixed configuration supporting 32 ports of 100/400GbE. Designed to provide flexible, cost-effective, high-density 10-400GbE for servers, storage, and intra-fabric connectivity.
• Protects enterprises’ investment as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint.
• Support large data center pods connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
• Support large data center pods and increased density by connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
• HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-end visibility of the network fabric underlay and virtualized overlay.
• Introducing new HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front and Front-to-Back Bundles along with new compatible transceivers and power supply options.
• Power consumption:Max: 600W or 615W, Idle: 210W or 221W depending on the model
• Heat dissipation:4,435 BTU/hr (Max)
• Input voltage:100-127 / 220-240 VAC 220-240V required to support 8-32 port production configuration
• Ports:SNMP
• RJ-45 serial
• RJ-45 OOBM Ethernet Port
• Micro USB
• Routing capabilities:Static (IPv4/IPv6); RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; EVPN-VXLAN
• Switching capacity:25.6Tbps
• Throughput:5Bpps
• Memory and processor:32GB RAM, 1.7GHz Processor,128GB m.2 SSD, 4GB mSATA, 128MB SPI Flash, 16GB x2 SODIMM
• Power supply name:Includes 2 FB Power Supplies (R8Z97A) with no additional open Power Supply slots, warning: 200-225VAC use only
• Operating temperature:32°F to 113°F (0°C to 45°C) Max
• Management features:SNMP; RJ-45 console Port; Micro USB console port
• Weight:11.85 kg (26.12 lb)
• Dimensions:4.35 x 43.84 x 59 cm (1.71 x 17.26 x 23.23 in)
• Warranty:Limited lifetime warranty. See the warranty duration.

• Brand: HPE
• Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
• Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
• Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
• Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
• New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products
• Power consumption:Idle power: 108W, maximum, depending on model
• Ports:48 SPF, 40 1/10GBASE-T and 8 10GBASE-T, 24 SFP, or 24 1/10GBASE-T ports, depending on model. All models also have 6 QSFP+ or 2 QSFP28 ports.
• Switching capacity:1440 Gbps, maximum, depending on model
• Stacking capabilities:9 FlexFabric 5710 physical switches can be combined into one virtual switch configuration and are managed using a single IP address
• Throughput:1071 Mpps, maximum, depending on model
• Memory and processor:1 GB flash, 4 GB SDRAM, packet buffer size: 12 MB
• Management features:HPE IMC, CLI, out-of-band management, SNMP Manager, Telnet, FTP
• Warranty:1-year warranty. See the warranty duration.

• Brand: HPE
• High-performance, high-density, and backward-compatible switch with varied 400/200/100G connectivity options.
• OS Comware v9 offers enhanced software features such as Segment Routing MPLS, SR-V6, PTP/SyncE, egress ACL, egress rate limiting, and others for highly distributed environments.
• Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network.
• Supports HPE IMC for a consistent network manageability experience while integrating with HPE IMC Orchestrator and Analyzer for data center fabric orchestration, monitoring, and application telemetry.
• Power consumption:830W
• Heat dissipation:4382.65 BTU/h max.
• Input voltage: DC Input Voltage 180V to 320V;, AC Input Voltage 100V to 240V

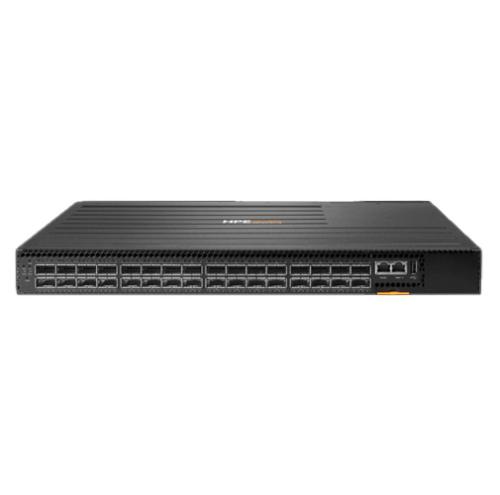

• Ports: 32x400G port OR 24x100G/200G+ 8x400GQDD depending on the model
• Latency:<1.2µs
• Switching capacity: 12.8 Tbps
• Memory and processor:D-1627 @2.9 GHz,16G DDR4, 240G SSD
• Operating temperature:0°C to 40°C (32°F to 104°F)
• Management features:HPE IMC; CLI; out-of-band management; SNMP Manager; Telnet; and FTP. Notes: The customer must install a minimum of one power supply, as the device does not come with one. The customer must install six fan kits, as the device does not come with one.
• Warranty:Limited lifetime warranty. See the warranty duration.

• Brand: HPE

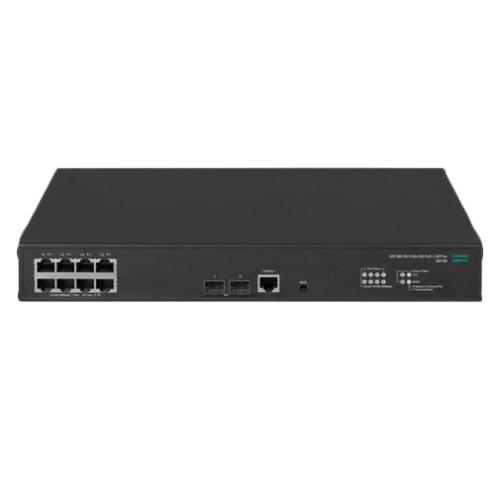

• Low cost, Gigabit Ethernet access switch for small- to medium-sized organizations with Layer 2 routing, RIP, and PoE+ models for voice, video, and wireless.
• Fanless switch with embedded power supplies offers the advantages of low power consumption, noise-free operation, and reduced heat dissipation.
• MAC address support of up to 16K enables greater scalability, more devices can be added into the network and access policies can be defined per their MAC addresses leading to greater network security.
• HPE Intelligent Resilient Framework (IRF) technology that enables plug-and-play device aggregation and link aggregation of up to 9 devices, enhancing network redundancy and resource utilization.
• SNMP-based centralized network management with HPE Intelligent Management Center for consistent network manageability and CLI, Telnet, and web-based network management for easier device management.
• Includes embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC).
• Power consumption:125W max PSU (30W PoE+ per port)
• Ports:8x10/100/1000BASE-T, 2x1000BASE-X SFP
• Latency:< 5 ?s
• Routing/switching capacity: 20 Gbps
• Stacking capabilities:9
• Throughput:15 Mpps
• Memory and processor: 512 MB SDRAM; Packet buffer size: 1.5 MB, 256 MB flash
• Operating temperature: –40°F to 158°F (–40°C to 70°C)
• Management features: IMC; SmartMC, command-line interface; SNMP manager
• Warranty: Limited Lifetime Warranty

• Brand: HPE

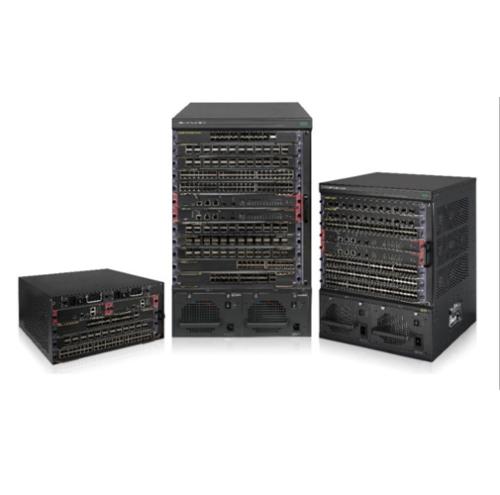

• Heat dissipation:Up to 8163 BTU/hr depending on modules chosen
• Input voltage:100–120/200–240VAC rated depending on power supply chosen
• Ports:Supports a maximum of 10 I/O module slots with 40 100 GbE ports or 240 40GbE ports or 480 10GbE ports or 480 1GbE ports or 480 Fiber Ethernet ports, or a combination depending on configuration selected
• Routing/switching capacity:Up to 9.6 Tbps depending on switch and chassis chosen
• Stacking capabilities:4
• Throughput:Up to 7200 Mpps
• Memory and processor:Flash 2GB, SDRAM 4GB; depending on chosen configuration
• Operating temperature:32°F to 113°F (0°C to 45°C)
• Management features: IMC—Intelligent Management Center; Command-line interface; Web browser; Out-of-band management (serial RS-232c); SNMP manager; Telnet; Terminal interface (serial RS-232c); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB.
• Weight: Min 35 kg and max 95 kg, depending on chosen configuration (Min 77 lb and max 209 lb, depending on chosen configuration)
• Warranty: Limited Lifetime Warranty

• Brand: HPE
• Power consumption: 150W (maximum)
• Heat dissipation: Ranges from 81 BTU/hr to 324 BTU/hr and 81 BTU/hr to 416 BTU/hr depending on power supply configuration
• Input voltage: 90 to 264 VAC and -36 to -72 VDC
• Ports: (48) 10/100/1000 BASE-T ports and (4) SFP+ ports maximum OR (16) 10/100/1000 BASE-T ports; (8) combo SFP or RJ45 ports; (4) SFP+ ports OR (16) BASE-X SFP; (8) combo SFP or RJ45 ports; (4) SFP+ ports; (1) port expansion module slot: PoE+ available, depending on model
• Latency: 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs
• Routing/switching capacity: 336 Gbps maximum, depending on model
• Switching capacity: From 288 Gbps to 336 Gbps depening on the model
• Stacking capabilities: IRF 9 switches
• Throughput: 180 Mpps maximum
• Memory and processor: 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
• Management features: IMC - Intelligent Management Center; Command-line interface; SNMP manager
• Warranty: Limited lifetime warranty.

• Brand: HPE
• Power consumption: From 89 W to 99 W, depending on the model
• Heat dissipation: From 785 BTU/h to 921 BTU/h, depending on the model
• Input voltage: VAC?From 100V to 240V, VDC?From -48V to -60V
• Ports: 48 SPF+, 40 1/10GBASE-T and 8 SFP+, 32 SFP+ or 24 10GBASE-T and 8 SFP+ ports, depending on model. All models also have 6 QSFP28 ports.
• Latency: < 3 µs
• Routing capabilities: RIP, OSPF, BGP, IPV6, MPLS
• Switching capacity: 2240 Gbps to 2560 Gbps, depending on model
• Stacking capabilities: Maximum 9 physical 5720 switches can be combined into one virtual switch configuration and are managed using a single IP address
• Throughput: 1001 Mpps, maximum, depending on model
• Memory and processor: 4GB flash, 4GB SDRAM, packet buffer size: 32M, Quad Core ARMv8-Cortex-A72;
• Power supply name: AC: 2 X JL592A/JL593A, DC: 2 X JL688A
• Management features: IMC, IMC Orchestrator, CLI, out-of-band management, SNMP Manager, Telnet, FTP
• Warranty: 1-year warranty.

• Brand: HPE

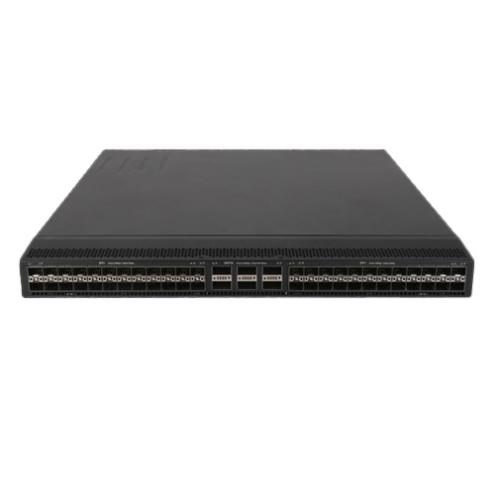

• High-density 10GbE with 100G uplink for spine and leaf deployments, also supporting 40GbE connections on the 100GbE ports.
• L2/L3 VXLAN and EVPN support for virtualized environments.
• OpenFlow support for investment protection and software-defined network (SDN) environments.
• Unify management with HPE IMC.
• Data center convergence and resiliency with IRF.
• Power Consumption:340W
• Heat dissipation:986 BTU/hr (1040.29 kJ/hr)
• Input voltage:100–240 VAC, rated, or -40 to -60 VDC, rated (depending on power supply chosen)
• Ports:48 fixed 1000/10000 SFP+ and 6 QSFP28 100GbE ports
• Latency:< 10 µs (64-byte packets)
• Routing/switching capacity:Up to 720 Mpps
• Throughput:Up to 800 Gbps
• Warranty: 1-year warranty.

• Brand: HPE
• Power consumption:Power output: 2400W
• Input voltage: 100 - 240 VAC, -48 to -60 VDC, Depending on model and configuration
• Ports:16 I/O module slots, maximum; Supports a maximum of 768 40GbE, 768 10GbE, 1/10GbE copper, 1/10GbE fiber, 1GbE fiber, or 10/100/1000 ports, or 576 100GbE ports, or a combination
• Latency:Low latency under 5 microsecond latency (64-byte packets)
• Routing capabilities:BGP-4, BGP+, ECMP, IS-IS, IPV4, IPV6, MPLS, OSPF, Ospfv3, RIP, RIPng, URPF, VPLS
• Switching capacity:184 Tbps; Maximum, depending on model and configuration
• Throughput:92.1 Bpps; Maximum, depending on model and configuration
• Memory and processor:Quad Core MIPS64 at 1.2 GHz, 1 GB flash, 8 GB DDR2 SDRAM
• Power supply name: 16 power supply slots, 1 minimum power supply required (ordered separately)
• Management features:IMC - Intelligent Management Center; Command-line interface; Out-of-band management (serial RS-232C); SNMP manager; Telnet; Terminal interface (serial RS-232C); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB
• Warranty:1-year warranty

• Brand: HPE
• Power consumption: Idle: Single AC: 5-23W, depending on model; Dual AC: 13W
• Full load: Single AC: 35W, Dual AC: 37W
• DC power in selected model only
• Input voltage: AC: 90V to 290V; DC: -36V to -72V, depending on model
• Latency: 1GE: < 5 µs; 10GE: < 3 µs
• Switching capacity: 60 - 176 Gbps, depending on model
• Stacking capabilities: 9 members IRF
• Throughput: 45 - 131 Mpps
• Memory and processor:
• CPU: Arm 1.2 GHz Dual Core
• 2 GB SDRAM, 1 GB Flash, 1.5 MB packet buffer
• Operating temperature: 23°F to 113°F (–5°C to 45°C)
• Management features: IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI
• Ports: 24x 100/1000BASE-X SFP ports, 8x 10/100/1000BASE-T Combo ports; or 24x 10/100/1000BASE-T ports; or 48x 10/100/1000BASE-T ports; or 24x 10/100/1000BASE-T PoE+ ports and 4x 100/1000BASE-X SFP Combo ports; or 48x 10/100/1000BASE-T PoE+ ports; plus 4x 1G/10G BASE-X SFP+ ports
• 8x 10/100/1000BASE-T ports; or 8x 10/100/1000BASE-T PoE+ ports; plus 2x 1000BASE-X SFP ports and 2x 1G/10G BASE-X SFP+ ports, depending on model
• Warranty: Limited lifetime warranty. See the warranty duration guide.

• Brand: HPE
• Power consumption: Max 2385W (including 2010W of PoE)
• Heat dissipation: Ranges from 134 BTU/hour to 8137 BTU/hour, depending on power supply configuration
• Input voltage: AC: 90 VAC to 264 VAC, DC: -36 VDC to 72 VDC
• Ports: Up to 48 x 100M/1G/2.5G/5G/10GBASE-T (PoE8) + 4 x QSFP Plus + 1 expansion slot
• Latency: < 5 us (1000Mb), < 3 us (10Gbps) <1.2 us (40Gbps)
• Routing/switching capacity: From 640 Gbps up to 1440 Gbps depending on the model
• Stacking capabilities:9
• Throughput:Up to 600 Mpps
• Memory and processor: Up to 2 GB SDRAM; packet buffer size: 6 MB, 1G flash
• Power supply name: 2 Power Supply Slots (Min1/Max2), JG544A (720W), JG545A (1110W)
• PoE capability: 90W PoE power per port
• Operating temperature: 23°F to 113°F (–5°C to 45°C)
• Management features: This switch series includes Smart Management Center (SmartMC) at no additional cost and combined with HPE Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
• Weight: Up to 6.05 kg (Up to 13.34 lb)
• Dimensions: 4.37 x 44 x 46 cm (1.72 x 17.32 x 18.11 in)
• Warranty: These switches support Limited Lifetime warranty for details on warranty and software releases available with your product purchase, please refer to hpe.com/networking/support

• Brand: HPE
• Power consumption: Up to 2750W
• Input voltage90 – 140/180 – 264 VAC
• Ports: (8) I/O module slots
• Supports a maximum of 256 10 GbE (SFP/SFP+) ports, or 64 40 GbE (QSFP+) ports, or 48 ports 40/100 GbE (QSFP28), or a combination
• Switching capacity: 19.2 Tbps Maximum, depending on model and configuration
• Stacking capabilities: Switch Stacking
• Throughput: 8.6 Bpps, Maximum, depending on model and configuration
• Power supply name: 4 power supply slots, 2 minimum power supply required for a fully loaded chassis (or with 8 Line Modules) HPE Aruba Networking X382 54VDC 2700W AC Power Supply (JL372A)
• Management features:
• SNMP
• RJ45 for Serial Console
• USB?Type A for file management only
• RJ45 Ethernet for OOBM
• Warranty: Limited lifetime warranty.

• Brand: HPE
• Input voltage: AC Voltage: 100 VAC–240 VAC
• Ports: 48 10/100/1000 ports, maximum, or 16 100/1000 Mbps SFP and 8 dual-personality 100/1000 ports 4 SFP+ fixed 1000/10000 SFP+ ports, maximum 2 1 G BASE-T ports available on select models PoE+ available, depending on model
• Latency: 1000 Mb latency: < 5 µs, 10 Gbps latency: < 3 µs
• Routing capabilities: Table Size: 1024 entries;
• MAC address: 16,384 entries IPv6 Ready Certified
• Switching capacity: 176 Gbps Maximum, depending on model
• Stacking capabilities: IRF 9 switches
• Throughput: 132 Mpps Maximum, depending on model
• Memory and processor: 512 MB SDRAM, 256 MB flash
• Power supply name: At least 1 power supply is required (not included, must be ordered separately)
• PoE capability: 370W PoE+ Maximum, depending on model
• Operating temperature: 23°F to 113°F (–5°C to 45°C)
• Management features: HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager
• Warranty: Limited lifetime warranty

• Brand: HPE
• Power consumption:1600W @ 200-240 VAC, 1000W @ 100-127 VAC
• Input voltage:100?127/200?240 VAC
• Ports:6-line card slots up to 160 Gb/s forwarding per slot
• Latency:2.5 micro sec
• Switching capacity:960 Gbps (480 Gbps in + 480 Gbps out)
• Throughput:714 Mpps
• Memory and processor:16GB DDR4 SODIMM with ECC, 32GB eMMC Flash memory. 64MB shared packet buffer memory shared dynamically among ports
• Power supply name:Supports 4 field replaceable and hot-swappable power supply slots
• PoE capability:Industry-standard IEEE 802.3bt High Power PoE support provides up to 90W of Class 8 PoE power per port to support the latest APs and IoT devices
• Operating temperature:32°F to 113°F (0°C to 45°C), up to 5000 feet
• Derate 1°C every 1000 feet from 5000 feet to 10000 feet
• Management features:HPE Aruba Networking Central Network Management
• HPE Aruba Networking Switch Multi-Edit Software
• Command-line interface
• SNMPv2c/v3
• RMON
• Warranty:Limited Lifetime warranty.

• Brand: HPE
• Input voltage: 100–127/200–240 VAC, rated
• Ports: (8, 12, 24 or 48) 10/100/1000 ports, (4) 1GbE SFP ports or (4) 10GbE SFP+ ports. PoE+ on selected models.
• Switching capacity: 56 - 176 Gbps maximum, depending on model and configuration
• Throughput: 41-112 Mpps maximum, depending on model and configuration
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 MHz
• 1 GB DDR3 SDRAM
• Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
• 4 GB eMMC
• PoE capability: 740W PoE+ maximum, depending on model
• Management features: HPE Aruba Networking Management Software (AirWave)
• Central Network Management
• IMC - Intelligent Management Center
• Command-line interface
• Web browser
• Configuration menu
• SNMP manager
• Telnet
• RMON1
• FTP
• Out-of-band management (serial RS-232C or micro USB)
• Warranty Limited lifetime warranty.

• Brand: HPE
• Model No: HPE Aruba CX 6300 48 Port Gigabit Switch
• Ports: Up to 48 ports of HPE Smart Rate (1G/2.5G/5G/10 GbE)
• Switching capacity: Up to 880 Gbps to 1760 Gbps, depending on model and configuration
• Stacking capabilities: Up to 10 switches per stack
• Throughput: Up to 660 Mpps to 1310 Mpps, depending on model and configuration
• Memory and processor: Quad Core Arm Cortex A72 @ 1.8GHz and 8 GB DDR4, 32 GB eMMC, 8 MB, 16 MB, or 32 MB Shared Packet Buffer Memory, depending on model and configuration
• PoE capability: Max PoE Power: Up to 370W, 720W, 1440W, 2640W, or 2880W, depending on model and installed power supplies
• Management features: HPE Aruba Networking Central Network Management, HPE Aruba Networking Management Software (AirWave), HPE Aruba Networking Switch Multi-Edit Software, Command-line interface, SNMP v2c/v3, RMON
• Weight: 6.02 kg, maximum, depending on model (13.27 lbs, maximum, depending on model)
• Dimensions: 4.4 x 44.2 x 38.5 cm, maximum, depending on model (1.73 x 17.4 x 15.2 in, maximum, depending on model)
• Warranty: Limited lifetime warranty.

• Brand: HPE
• Part No: JL684B
• Product: HPE Aruba Instant On 1930 24G Class4 PoE 4SFP 370W JL684B Switch
• Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+; 4 x 10 Gigabit Ethernet Expansion Slot
• Ethernet Technology: 10 Gigabit Ethernet Gigabit Ethernet
• Input Voltage: 120 V AC; 230 V AC
• Network Technology: 10/100/1000Base-T; 10GBase-X
• Power Source: Power Supply
• Total Number of Network Ports: 24
• Form Factor: Cabinet Mount; Rack-mountable; Table Top; Under Table'; Wall Mountable
• Dimensions: 4.39 x 44.25 x 28.24 cm (1.73 x 17.42 x 11.12 in)
• Weight: 8.23 lb

• Brand: HPE
• Part No: JL686B
• Product: HPE Aruba Instant On 1930 48G Class4 PoE 4SFP 370W JL686B Switch
• Differentiator Ports: 48 Gigabit copper Uplink ports: 4 SFP+ 1/10 GbE ports
• Power consumption: 36.9W maximum, 16.8W idle
• Input voltage: 100 - 127 / 200 - 240 VAC
• Ports: 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T);
• Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only; 4 SFP+ 1/10 GbE ports
• Switching capacity: 176 Gbps
• Throughput: 130.95 Mpps, maximum
• Memory and processor: ARM Cortex-A9 @ 800 MHz; 512 MB SDRAM, 256 MB flash; 1.5 MB packet buffer
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Management features: Instant On Portal, Web browser, SNMP Manager
• Dimensions: 4.39 x 44.25 x 28.24 cm (1.73 x 17.42 x 11.12 in)
• Weight: 3.13 kg(6.91 lb)

• Brand: HPE
• Part No: JL812A
• Product: HPE Networking Instant On Switch 24p Gigabit 2p SFP 1830 Switch
• Differentiator: Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses?looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 2 SFP 1GbE ports.
• Power consumptionMaximum: 100-127V: 19.1W 200-220V: 19W: Idle: 100-127V: 7.6W 200-220V: 7.8W
• Input voltage: 100 - 240 VAC
• Ports: 24 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports
• Switching capacity: 52 Gbps
• Throughput: 38.68 Mpps
• processor: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM
• Memory 256 MB flash; packet buffer: 1.5 MB
• PoE capability: N/A
• Operating temperature: 0-40°C, 0-10,000 ft
• Dimensions: 21.59 x 44.30 x 4.39 cm (8.50 x 17.44 x 1.73 in)
• Weight: 2.49 kg (5.50 lb)
• Management features: HPE Networking Instant On Cloud; Web browser; SNMP Manager

• Brand: HPE
• Part No: JL677A
• Product: HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W JL677A Switch
• Differentiator: 24x ports 10/100/1000BASE-T Ports; 4x 1G/10G SFP ports; Supports PoE Standards IEEE 802.3af, 802.3at; 1x USB-C Console Port; 1x USB Type-A Host port; Fixed power supply Up to 370W of Class 4 PoE Power; Fixed fans
• Power consumptionMax Power (w/o PoE): 32.7W
• Max Power (w/ PoE): 455W
• Input voltage100-127 VAC / 200-240 VAC
• Ports24x ports 10/100/1000BASE-T ports; 4x 1G/10G SFP ports
• Latency1 Gbps: 1.5 ?Sec , 10 Gbps: 1.8 ?Sec
• Switching capacity: 128 Gbps
• Throughput: 95.2 Mpps
• Processor: Dual Core ARM Cortex A9 @ 1016 Mhz
• Memory: 4GB DDR3, maximum, depending on model 16 GB eMMC
• PoE capability: 370W Class 4 PoE/PoE+
• Detailed product description: The HPE Aruba Networking CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
• Weight: 4.2 kg (9.24 lbs)
• Dimensions: 4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in)
• Warranty: Limited lifetime warranty

• Brand: HPE
• Part No: JL681A
• Product: 1930 8G Class4 PoE 2SFP 124W Networking Switch
• Gigabit copper Ports: 8 Ports
• Uplinks 2 SFP 1GbE Ports: 2 SFP 1GbE Ports
• Throughput capacity (Mpps): 14.88 Mpps
• Switching capacity: 20 Gbps
• Reliability MTBF (years): 95
• Maximum power rating: 150.2W
• Dimensions: (W X D X H) 10 x 6.28 x 1.73 mm
• Weight: 7.21 lb (1.16 kg)

• Brand: HPE
• Part No: JL681A
• Product: 1930 8G Class4 PoE 2SFP 124W Networking Switch
• Gigabit copper Ports: 8 Ports
• Uplinks 2 SFP 1GbE Ports: 2 SFP 1GbE Ports
• Throughput capacity (Mpps): 14.88 Mpps
• Switching capacity: 20 Gbps
• Reliability MTBF (years): 95
• Maximum power rating: 150.2W
• Dimensions: (W X D X H) 10 x 6.28 x 1.73 mm
• Weight: 7.21 lb (1.16 kg)

• Brand: HPE
• Part Number: JL680A
• Model No: HPE Aruba 1930 8G 2SFP Networking Switch
• Gigabit Copper Ports: 8 Ports
• Uplinks 2 SFP 1GbE Ports: 2 SFP 1GbE Ports
• Throughput capacity (Mpps): 14.88 Mpps
• Switching capacity: 20 Gbps
• Reliability MTBF (years): 178
• Maximum power rating:11.0W
• Dimensions: (W X D X H) 10 x 6.28 x 1.73
• Weight: 2.55 lbs (0.82 kgs)

• Brand: HPE
• Part Number: JL683A
• Model No: 1930 24G 4SFP+ 195W Switch
• Processor: ARM Cortex-A9  800 MHz
• Memory: 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
• Differentiator Ports: 24 Gigabit copper
• Uplink ports: 4 SFP+ 1/10 GbE ports
• Power Consumption: 280W maximum, 30W idle
• Input Voltage: 100-127 / 200-240 VAC
• Ports: 24XRJ-45 autosensing 10/100/1000 Class 4 PoE ports
• Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
• Switching capacity: 128 Gbps
• Throughput: 95.23 Mpps, maximum
• PoE capability: 195 W Class 4
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Management Features: Instant On Portal, Web browser, SNMP Manager
• Product Dimensions: 4.39 x 44.25 x 26.47 cm (1.73 x 17.42 x 10.42 in)
• Product Weight: 3.49 kg (7.69 lb)
• Warranty: Limited lifetime warranty with 24X7 Support for the first 90 days and chat support for the entire warranty duration.

• Brand: HPE
• Model No: HPE Aruba 2930M 128 Port Unmanaged Switch
• Latency: 1.8 to 2.7 µs
• Forwarding Rate: 35.71 Mpps
• Switching Bandwidth: 52 Gb/s
• Packet Buffer: 2 Mb
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 128x ports 10/100/1000BASE-T ports ; 4x 1G SFP ports
• Operating Conditions: 32 to 72°F / 0 to 40°C at 15 to 95% Humidity
• Storage Conditions: -40 to 158°F / -40 to 70°C at 15 to 90% Humidity
• Cooling System: Passive
• Mean Time Between Failures (MTBF): 1.7 Million Hours
• Indicator Lights: Yes
• Rack Mountable: Yes 1 RU
• Dimensions: 13.38 x 8.86 x 1.73" / 33.99 x 22.5 x 4.39 cm
• Weight: 4.2 lb / 1.9 kg
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba 2530 128 Port Managed Switch
• Product: HPE Aruba 2530 Switch
• Power consumption : Max Power (w/o PoE): 32.7W ; Max Power (w/ PoE): 370W
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 128x ports 10/100/1000BASE-T ports ; 4x 1G SFP ports
• Switch type: Managed
• Switch layer: L3
• Latency: 1 Gbps: 1.5 ?Sec
• Routing capabilities: Static
• Switching capacity: 56 Gbps
• Throughput: 41.6 Mpps
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
• PoE capability: 370W Class 4 PoE/PoE+
• Warranty: 3 Years Warranty

• Brand: HPE

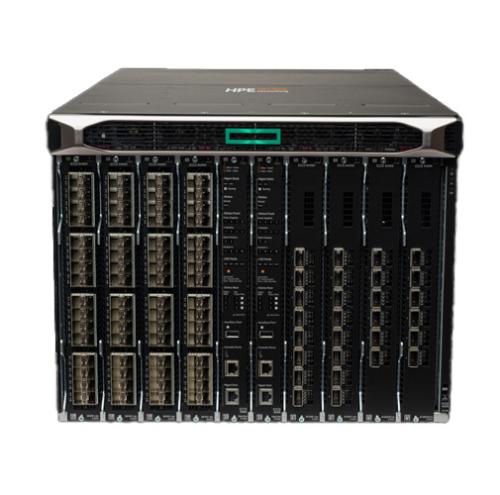

• Model No: HPE Aruba CX 6400 64 Port UnManaged Switch
• Input voltage: 110-127 / 200-240 VAC (power supplies sold separately)
• Ports: 64 x 10/100/1000BASE-T Ethernet ports
• POE Ports: 5 I/O module slots, maximum, depending on model
• Switching capacity: Up to 28 Tbps, depending on model and configuration
• Throughput: Up to 20 Bpps, depending on model and configuration
• Memory and processor: Management module: Quad Core ARM Cortex™ A72 @ 1.8GHz, 16GB DDR4 ECC memory, 32GB eMMC Flash memory
• PoE capability: Available IEEE 802.3af, 802.3at, 802.3bt PoE support, depending on model and configuration
• Management features: HPE Aruba Networking AirWave, HPE Aruba Networking Central Network Management, HPE Aruba Networking Switch Multi-Edit Software, HPE Aruba Networking CX Mobile App, Command-line interface, SNMP v2c/v3, RMON
• Rack Mountable: No
• Dimensions: 17.4 x 15.2 x 1.73" / 44.2 x 38.6 x 4.39 cm
• Weight: 12.78 lb / 5.8 kg
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba CX 6300M 64 Port Gigabit Managed Switch
• Stackable: No
• Switching Bandwidth: 880 Gb/s (Non-Blocking)
• PoE Power Budget: 2880 W
• Ports: 64 x 10/100/1000BASE-T Gigabit Ethernet ports
• Jumbo Frames Support: 9198 Bytes
• MAC Address Table Size: 32K
• Multicast Groups: 8192
• Latency: 1.5 to 2.8 µs
• Forwarding Rate: 660 Mpps
• Switching Bandwidth: 880 Gb/s (Non-Blocking)
• Priority Queues: 8
• Packet Buffer: 8 MB
• Flash Memory: 32 GB
• CPU: Quad-Core: Up to 1.8 GHz
• Memory: 8 GB DDR4
• PoE per Port: 60 W
• PoE Power Budget: 2880 W
• Power Draw: 51.00 W (Idle), 85.00 W (Max)
• Input Power: 100 to 240 VAC, 50 / 60 Hz at 1.2 to 3 A
• Noise Level: 31.0 dB
• Cooling System: Passive
• Indicator Lights: Yes
• Rack Mountable: No
• Dimensions: 17.4 x 15.2 x 1.73" / 44.2 x 38.6 x 4.39 cm
• Weight: 12.78 lb / 5.8 kg
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba JL685A 1930 48 Port Gigabit Non PoE Switch
• 48x 10/100/1000BASE-T Gigabit Ethernet ports
• 4x SFP/SFP+ transceiver ports for fiber connectivity (supports up to 1G or 10G speeds)
• Supports Layer 2 switching features including VLANs, Link Aggregation Control Protocol (LACP), and Spanning Tree Protocol (STP)
• Basic Layer 3 routing capabilities
• Quality of Service (QoS) support for prioritizing network traffic
• Auto-MDIX feature for automatic detection of straight-through or crossover cables
• Port mirroring for network monitoring and troubleshooting
• Energy Efficient Ethernet (EEE) compliance for reduced power consumption
• Compact design for desktop or rack-mount deployment
• Web-based management interface for easy configuration and monitoring
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
• PoE capability: 370W Class 4 PoE/PoE+
• Weight: 4.2 lb / 1.9 kg
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba CX 6000 48 Port Gigabit PoE Switch
• Product: HPE Aruba CX 6000 48-port Gigabit Managed Switch with 4x 1G SFP ports
• MAX Power consumption: (w/o PoE): 45W, (w/ PoE): 480W
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 48x ports 10/100/1000BASE-T ports 4x 1G SFP ports
• Switch type: Managed
• Switch layer: L3
• Latency: 1 Gbps: 1.9 ?Sec
• Routing capabilities: Static
• Switching capacity: 104 Gbps
• Throughput: 77.3 Mpps
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
• PoE capability: 370W Class 4 PoE/PoE+
• Weight: 4.2 lb / 1.9 kg
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba 1430 24 Port Unmanaged Switch
• Latency: 1.8 to 2.7 µs
• Forwarding Rate: 35.71 Mpps
• Switching Bandwidth: 48 Gb/s
• Packet Buffer: 2 Mb
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 24x ports 10/100/1000BASE-T ports ; 4x 1G SFP ports
• Operating Conditions: 32 to 72°F / 0 to 40°C at 15 to 95% Humidity
• Storage Conditions: -40 to 158°F / -40 to 70°C at 15 to 90% Humidity
• Cooling System: Passive
• Mean Time Between Failures (MTBF): 1.7 Million Hours
• Indicator Lights: Yes
• Rack Mountable: Yes 1 RU
• Dimensions: 13.38 x 8.86 x 1.73" / 33.99 x 22.5 x 4.39 cm
• Weight: 4.2 lb / 1.9 kg
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba CX 6000 24 Port PoE Gigabit Managed Switch
• Product: HPE Aruba CX 6000 Switch
• Power consumption : Max Power (w/o PoE): 32.7W ; Max Power (w/ PoE): 370W
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 24x ports 10/100/1000BASE-T ports ; 4x 1G SFP ports
• Switch type: Managed
• Switch layer: L3
• Latency: 1 Gbps: 1.5 Sec
• Routing capabilities: Static
• Switching capacity: 56 Gbps
• Throughput: 41.6 Mpps
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
• PoE capability: 370W Class 4 PoE/PoE+
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba 1430 16 Port PoE Managed Switch
• Power consumptionMaximum: Maximum: 7.9W Idle: 2.3W
• Input voltage: 100-127VAC / 200-240VAC, depending on model
• Ports: 16 RJ-45 10/100/1000 ports
• Switching capacity: 32 Gbps
• Throughput:23.80 Mpps
• Memory and processor: 128Kb EEPROM; Packet buffer size: 2.0 Mb
• Power supply name: External Power Adapter
• Operating temperature: 0°C to 40°C, 32°F to 104°F
• Detailed product description: 16 RJ-45 autosensing 10/100/1000 ports, 1U – Height
• Weight: 3.80 lb
• Weight: 1.72 kg
• Minimum dimensions : ( H x W x D)10.16 x 10.83 x 1.73 in
• Minimum dimensions : ( H x W x D)25.8 x 27.5 x 4.4 cm
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba 1430 16 Port PoE Unmanaged Switch
• Switch type: Unmanaged
• Switch layer: L2
• Power consumption: Maximum: 147W Idle: 5W
• Input voltage: 100-240VAC
• Ports: 16x RJ-45 10/100/1000 Class 4 PoE ports
• Switching capacity: 32 Gbps
• Throughput: 23.80 Mpps
• Memory and processor: 128Kb EEPROM; Packet buffer size: 2.0 Mb
• Power supply name: External Power Adapter
• PoE capability: 124W Class 4 PoE
• Operating temperature: 0°C to 40°C, 32°F to 104°F
• Weight: 2.09 kg (4.60 lb)
• Dimensions: 26.0 x 27.5 x 4.4 cm (10.24 x 10.83 x 1.73 in)
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba 1430 8 Port PoE Unmanaged Switch
• Switch type: Unmanaged
• Switch layer: L2
• Power consumption: Maximum: 90W Idle: 4.1W
• Input voltage: 100-240VAC
• Ports: 8x RJ-45 10/100/1000 Class 4 PoE ports
• Switching capacity: 16 Gbps
• Throughput: 11.90 Mpps
• Memory and processor: 128Kb EEPROM; Packet buffer size: 2.0 Mb
• Power supply name: External Power Adapter
• PoE capability: 64W Class 4 PoE
• Operating temperature: 0°C to 40°C, 32°F to 104°F
• Weight: 0.77 kg (1.70 lb)
• Dimensions: 15.0 x 17.7 x 3.7 cm (5.91 x 6.97 x 1.46 in)
• Warranty: 3 Years Warranty

• Brand: HPE
• Model No: HPE Aruba JL810A Managed Switch
• Gigabit copper ports: 8; Class 3 PD (port 1)
• Uplinks: No
• Dimensions: 157.0(D) x 173.0(W) x 39.1(H) mm
• Weight: 1.70 lb (0.77 kg)
• Throughput capacity (Mpps): 11.90 Mpps
• Switching capacity: 16 Gbps
• Reliability MTBF (years): 188.2
• Maximum power rating: 100-127V: 8.09W
• 200-220V: 8.05W
• Warranty: 3 Years Warranty

• Brand: HPE
• Part Number: JG537A
• UPC: 00887758142509
• CONDITION: Refurbished

• Brand: HPE
• Part Number: JG510A
• UPC: 00658759143600
• CONDITION: New

• Brand: HPE
• Part Number: JG296A
• UPC: 00886111820023
• CONDITION: New

• Brand: HPE
• Part Number: JC772A
• UPC: 00886111975945
• CONDITION: Refurbished

• Brand: HPE
• Part Number: J9801A
• UPC: 00887111275059
• CONDITION: Refurbished

• Brand: HPE
• Part Number: J9147A
• UPC: 00884420767114
• CONDITION: Refurbished

• Brand: HPE
• Part Number: J9145A
• UPC: 00658759139559
• CONDITION: Refurbished

• Brand: HPE
• Part Number: JL357A ABA
• UPC: 00190017094861
• CONDITION: New

• Brand: HPE
• Part Number: JL357A
• UPC: 00190017094861
• CONDITION: Newa

• Brand: HPE
• Part Number: JL357 61001
• UPC: 00190017094861
• CONDITION: New

• Brand: HPE
• Part Number: JL076A
• UPC: 00656541851351
• CONDITION: New

• Part Number: J9993-61001
• UPC: 00883585354634
• Device Type: Expansion Module
• Form Factor: Plug-in Module
• Data Transfer Rate: 10 Gbps
• Connectivity Technology: Wired
• CONDITION: New

• Part Number: J9827A
• UPC: 00888182309087
• Device Type: Network Management Device
• Connectivity Technology: Wired
• Form Factor: Plug-in Module
• CONDITION: New

• Part Number: J9827-61001
• UPC: 00888182309087
• Device Type: Network Management Device
• Connectivity Technology: Wired
• Form Factor: Plug-in Module
• Interfaces: 1 x Console - RJ-45 ¦ 1 x Management - RJ-45
• CONDITION: New

• Part Number: J9822A
• UPC: 00888182309032
• switching Capacity: 1920 Gbps
• Switch Fabric Speed: 2030 Gbps
• Input Voltage: 100 - 127 / 200 - 240 VAC, rated
• CONDITION: New

• Part Number: J9821A
• UPC: 00888182309025
• Device Type: Switch - Managed
• Enclosure Type: Rack Mountable 4U
• Subtype: Gigabit Ethernet
• CONDITION: New

• Part Number: J9821-61001
• UPC: 00888182309025
• Device Type: Switch Managed
• Subtype: Gigabit Ethernet
• Rack Units: 4U
• Power Supply Slots: 2
• CONDITION: New

• Part Number: J9733 61001
• UPC: 00000886334084
• Number Of Ports: 2
• Device Type: Stacking Module
• Transfer Rate: 48-Gigabit
• CONDITION: New

• Part Number: J9577
• UPC: 00000886334084
• Device Type : Network Stacking Module - 4 Ports
• Form Factor : Plug-in Module
• CONDITION :New

• Part Number: J9538A
• UPC: 00885631940877
• Device Type: Expansion Module - 8 Ports
• Form Factor: Plug-in Module
• Connectivity Technology: Wired
• Data Transfer Rate: 10 Gbps
• Data Link Protocol: 10 Gigabit Ethernet
• CONDITION: Refurbished

• Part Number: J8693A ABA
• UPC: 00882780457898
• Input frequency: 50 / 60 Hz
• Power supply PoE: 398 Watt
• Switch fabric speed: 153.6 Gbps
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J8693A
• UPC:00882780457928
• Switch fabric speed: 153.6 Gbps
• Switching capacity: 149.8 Gbps
• Input frequency: 50 / 60 Hz
• Form factor: 1U Height (Rack-mountable)
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J8693-69001
• UPC:00882780457898
• Switching capacity: 149.8 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Input voltage: 100-127 / 200-240 Volt AC
• Form factor: 1U Height (Rack-mountable)
• CONDITION: New

• Part Number: J8693 61401
• UPC: 00882780457928
• Switch fabric speed: 153.6 Gbps
• Switching capacity: 149.8 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Form factor: 1U Height (Rack-mountable)
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J8693-61301
• UPC: 00882780457928
• Switch fabric speed: 153.6 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Input voltage: 100-127 / 200-240 Volt AC
• Form factor: 1U Height (Rack-mountable)
• CONDITION: New

• Part Number: J8693-61001
• UPC: 00882780457898
• Switch fabric speed: 153.6 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Power supply PoE: 398 Watt
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

• Part Number: J9986-61001
• UPC: 00888182604243
• Form Factor: Plug-in module
• Interfaces: 24 x 1000Base-T (PoE+) - RJ-45
• Data Transfer Rate: 1 Gbps
• Ports: Gigabit Ethernet (PoE+) x 24
• CONDITION: New

• Part Number: J9726A
• UPC: 00886112321970
• Processor: 1 x ARM : 625 MHz
• RAM: 512 MB - SDRAM
• Subtype: Gigabit Ethernet
• Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP
• Switching capacity: 128 Gbps
• Flash Memory: 1 GB
• CONDITION: Refurbished

• Part Number: 699350-001
• UPC: 00880959390632
• Enclosure Type: Plug-in module
• Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
• Capacity: Network access groups: 128
• CONDITION: Refurbished

• Part Number: 691367-B21
• UPC: 00886112939700
• Enclosure Type: Plug-in module
• Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
• Capacity: Network access groups: 128
• CONDITION: Refurbished

• Part Number: 538113-B21
• UPC: 00884962022948
• Device Type: Switch - 16 ports
• Type: Plug-in module
• Ports: 16 x 10 Gigabit SFP+
• Interfaces: 16 x 10Gb Ethernet - SFP+ 1 x USB - management
• CONDITION: Refurbished

• Part Number: JL072A
• UPC: 00888793596586
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-TX
• CONDITION: New

• Part Number: J9729A
• Type: Aruba 2920 48G POE+ Switch
• Switching capacity: 176 Gb/s
• power: 370 W
• Dimensions: 4.39 x 44.25 x 33.6 cm (1.73 x 17.42 x 13.23 in)
• UPC: 00886112322595
• CONDITION: Refurbished

• Part Number: J9986A
• UPC: 00888182604243
• Interfaces: 24 x 1000Base-T (PoE+) - RJ-45
• Form Factor: Plug-in module
• Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
• CONDITION: New

• Part Number: JL075A
• UPC: 00888793596616
• Ports: 16 x 10 Gigabit SFP+
• RAM: 6 GB DDR3 SDRAM
• Flash Memory: 1 GB
• Switching capacity: 480 Gbps
• CONDITION: New

• Part Number: JL003A
• Processor: Freescale P2020 dual core 1.2 GHz 16 MB flash 1 GB SD Card
• Memory: 4 GB DDR3 SODIMM
• Dimension: 17.5 x 17.75 x 6.9 in
• UPC: 00888182604373
• Voltage: 110 - 127 / 200 - 240 VAC, rated
• CONDITION: New

• Part Number: J9728A
• Number of Ports: 48
• UPC: 00886112322359
• Port Speed: 100Mbps
• Power supply: 1
• Form Factor: 1U
• CONDITION: New

• Part Number: J9993A
• UPC: 00888182604311
• CONDITION: New
• Weight: 1.65 lb
• Dimensions: 10.3 x 8.13 x 1.75 in

• Part Number: J9773A
• Processor: ARM9E 800 MHz 128 MB flash Packet
• Memory: 256 MB DDR3 DIMM
• buffer size: 1.5 MB dynamically allocated
• Power Consumption: 247 W (maximum)
• Input Voltage: 100 - 127 / 200 - 240 VAC, rated
• Ports: (24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) fixed Gigabit Ethernet SFP ports
• Switching Capacity: 56 Gbps
• PoE Capability: 195 W
• UPC: 00886112457761
• CONDITION: New

• The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.

• Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.

• Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.

• Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.

• Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.   Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

• The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.

• Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.

• Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).

• Defend your IPv6 network with DHCPv6 Protection.

• Cost-effective, reliable and secure Aruba Layer 2 switch series for a better mobile-first experience.

• ACLs, EEE, traffic prioritization.

• 8-, 24-, and 48-port Gigabit or Fast Ethernet models.

• PoE+ models for voice, video and wireless.

• Supports Aruba ClearPass Policy Manager, AirWave and Central.

• Simple deployment with zero touch provisioning (ZTP).

• Six new advanced smart managed fixed-configuration lite Layer 3 Gigabit switches for affordable high-performance connectivity.

• Non-PoE and PoE+ 8-, 24- and 48-port models for deployment flexibility.

• Simple and consistent Web interface for easy switch configuration.

• Limited Lifetime Warranty

• The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

• The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

• These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

• The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

• The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

• These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

• The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

• The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

• These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

• The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

• The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

• These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

• The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

• The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

• These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

• The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

• The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

• These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

• The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

• The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.

• The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.

• Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.

• These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

• Some models are of a fan-less design, making them quiet for office deployments.

• The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

• The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.

• The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.

• Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.

• These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

• Some models are of a fan-less design, making them quiet for office deployments.

• The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

• The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.

• The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.

• Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.

• These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

• Some models are of a fan-less design, making them quiet for office deployments.

• The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage.

• All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days

• The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.

• Unmanaged switches offer a cost-effective small business solution for locations needing only basic Layer 2 switching in a flat single tier network.

• Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port.

• The HPE OfficeConnect 1420 Switch Series includes nine models, all with gigabit performance and a choice of key features including PoE+, Fiber and 10G uplink options.

• The 1420-24G-2SFP model with SFP uplinks is ideal where gigabit fiber is required, while the 1420-24G-2SFP+ 10G Uplink model with SFP+ uplinks is available where 10GbE is needed.

• Power over Ethernet (PoE+) models deliver greater efficiency for powering IP phones, wireless access points, or video surveillance cameras without the cost of additional cabling.

• All HPE OfficeConnect 1420 Switch Series models are fanless for silent operation in office settings and include internal power supplies.

• Units can be deployed for desktop operation or can be rack mounted.

• The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage.

• All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days

• The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.

• Unmanaged switches offer a cost-effective small business solution for locations needing only basic Layer 2 switching in a flat single tier network.

• Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port.

• The HPE OfficeConnect 1420 Switch Series includes nine models, all with gigabit performance and a choice of key features including PoE+, Fiber and 10G uplink options.

• The 1420-24G-2SFP model with SFP uplinks is ideal where gigabit fiber is required, while the 1420-24G-2SFP+ 10G Uplink model with SFP+ uplinks is available where 10GbE is needed.

• Power over Ethernet (PoE+) models deliver greater efficiency for powering IP phones, wireless access points, or video surveillance cameras without the cost of additional cabling.

• All HPE OfficeConnect 1420 Switch Series models are fanless for silent operation in office settings and include internal power supplies.

• Units can be deployed for desktop operation or can be rack mounted.

• The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage.

• All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days

• The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.

• Unmanaged switches offer a cost-effective small business solution for locations needing only basic Layer 2 switching in a flat single tier network.

• Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port.

• Cost-effective Ownership for Now and into the Future:

• The HPE OfficeConnect 1420 Switch Series offers a cost-effective upgrade path to next-generation 10GbE networks to reduce performance bottlenecks

• The switch series includes PoE+ options to power IP devices without the cost of additional cabling for power.

• Green features include energy-efficient Ethernet IEEE 802.3az, auto-power down mode on idle ports, and power savings on short distance cables for low power consumption.

• This series comes with a Limited Lifetime Warranty providing next business day advance hardware replacement shipment in most countries, 24x7 phone support available for the first 90 days, and electronic and business hours phone support for the entire warranty period.
