Key Features

• Brand: Promise

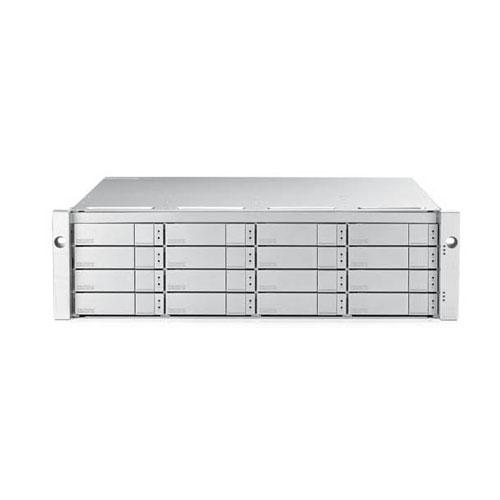

• Product: Promise VTrak N1616 3U Storage
• Form Factor: 3U
• Drive Support: 3.5" & 2.5 SATA 6Gb/s HDD/SSD, U.2 NVMe
• Processor: Intel CPU i7-8700. 3.2GHz. 12MB Cache.65W 6 Cores
• Memory: Default 64GB (Maximum: 128GB)
• Max HDDs: 16
• Memory Slot: 4 x Long-DIMM DDR4
• Drive Bays: 16 x 3.5-inch
• Boost: PROMISE TierBoost (U.2 NVMe/SSD/HDD Tiering)
• RAID Level: RAID 0, 1, 5, 6, 10, 50, 60
• Hot Swap: Yes
• Supported OS: Windows 10 and macOS 10.15 above
• Management Tool: WebPAM Insight
• Network Protocol: CIFS / NFS / FTP / WebDAV
• Max Storage Capacity: 18TB x 16
• Concurrent CIFS Session: 256
• Throughput: With 10 SSD TierBoost
• Gigabit (RJ45): 2
• LAN Port: 10G Base-T : 8-Port / 10G SFP+ : 8-Port / 25G SFP28 : 4-Port
• USB Port: USB2.0 x 2 (Front) & USB3.2 x 4 (Back)
• Graphic Port: HDMI x 1; VGA x 1
• Serial Port: Yes
• Dimension: 131mm x 447 mm x 503mm
• Weight: 34Kg (with HDD)
• AC Input(550W x 2) 100 ~ 240V AC, 47 ~ 63Hz
• Power Consumption: 110V, Power Consumption: 306W 230V, Power Cosnumption: 296W
• fan: 4500RPM.12V
• Warranty: 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.
• Support: 24/7 Promise eSupport Portal (support.promise.com), optional 24/7 phone and email support available
