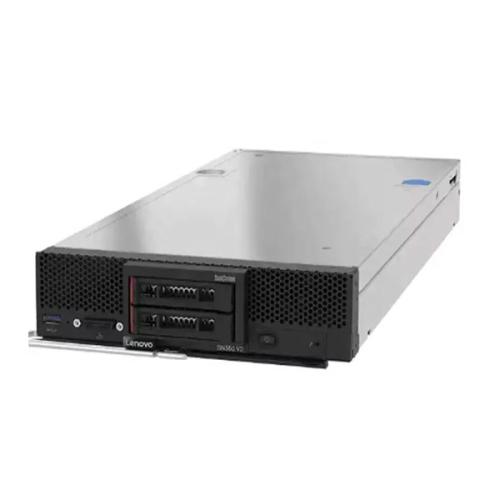

Lenovo ThinkSystem SN550 Blade Server
Lenovo ThinkSystem SN550 Blade Server - PRICE | REVIEW | SPECIFICATION | HYDERABAD | CHENNAI
- Brand: Lenovo
- MODEL: LENOVO THINKSYSTEM SN550 BLADE SERVER
- Form Factor: Standard width blade for Flex System Chassis
- Processor: Up to 2 second-generation Intel Xeon Processor Scalable family up to 165W
- Memory: Up to 3TB in 24x slots, using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4; supports Intel Optane DC Persistent Memory
- Expansion Slots: Up to 2x PCIe x16 mezzanine adapters
- Internal Storage: Up to 2x 2.5 bays supporting SAS/SATA HDDs/SSDs, or NVMe/U.2 SSDs; plus 1x or 2x (mirrored) M.2 (SATA) fixed boot drives (optional RAID 1)
- Network Interface: 4x 10GbE LOM with fabric connector; or 2x 10GbE, 4x 10GbE, converged network mezzanine adapters, or 4x 25GbE or 2x 50GbE network mezzanine adapters
- Power Supply: Contained in the chassis
- Security and Availability Features: Lenovo ThinkShield, hot-swap 2.5" SAS/SATA/U.2 drives; operating temperature up to 40°C (with limitations)
- RAID Support: SW RAID standard. (6Gbps SATA); optional HW basic RAID (12Gbps SAS/SATA); optional HW advanced RAID (12Gbps SAS/SATA 2GB flash-backed cache)
- Systems Management: XClarity Controller, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager
- OSes Supported: Microsoft Windows Server, Red Hat, SUSE, VMware vSphere. Visit lenovopress.com/osig for details.
- Warranty: 3 Years Onsite Warranty, next business day 9x5; optional service upgrades.
Optimized for virtualization, performance, and networking
- Simplified deployment and orchestration
- Increased density with flexible growth
- Automated power management
- XClarity systems management
Features
Highlights
- Increased density, improved management, and energy efficiency reduces operating costs vs. 1U rack servers and older blade servers
- Unsurpassed two socket memory capacity, featuring up to 3TB† of TruDDR4 memory, to enable more VDI users or VMs per node
- Deploy new capabilities for virtualization, performance, and industry-leading networking flexibility
- Ideal platform for those migrating from Lenovo BladeCenter and competitive blade systems, as well as users needing more computing power than 1P and older 2P blades can offer
Infrastructure made simple
The Flex System Enterprise Chassis now supports two new blades, incorporating powerful Intel Xeon processor Scalable family CPUs: the two-processor ThinkSystem SN550 and the four-processor ThinkSystem SN850. The chassis was engineered to support high-speed networking and multiple generations of Intel Xeon processors. With twice the memory of the previous generation server, increased memory bandwidth, and faster and larger storage capacity, the SN550 is powerful enough for most key data center workloads, such as cloud, server virtualization, departmental databases, and virtual desktop infrastructure (VDI), as well as consolidating older servers onto a single blade. In addition, the SN550 is compatible with your current Flex System Enterprise Chassis, protecting your investment in your chassis infrastructure.
